Horn: Service and Repair

CS and CD

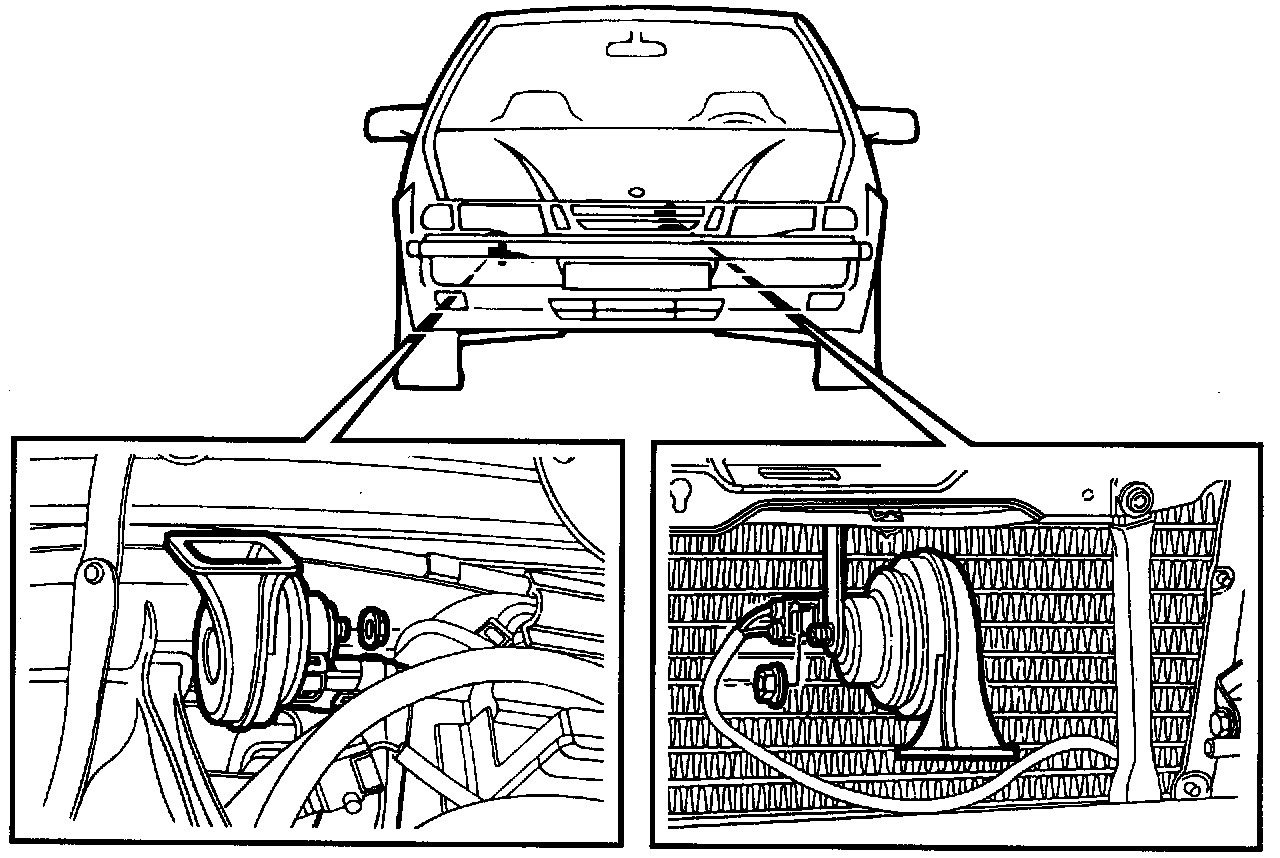

To Remove the horn and grille
1 Remove the radiator grille.
2 Unplug the horn connector.
3 Unscrew the horn from its bracket.

To Install
1 Install the horn with its opening pointing downwards.
2 Plug in the connector.
3 Check the operation of the horn and reinstall all parts that have been removed.

To Remove the horn and spoiler
1 Remove the lower spoiler section on the right-hand side.
2 Unplug the horn connector.
3 Unscrew the horn from its bracket.

To Install
Install in reverse order.
Always check the operation of the horn after installation it back in place.
