Replacement of Rear Light Cluster

To Remove, 5-d (CC) and CD
1 Disconnect the negative battery cable.

Important : Do not disconnect the battery cable while the engine is running as this could seriously damage the generator (alternator).

2 Remove the protective cover.
Unplug the connector.
3 Remove the four light cluster retaining nuts.
4 Lift out the light cluster.

To Install
Install in reverse order.






To Remove, CS

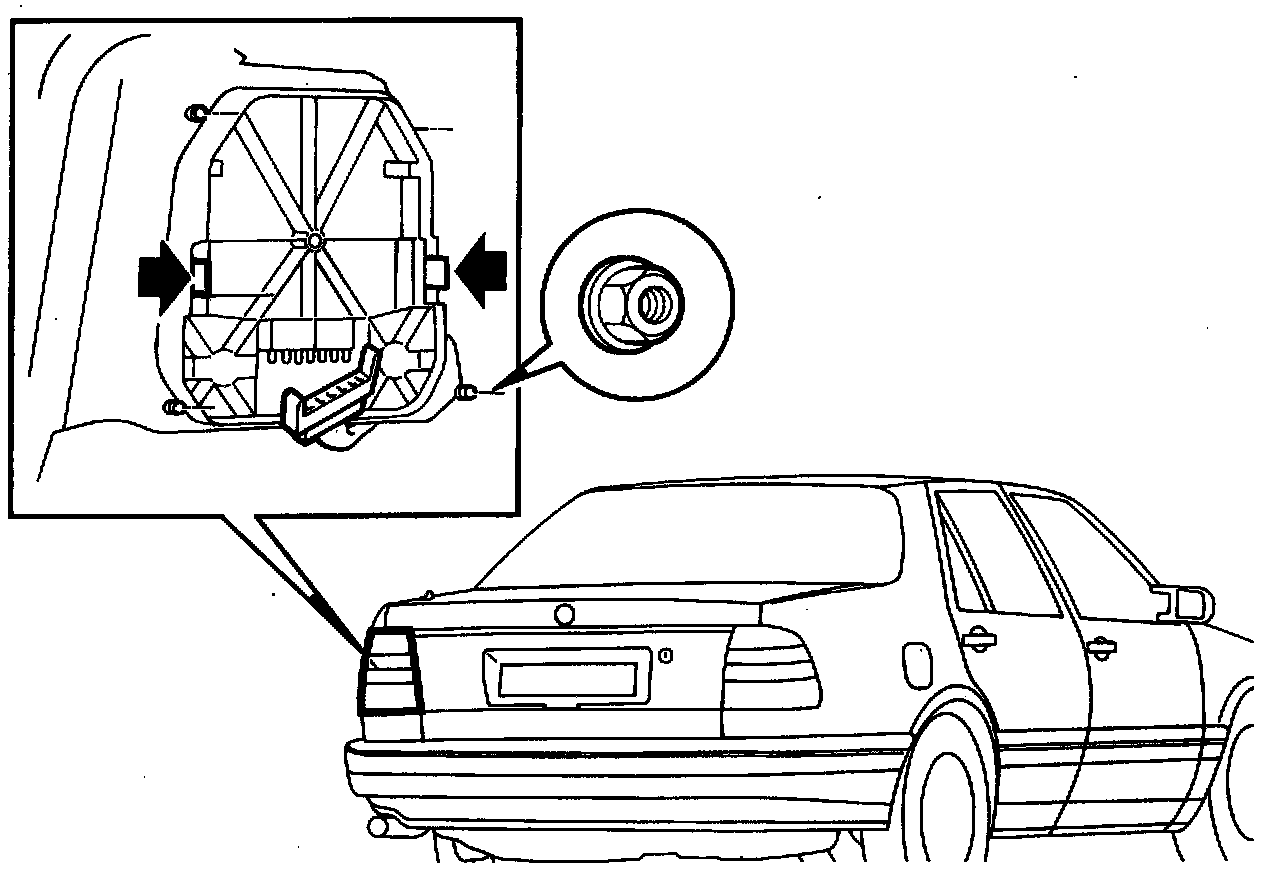

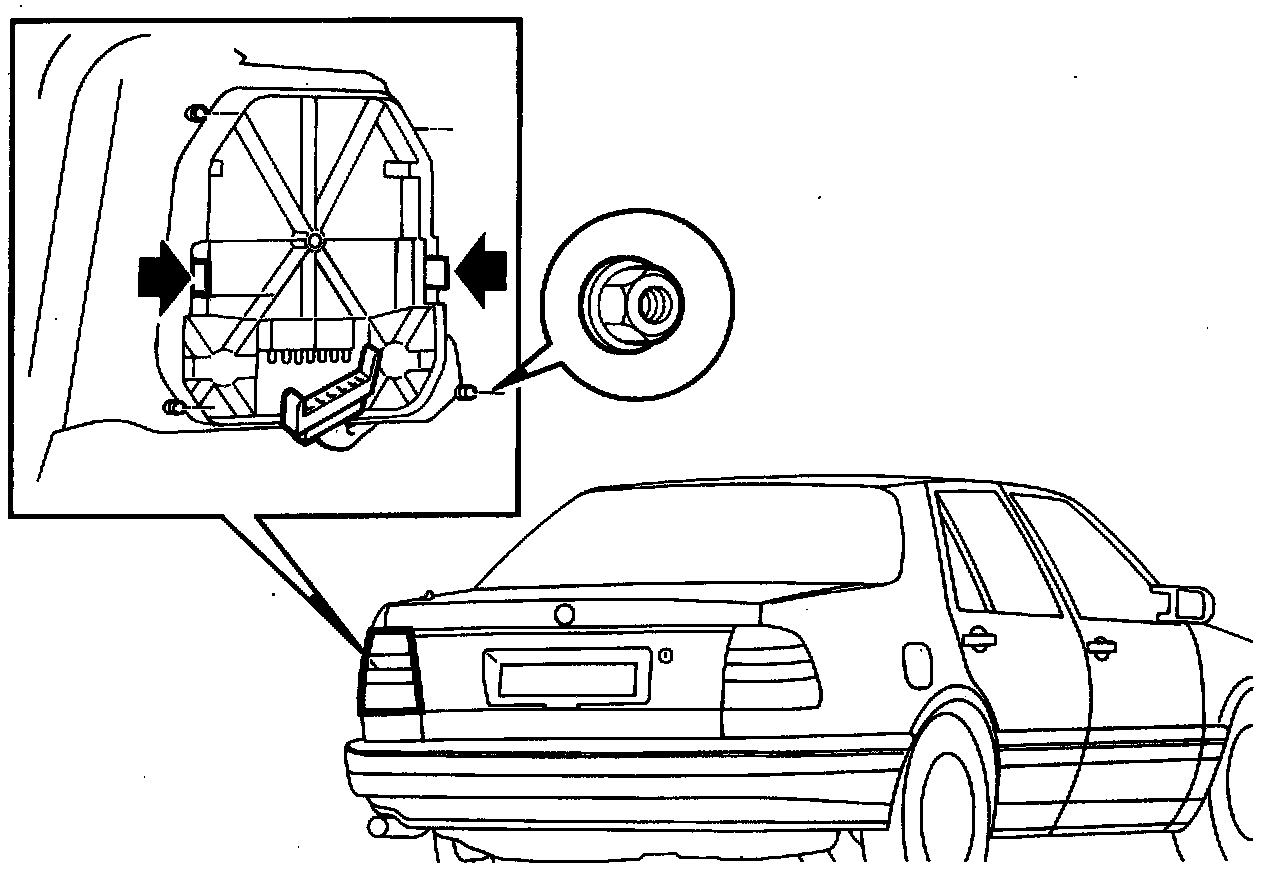

1 Remove the screw clip at the rear edge of the side trim and fold down the trim.
2 Press the plastic clips inwards and remove the bulb holder card.
3 Remove the lamp body (4 nuts)

To Install
Install in reverse order.
