Dimensions

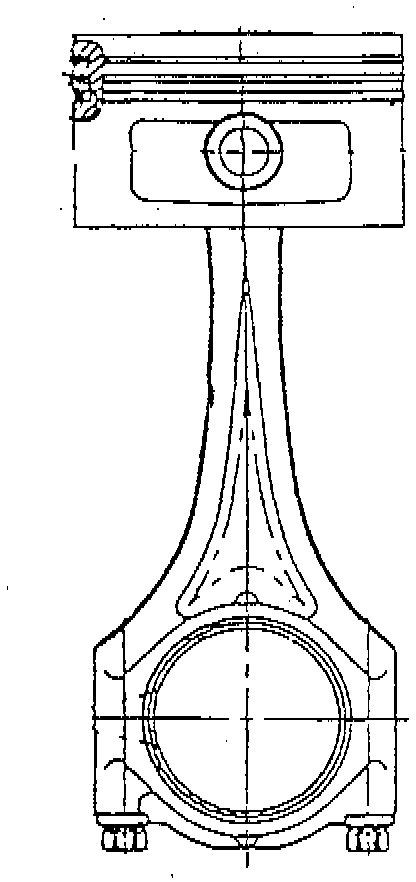

DIMENSIONS:
Big End Diameter: 52.000 - 52.012 mm
Length: 148 mm
Maximum Weight Difference Between Connecting Rods In The Same Engine: 8 grams

TORQUE:
Cap Bolts:
First Step: 35 Nm (26 ft. lbs.)
Second Step: 45°
Third Step: 15°
