G14

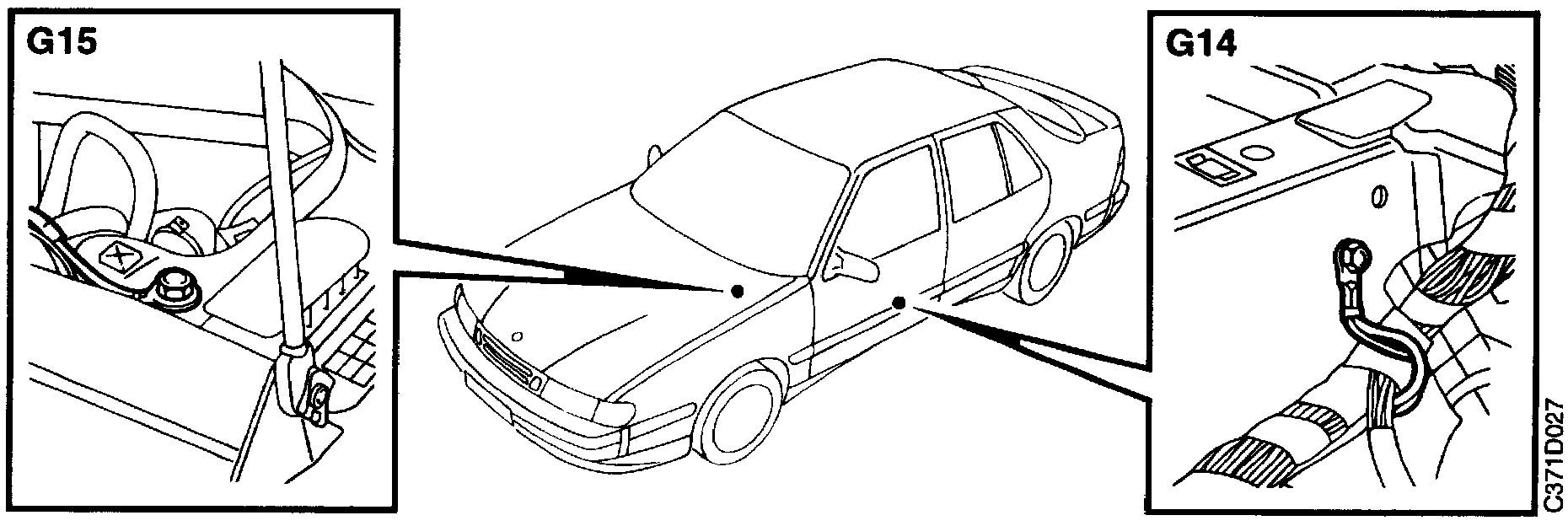

Grounding Points G14, G15:

Grounding point G14 is located in the left-hand seat member under the carpet on the left-hand side. The following components are connected to it:
64D Heating pad, driver1s seat (LHD)
64P Heating pad, passenger's seat (RHD)
70D Seat-belt switch, driver (LHD)
70P Seat-belt switch, passenger (RHD)
245 Transmission range switch, automatic transmission
252D Switch, heating pad, driver's seat (LHD)
252P Switch, heating pad, passenger's seat (RHD)
254D Temperature sensor, heating pad, driver's seat (LHD)
254P Temperature sensor, heating pad, passenger's seat (RHD)
357Dk Control module, electrically adjustable seat with memory, driver (LHD)
386 Switches, electric window lifts, electrically operated sunroof
446Pa Relay, electrically adjustable seat, passenger (RHD)
