G7

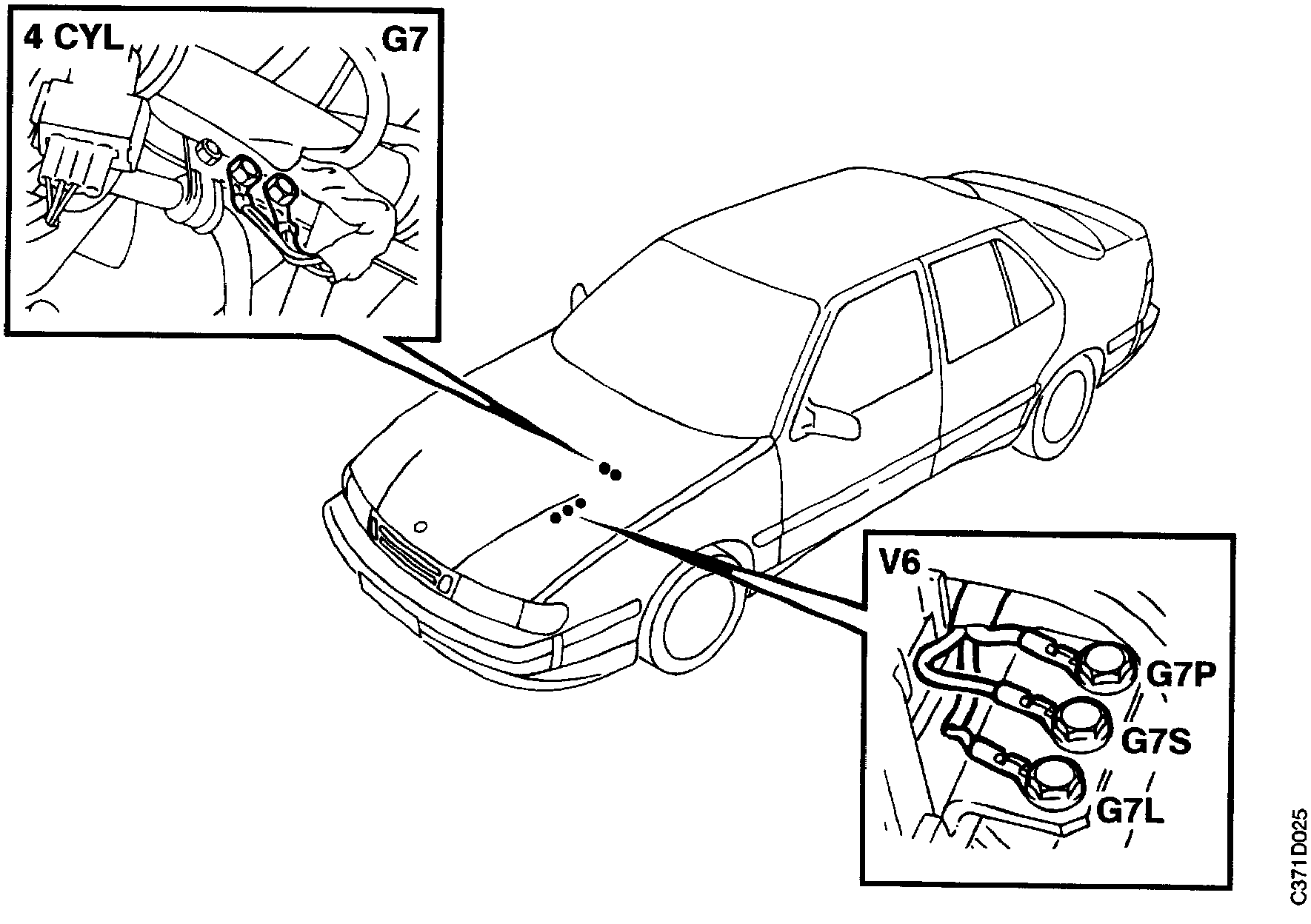

Grounding Points G7:

Grounding point G7 is split up into two or three grounding points as shown.
The following components are connected to these grounding points
205 Mass air flow sensor
271 Oxygen sensor preheating element
346 Ignition discharge module, DI
430 Control module, Saab Trionic
444 Saab Trionic test socket (for works use only)
510 Control module, Motronic M2.8.1
510 Control module, Motronic M5.2
510 Control module, Saab Trionic OBDII
