Wiper Switch: Service and Repair

To Remove
1 Disconnect the negative battery cable.

Important :
Do not disconnect the battery cable while the engine is running as this could seriously damage the generator (alternator).

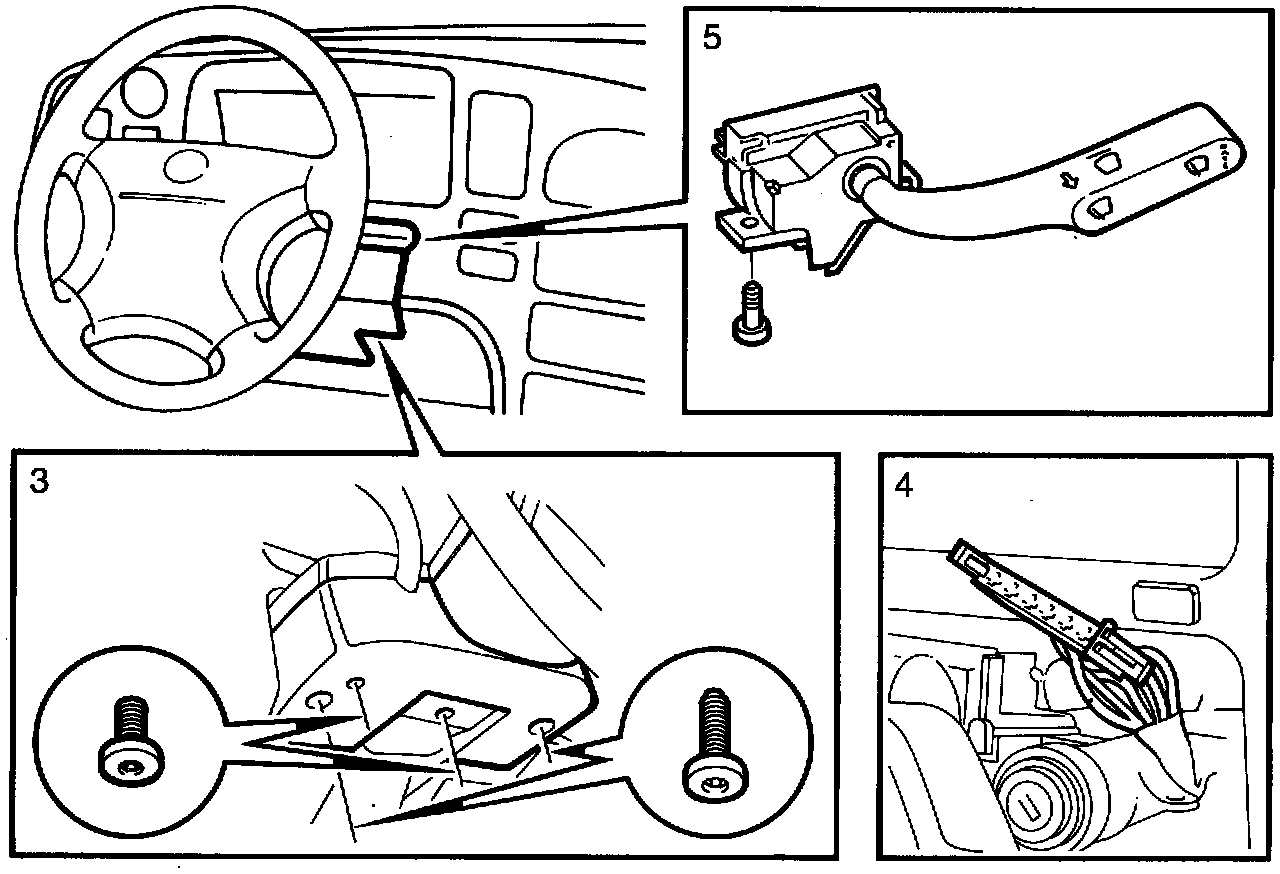

2 Pull out the steering wheel as far as it will go.
3 Remove the steering column bearing bracket cowls (4 screws).
4 Unplug the connector.
5 Undo the wiper stalk switch screws.
6 Withdraw the wiper stalk switch.

To Install
Install in reverse order.
