Antenna: Service and Repair

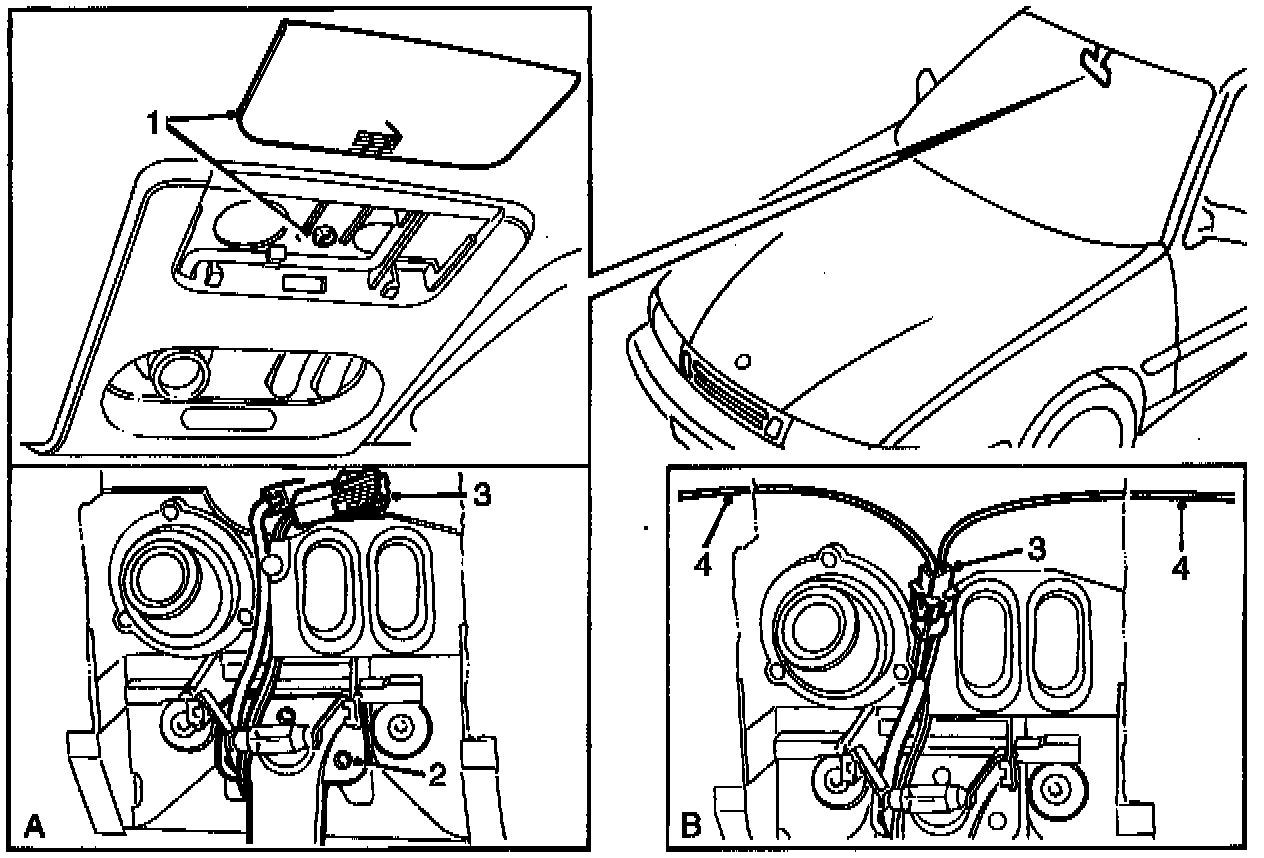

A Aerial built into interior rearview mirror (JP)
1 Remove the roof console's cover panel.
2 Remove the rearview mirror as shown.
3 Unplug the connectors.
4 Install in reverse order.

B Dipole aerial
1 Remove the roof console's cover panel.
2 Remove the sun visor retaining clips.
3 Unplug the connector.
4 Remove the aerial (remember that the new aerial is installed in the same way).
5 Install in reverse order.
