Cellular Phone

Mobile Telephone Installation Pre-wiring:

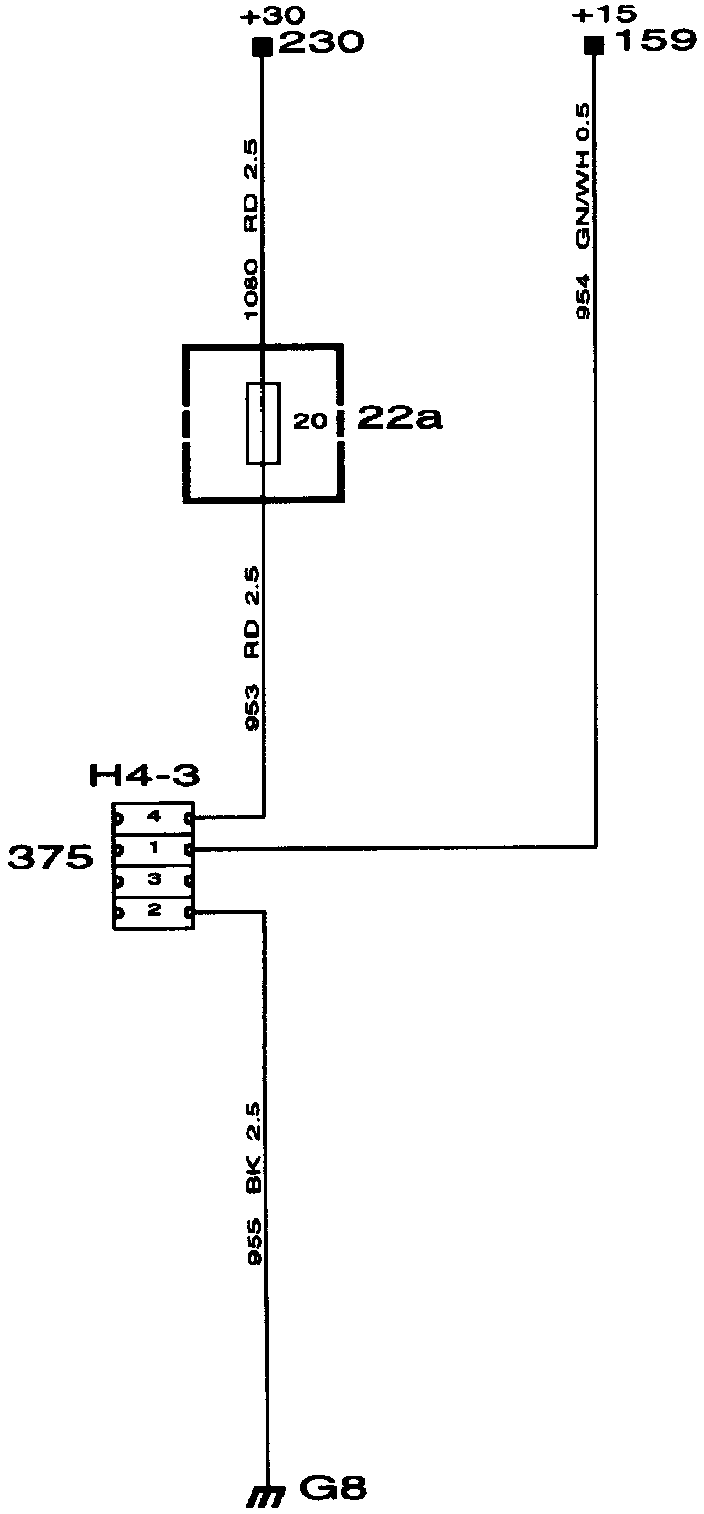

WIRING DIAGRAM

Mobile Telephone Installation Pre-wiring: Component Location:

COMPONENT LOCATION VIEW

Mobile Telephone Installation Pre-wiring: Component ID:

COMPONENT ID
22a Main fuse board behind the access panel in the glove box.
159 Distribution terminal (+15 circuit), in main fuse box behind the glove box.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
375 Mobile telephone connector (4-pin)
(H4-3) under the dashboard to the right behind the radio compartments.

Grounding Points
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.

DESCRIPTION OF OPERATION
Cars for certain markets are pre-wired for the installation of a mobile telephone, for instance. Current from fuse 20 (+30 circuit) and fuse 13 (+15 circuit) is supplied via a special 4-pin connector, which also has a ground connection.

IMPORTANT
1. When fitting a mobile telephone, etc., the lead from the +15 circuit cannot be used as a power supply lead and must only be used for operating relays.

2. When using a mobile telephone or other type of transmitter inside the car, it must always be connected to an external aerial.

FAULT DIAGNOSIS HINTS
1. Check that fuse 20 is intact and supplied with current.
2. Check that current is supplied to pin 4 of 4-pin connector 372 (H4-3).
3. Check that fuse 13 is intact and supplied with current.
4. Check that current is supplied to pin 1 of 4-pin connector 375 (H4-3).
