Trunk / Liftgate
1u�<Electrically Operated Tailgate Release:

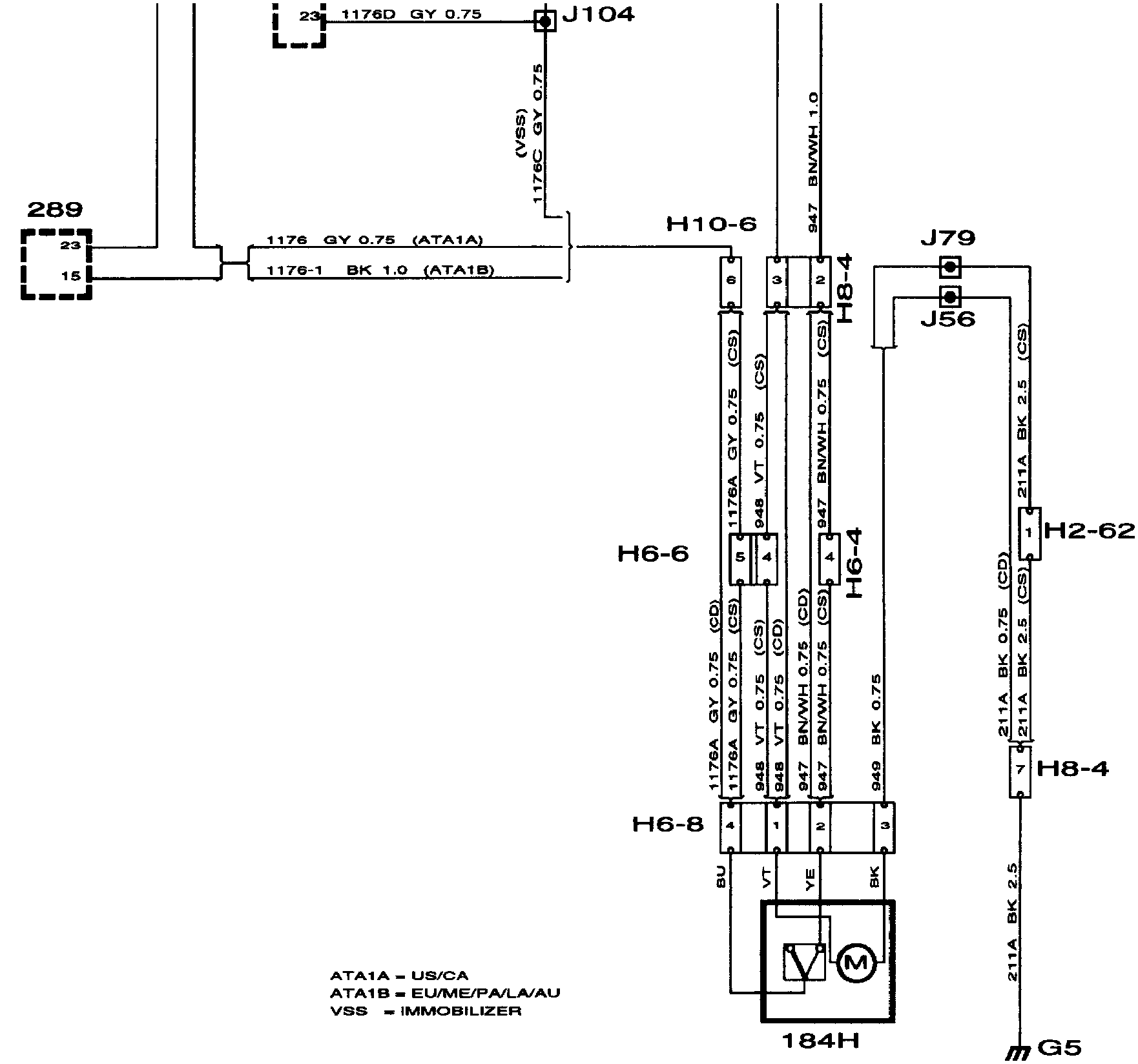

WIRING DIAGRAM

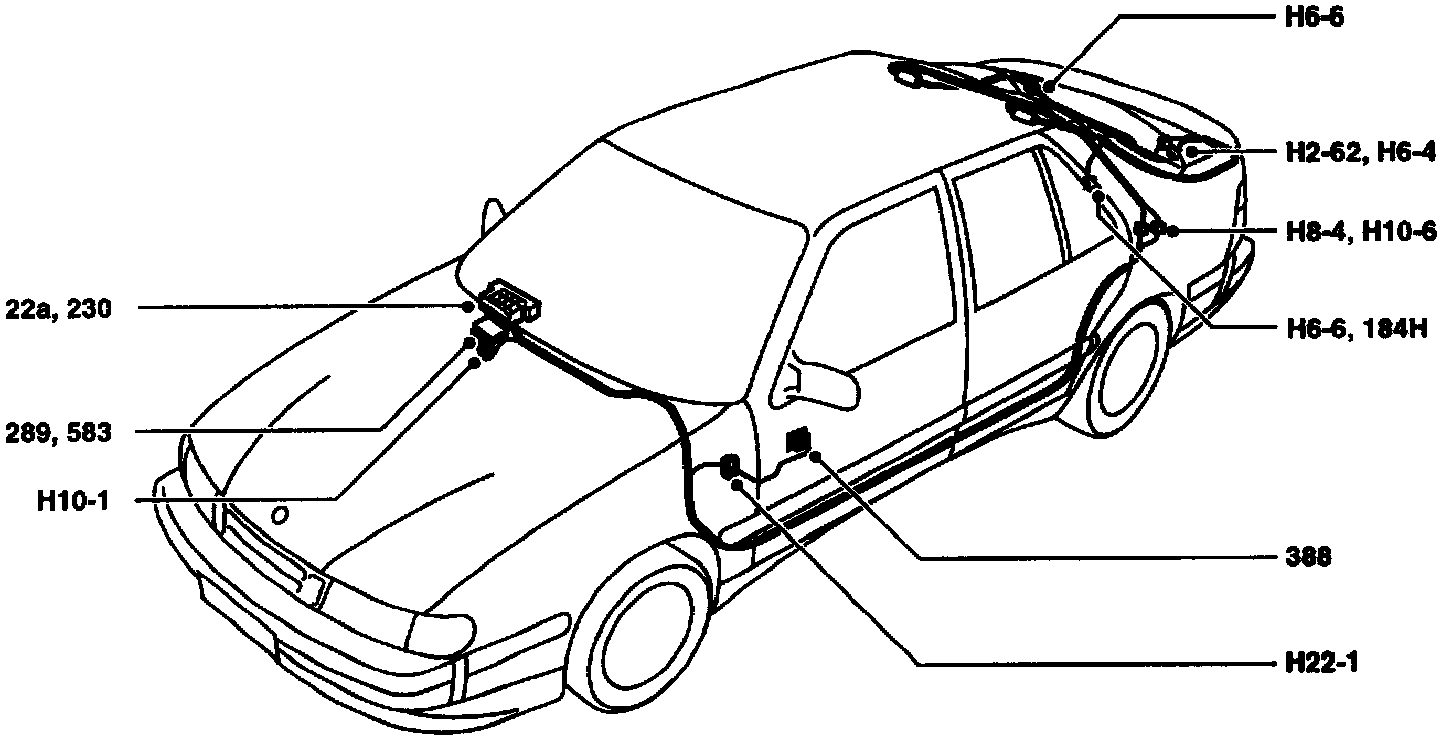

Electrically Operated Tailgate Release: Component Location:
COMPONENT LOCATION VIEW
Electrically Operated Tailgate Release: Component ID:
COMPONENT ID
22a Main fuse board behind the access panel in the glove box.
184H Central locking motor, tailgate, in the tailgate.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
289 Control module, anti-theft alarm, on the right-hand side under the dashboard behind the knee shield.
388 Switch, electrically operated tailgate release, on the drivers door.
583 Control module, antitheft alarm with immobilizer, under the dashboard on the right-hand side behind the knee shield.
2-Pin Connector
H2-62 In the tailgate on the left.
6-Pin Connectors
H6-4 In the tailgate to the left beside the rear window.
H6-6 To the right of the rear window wiper motor.
H6-8 In the tailgate next to motor 188.
8-Pin Connector
H8-4 By the left-hand rear wheel housing.
10-Pin Connector
H10-6 Beside the left-hand rear wheel housing.
22-Pin Connectors
H22-1 Behind the cable entry in the left-hand A pillar.
H22-2 Behind the cable entry in the right-hand A pillar.
25-Pin Connector
H25-1 Under the glove box lid beside the anti-theft alarm control module.
Grounding Points
G5 Under the rear seat on the left-hand side.
DESCRIPTION OF OPERATION
The tailgate can be opened either by means of switch 388 on the driver's door or by using the key. When the tailgate is opened by means of switch 388, current (+30 circuit) is supplied to motor 184H from the switch via fuse 17.
A spring in motor 184H ensures that it always returns to the locked position. To prevent the motor from recoiling on its return, it is braked by being grounded on both sides.
FAULT DIAGNOSIS HINTS
1. Check that pin 2 of switch 388 is supplied with current.
2. Check fuse 17.
3. Check the connectors, wiring harness and ground connections.
