Cooling System: Locations

Cooling System With 2 Speed Radiator Fan: Component Location:

COMPONENT LOCATION VIEW

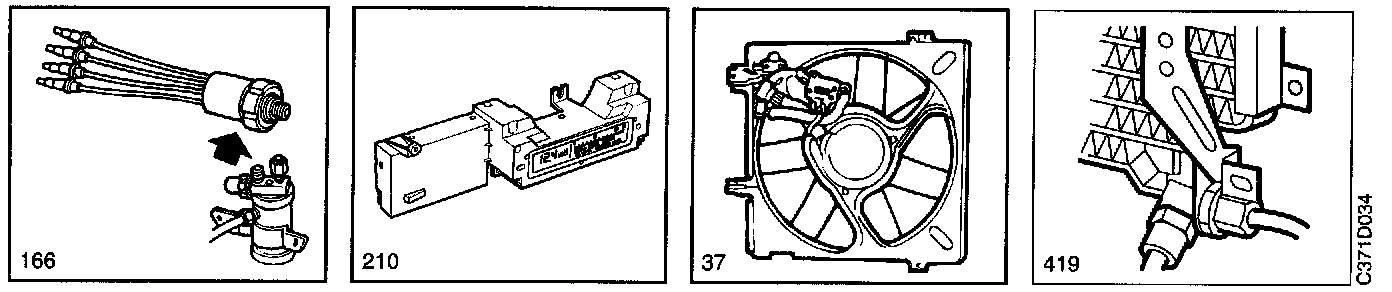

Cooling System With 2 Speed Radiator Fan : Component ID:

COMPONENT ID
1 Battery in the engine bay.
37 Radiator fan motor on left-hand side of radiator.
75 Distribution block, battery, on the battery tray.
81 2-speed radiator fan relay, in main fuse box in front of battery.
155 Radiator fan relay, in main fuse box in front of battery.
159 Distribution terminal (+15 circuit), in main fuse box behind the glove box.
166 Pressure switch for the radiator fan, on the receiver in front of the right-hand wheel housing.
210 EDU, in the main instrument display panel.
231 Distribution terminal (+54 circuit), in main fuse box behind the glove box.
342a Fuse board in main fuse box in front of battery.
367 Resistor beside the radiator fan motor.
419 A/C cooling pressure switch (ME), under the radiator on the right-hand side.
433 Relay for disengagement of radiator fan, in main fuse box in front of battery.

2-Pin Connectors
H2-4 Adjacent to the radiator fan motor.
H2-85 Adjacent to the radiator fan motor.

3-Pin Connector
H3-23 Under the front bumper behind the right-hand fog light.

4-Pin Connector
H4-12 By the right-hand wheel housing beside the receiver.

10-Pin Connectors
H10-15 Behind the left-hand headlamp.
H10-25 Behind the left-hand headlamp.

Grounding Points
G30 Grounding point, left-hand structural member, behind the left-hand headlamp.
G31 Grounding point, right-hand structural member, behind the right-hand headlamp.
