Key Reminder Switch: Locations

Seat Belt Warning With/Without Buzzer: Component Location:

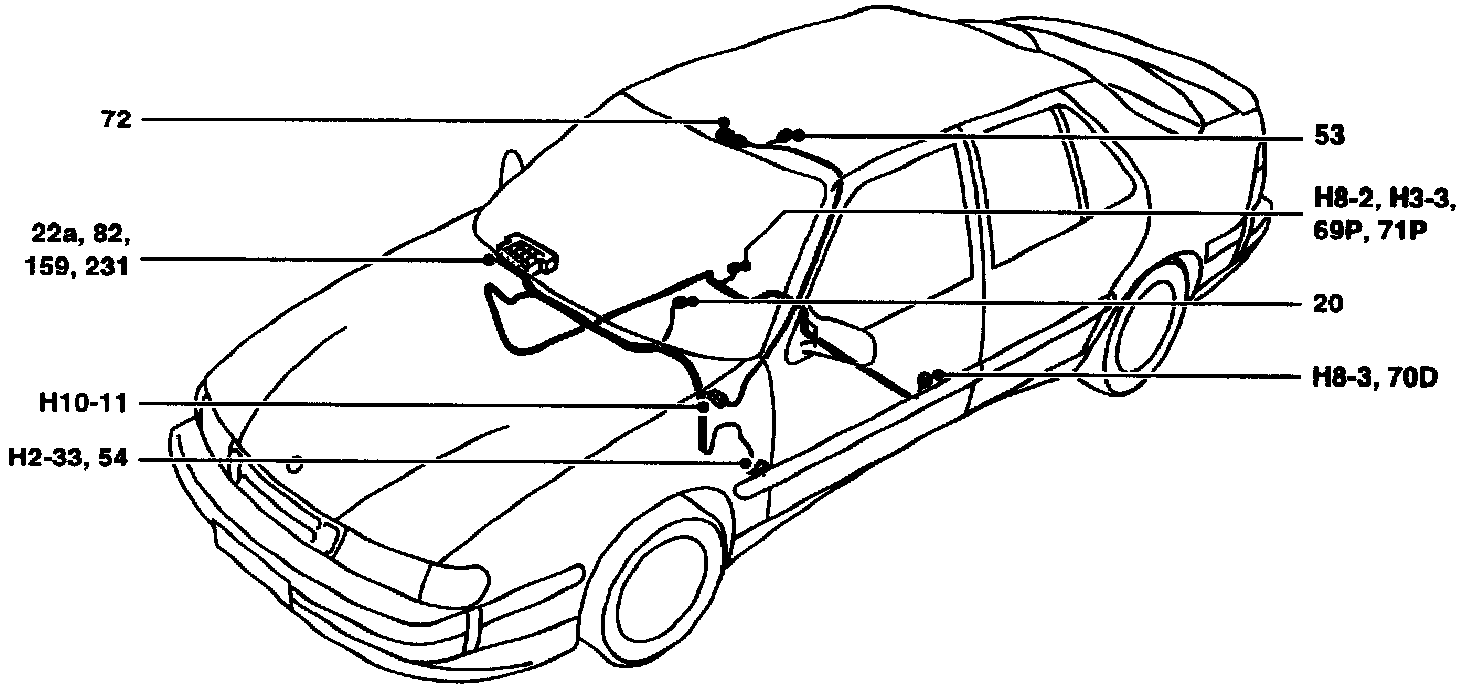

COMPONENT LOCATION VIEW

Seat Belt Warning With/Without Buzzer: Component ID:

COMPONENT ID
20 Ignition switch to the right of the steering column.
22a Fuse board behind the access panel in the glove box.
53 Switch, interior lighting, in centre console by the gear lever.

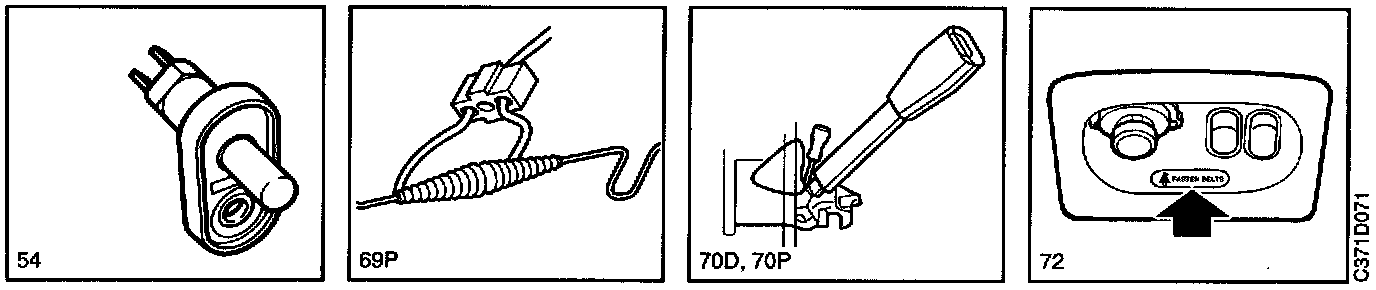

54 Door switch in each door pillar.
69P Seat switch, passenger seat-belt warning lamp, under the passenger's seat.
70D Seat-belt switch, driver, between the driver and passenger seats.
70P Seat-belt switch, passenger, between the driver and passenger seats.
72 Seat-belt warning lamp, in the roof console above the interior rear-view mirror.
82 Warning relay, seat-belt/ignition key, in the main fuse box behind the glove box.
159 Distribution terminal (+15 circuit), in main fuse box behind the glove box.
231 Distribution terminal (+54 circuit), in main fuse box behind the glove box.

2-Pin Connector
H2-33 In the left-hand A pillar.

3-Pin Connector
H3-3 Under the right-hand seat.

8-Pin Connectors
H8-2 Under the right-hand seat.
H8-3 Under the left-hand seat.

10-Pin Connector
H10-11 On the far left under the dashboard, behind the knee shield.

Grounding Points
G6 Grounding point, negative distribution terminal, in main fuse box 22B behind the glove box.
G14 Grounding point, left-hand seat member, under the left-hand seat.
G24 Grounding point, right-hand seat member, under the right-hand seat.
