Campaign - Positive Battery Cable Replacement: Overview
MI No. 371-1772 ed. 2PI No.
Date January 1998
Distr. US/CA
9000
Customer Satisfaction Campaign 454: Replacement of Positive Battery Cable
Background
High resistance within the positive battery cable can cause a no-start condition.
A new battery cable with improved terminal connections has been developed and should be installed on all 9000 models within the affected VIN Serial No. flange.
Cars Affected
*1995-97 9000 models within VIN Serial number ranges: S1000001-V1020757*
Owner Notification
As much as possible, owners of affected vehicles will be notified by Saab Cars USA, Inc. All cars in your inventory must be rectified prior to retail deliveries.
A VIN Status List will be supplied to you prior to any owner notification. Owners known to Saab will be identified on this list. If you do not receive a Status List, this is an indication that no affected vehicles have been sold to/by your dealership.
Please check your DCS On-Line Recall/Campaign inquiry to check for open campaigns.
Material
49 46 950 Positive cable for cars with 4-cylinder engine
49 42 413 Positive cable harness for cars with V6 engine
Special tools required
Numeral 6 metal stamp: 02 97 913
Order this special tool directly from Kent-Moore at 1-800-345-2233.
Warranty/Time Information:
When submitting a claim for Campaign 454, the following information must be included on the claim:
FAILED OBJECT: 10454
FAULT/REASON: 61
LOCATION: 0
WARRANTY TYPE (US ONLY): 02
REPAIR/ACTION: 01
LABOR OPERATION/TIME:
*10454 0.6 HR. 4 CYL.
10400 1.3HR. V6*
This time includes 0.2 administration time.
THE FOLLOWING INFORMATION MUST BE ADDED TO YOUR DCS TABLES:
FAILED PART TABLE:
FAILED OBJECT: 10454
DESCRIPTION: REPL OF POSITIVE BATTERY CABLE.
MODEL CODES: C
OPERATION NUMBER TABLE:
LABOR OPERATION: 10454
*DESCRIPTION: REPL OF POSITIVE BATT
CABLE 4 CYL.*
TRANS.TYPE: B
*ENGINE TYPE: 1*
DIAGNOSTIC CODE REQD: 0
9000 ONLY
HOURS: 0.6
BEGIN YR.: 95
END YR.: 97
*OPERATION NUMBER TABLE:
LABOR OPERATION: 10400
DESCRIPTION: REPL OF POSITIVE BATT
CABLE V6
TRANS. TYPE: B
ENGINE TYPE: 0
DIAGNOSTIC CODE REQD: 0
9000 ONLY
HOURS: 1.3
BEGIN YR.: 95
END YR.: 97*
Background
High resistance within the positive battery cable can cause a no-start condition.
A new battery cable with improved terminal connections has been developed and should be installed on all 9000 models within the affected VIN Serial No. flange.
Cars affected
Saab 9000 M1995 - 97 within VIN Serial number ranges: S1000001-V1020757.
Owner Notification
As much as possible, owners of affected vehicles will be notified by Saab Cars USA, Inc. All cars in your inventory must be rectified prior to retail deliveries.
A VIN Status List will be supplied to you prior to any owner notification. Owners known to Saab will be identified on this list. If you do not receive a Status List, this is an indication that no affected vehicles have been sold to/by your dealership.
Please check your DCS On-Line Recall/Campaign inquiry to check for open campaigns.

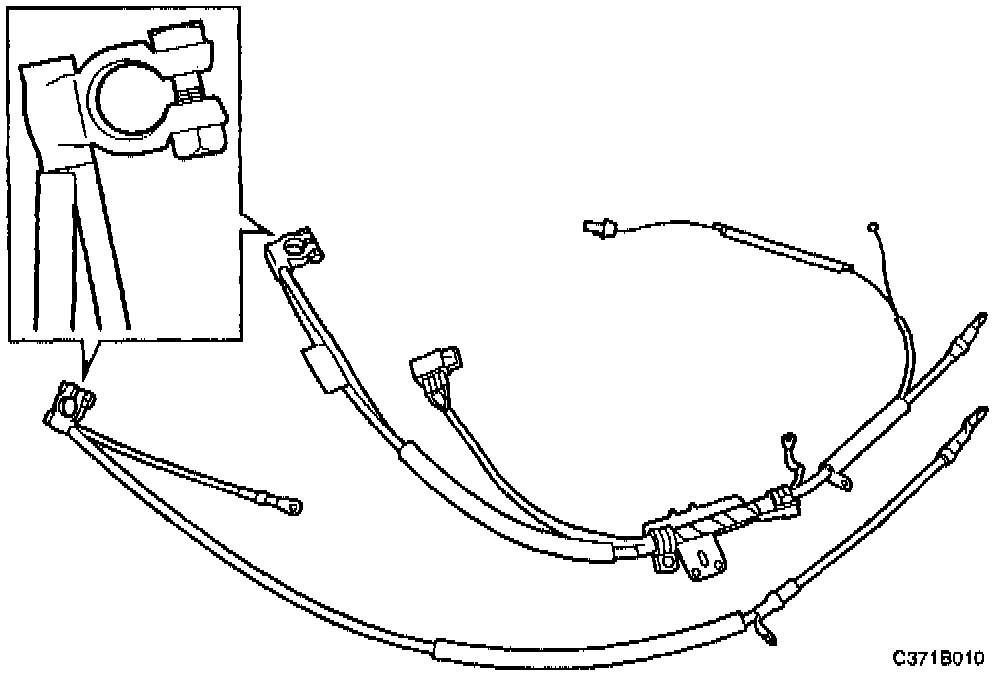

Material
49 46 950 (CA=30570931) Positive cable for cars with 4-cylinder engine 49 42 413 (CA=30569181) Positive cable harness for cars with V6 engine
An initial parts order of cable 49 46 950 and cable 49 42 413 equal to 50% of the vehicles wholesaled to your dealership will be shipped automatically on or about December 8, 1997. If our records indicate that you have not received any affected vehicles, no automatic parts shipment will take place. Order additional parts as needed using DCS ordering procedures.
Special tools required:
Numeral 8 metal stamp: 02 97 713
Order this special tool directly from Kent-Moore at 1-800-345-2233.
Warranty/time information
See separate information.
Stamping the campaign plate
After the car has been modified, mark the campaign plate in box A4 using a numeral "8" (Saab Special Tool P/N 0297713).
