Engine, Tires - Revisions to Service Manual
SI No. 010-1808PI No.
Date: December 1997
Distr. all
9000
Revisions to Service Manuals
The following information should be amended to the service manuals.
0 News M1998
M1997- is written on the cover by mistake. It should read M1998.

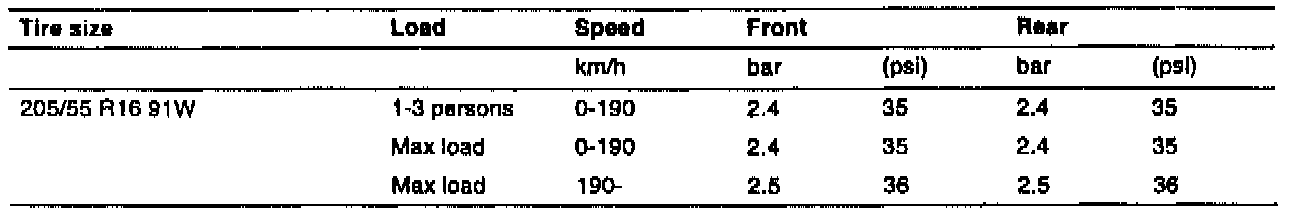

Recommended tire pressures, cold tires
The tire pressure can be lowered by 0.1 bar for each passenger. Max load = 5 persons.
0:2 Technical data, M1985-96
Engine 4-cyl/Engine, lubricating system
The text under the heading "Oil grade" should read as follows:
Saab Turbo engine oil or engine oil complying with API-SG/SH and ACEA A2-96/A3-96 including the expiring CCMC G4/G5."
2:1 Basic engine, M1985-89
Technical data, lubricating system
The text under the heading "Oil grade" should read as follows:
"Saab Turbo engine oil or engine oil complying with API-SG/SH and ACEA A2-961A3-96 Including the expiring CCMC G41G5."
The text under the heading "Viscosity" should be supplemented with the following:
"At temperatures constantly exceeding +15°C (+59°F), use 15W50 or 20W50."
