Hood - Will Not Open: Overview
SI No. 801-1939PI No.
Date
April 1998
Distr.
all
9000

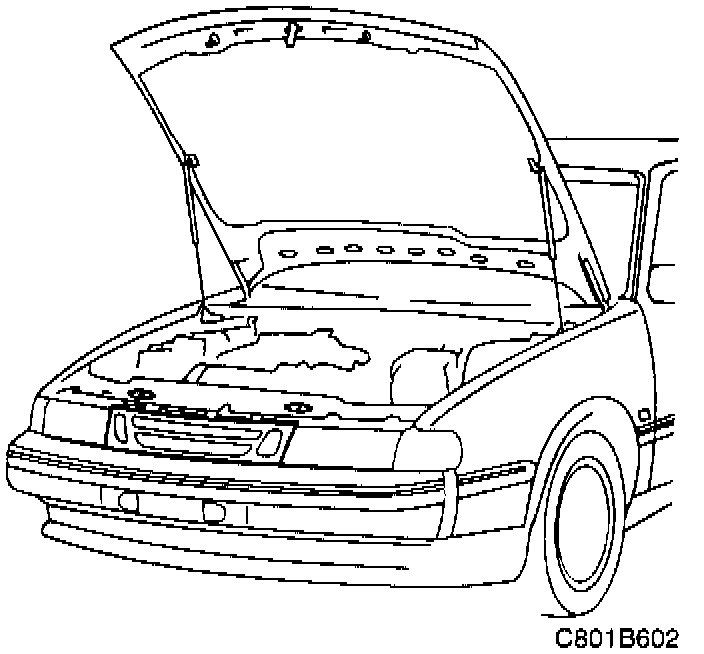

Hood (Bonnet) will not open.
Cars affected
Saab 9000 M97- M98 up to and including VIN W1005224
Background
If the hood (bonnet) is dropped from a high position when closing it. the lock may jam and make it impossible to open with the lever in the cabin.
A new lock has been introduced in production from VIN W1005225.
After customer complaint, rectify the problem by carrying out the procedure in this bulletin.
Parts required
48 59 377 hood (bonnet) lock LHD (CA 30573338)
Warranty/Time Information
Failed Object: 822 20
Fault/Reason code: 72
Location code: 0
Warranty type (US): 01
Repair/Action code: 10
Labor Operation (US): 82220 0.2 hrs. + straight time 0.2 hrs.
(CA: B1540 0.2 hrs., B1550 0.2 hrs.)
