Manual Transmission - Improved Design
SI No. 471-1910PI No.
Date April 1998
Distr. all
9000
Improved manual gearbox
Cars affected
Saab 90OO M96- with manual gearbox from gearbox number N94146.
Background

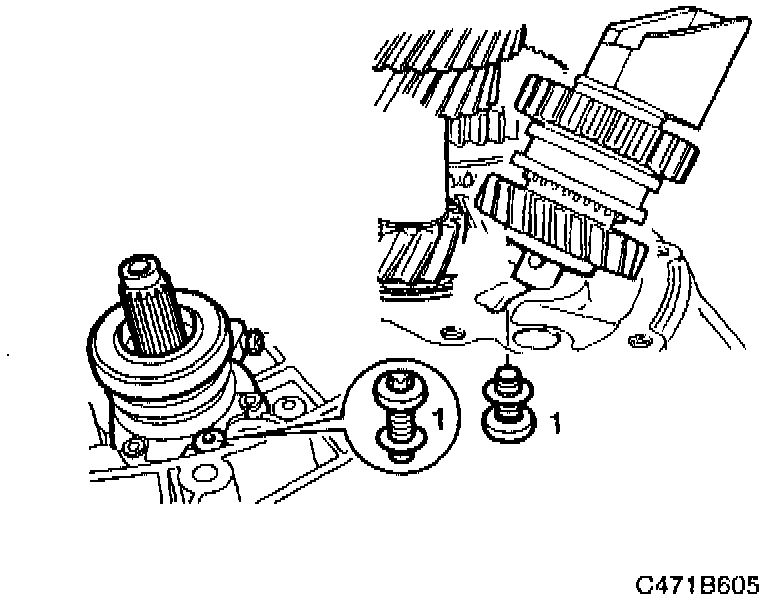

For increased reverse gear service lite, a reinforced bolted reverse shaft has been introduced. This means that when reconditioning a manual gearbox, the O-ring-sealed bolt securing the reverse gear to the clutch housing must be removed before the reverse gear is removed to avoid damaging the clutch housing.
