Recall - Airbag Label Installation

9000

MODIFICATION INSTRUCTION

MI No. 850-2006

PI No.

Date August 1998

Distr. US





Affixing airbag label

Legislation-related recall campaign 10706

Cars in stock must be rectified before delivery. See Product Information with labels sent June 19, 1998. Owners of cars already delivered will be informed of the fault by means of a personal communication requesting them to affix an enclosed label on their driver's side sun visor.

Cars affected

All cars produced after 2/25/97 and retailed prior to 6/24/98 in the following VIN ranges:

All cars with VIN from V1018993 to W1006367 inclusive

See also MI 850-2000, 850-2001 and 850-2005.

Background

An alert label concerning information on the inside of each sun visor must be affixed to the driver's sun visor in order to comply with requirements in FMVSS 208. (Passenger side label already installed.)

Parts required

50 10 103 Label enclosed in owner notification letter.

Procedure

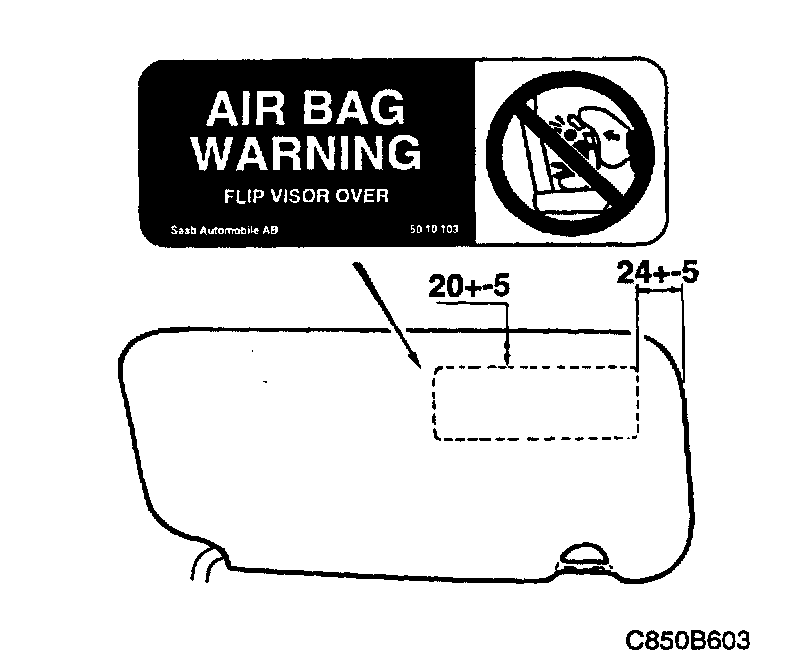

Owner will fit a label in the position shown in the illustration in the owner notification letter to be sent in early September.

Warranty/Time Information

Not applicable at this time.
