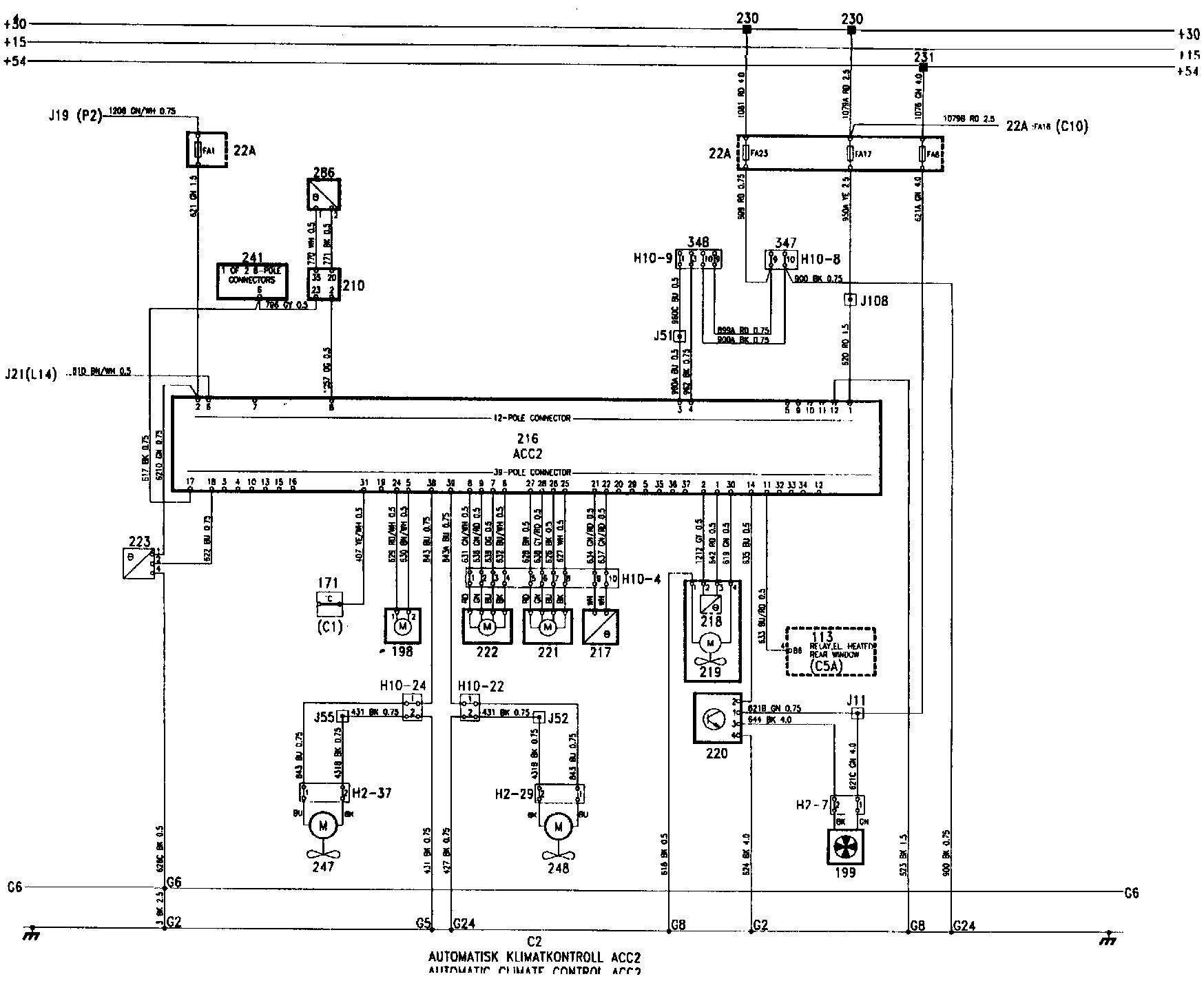

Automatic Climate Control (ACC) System

List of components

16 Rheostat, lighting for controls
113 Relay, electrically heated rear window
198 Motor, air recirculation flap
199 Motor, cabin fan
210 EDU control module
216 Automatic Climate Control (ACC) control module
217 Blended air temperature sensor
218 Cabin temperature sensor
219 Suction fan, cabin temperature sensor
220 Speed control for ventilation fan
221 Motor, air distributor
222 Motor, air mixing damper
223 Solar sensor
230 Distribution terminal +30
231 Distribution terminal +54
247 Fan, left-hand rear door
248 Fan, right-hand rear door
286 Outside temperature sensor, Electronic Display Unit (EDU)
348 Data link connector, diagnostics
G2 Grounding point, battery shelf
G5 Grounding point on left-hand side under rear seat
G8 Grounding point on left-hand side under facia
G24 Grounding point under right-hand front seat
J19 LHD: Branching point approx. 180 mm from ignition switch and approx. 260 mm from windscreen wiper and rear windscreen wiper switch.
RHD: Branching point approx. 260 mm from ignition switch.
J21 LHD: Branching point approx. 150 mm from preinstalled telephone connector towards the instrument.
RHD: Branching point approx. 190 mm from the branch for radio switches towards right-hand side of car.
J51 Branching point approx. 275 mm from data link connector under right-hand front seat.
J108 Branching point approx. 180 mm from output on fuse 17 in electrical distribution box in facia.
