Low Fuel Lamp/Indicator: Description and Operation

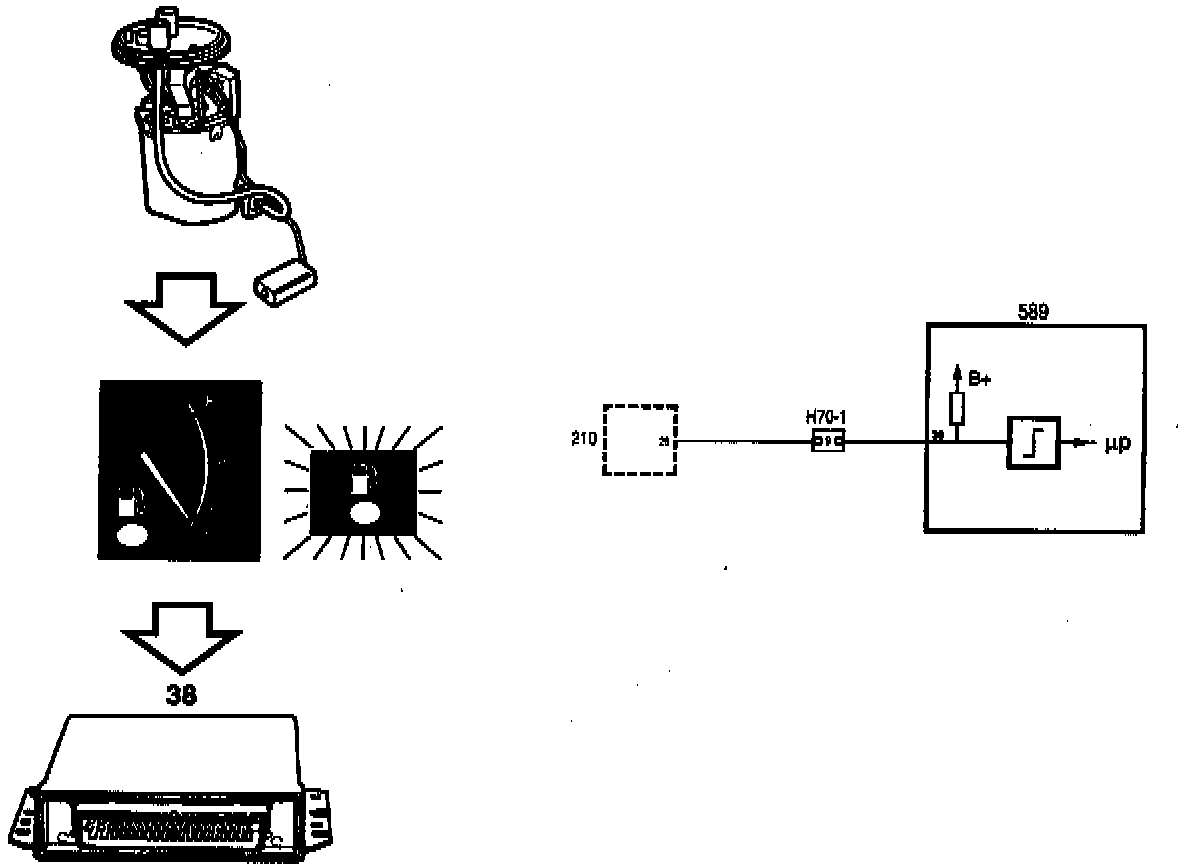

When the amount of fuel in the tank drops below 10 litres, the "low fuel level" lamp in the main instrument display panel lights up. At the same time, the EDU grounds pin 38 of the Trionic control module.

This function is used solely for the OBD II system.
