3:2 Electrical System, Wiring Diagrams

Page 29

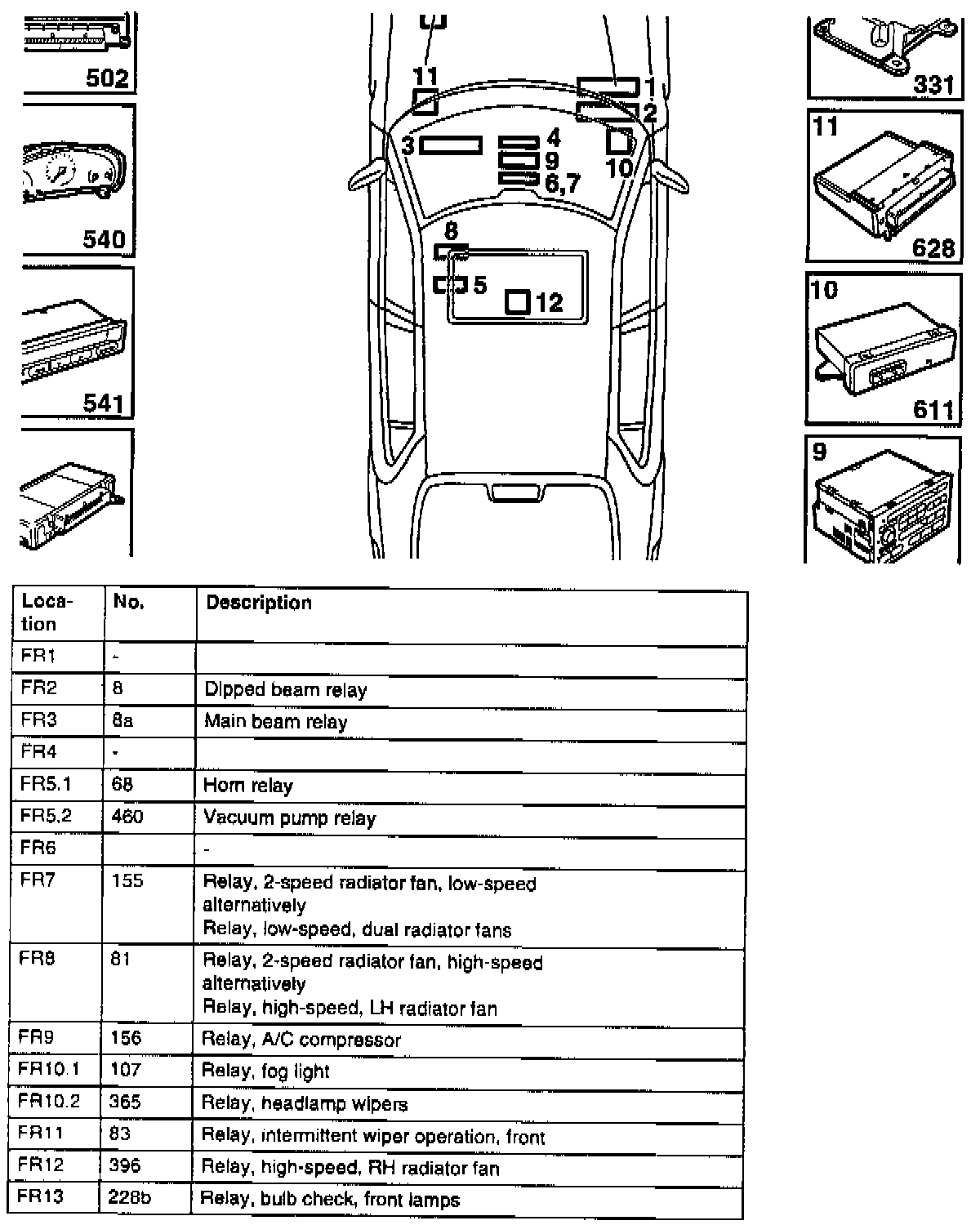

A new relay for the headlamp wipers has been introduced in the forwardmost main fuse box and the page thus looks as shown.

- The same incorrect drawing and table can be found in Service Manual 3:1 on page 425.





Page 48

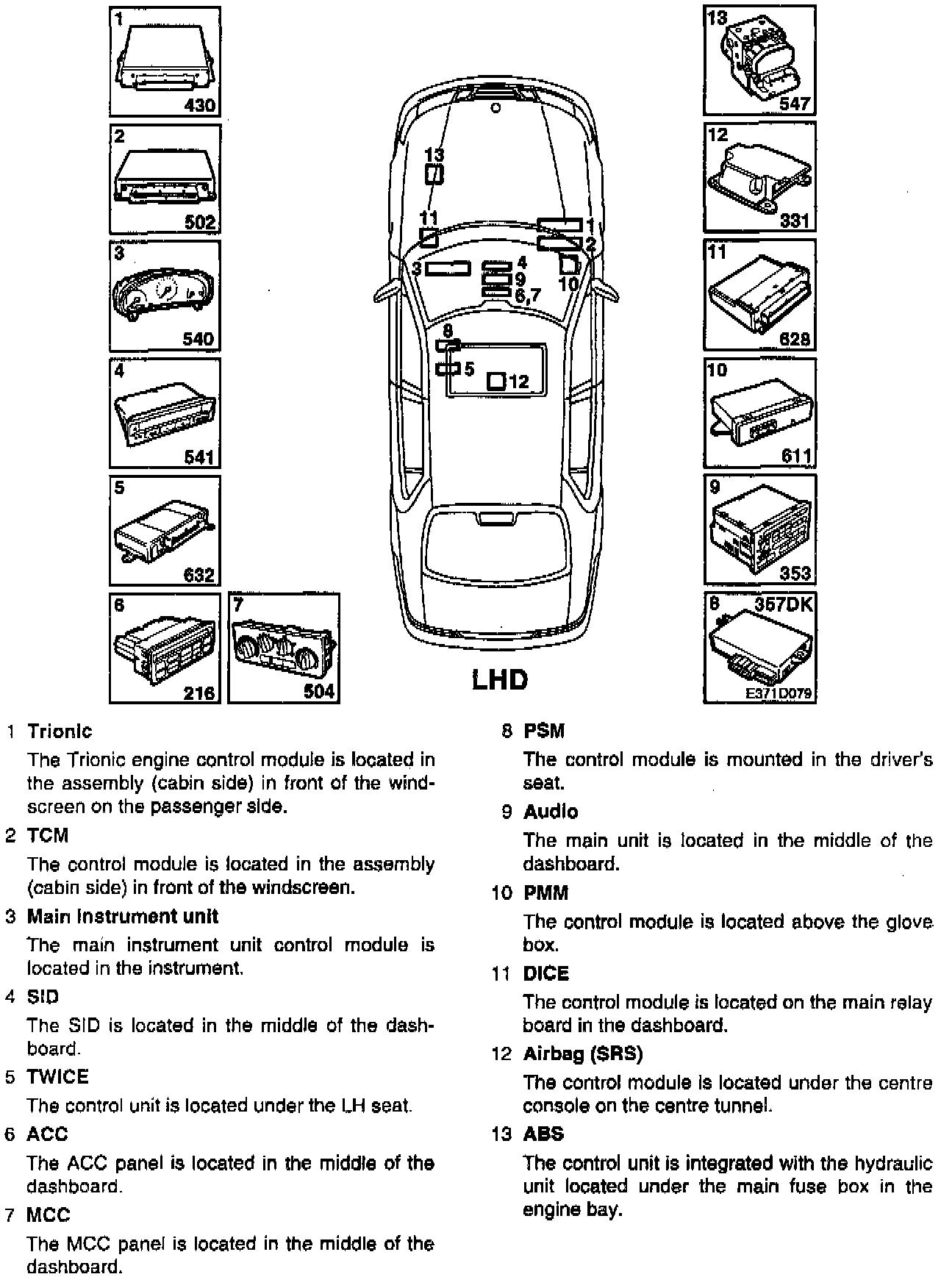

Text and drawings do not match. The control modules are located as shown.





Page 148:

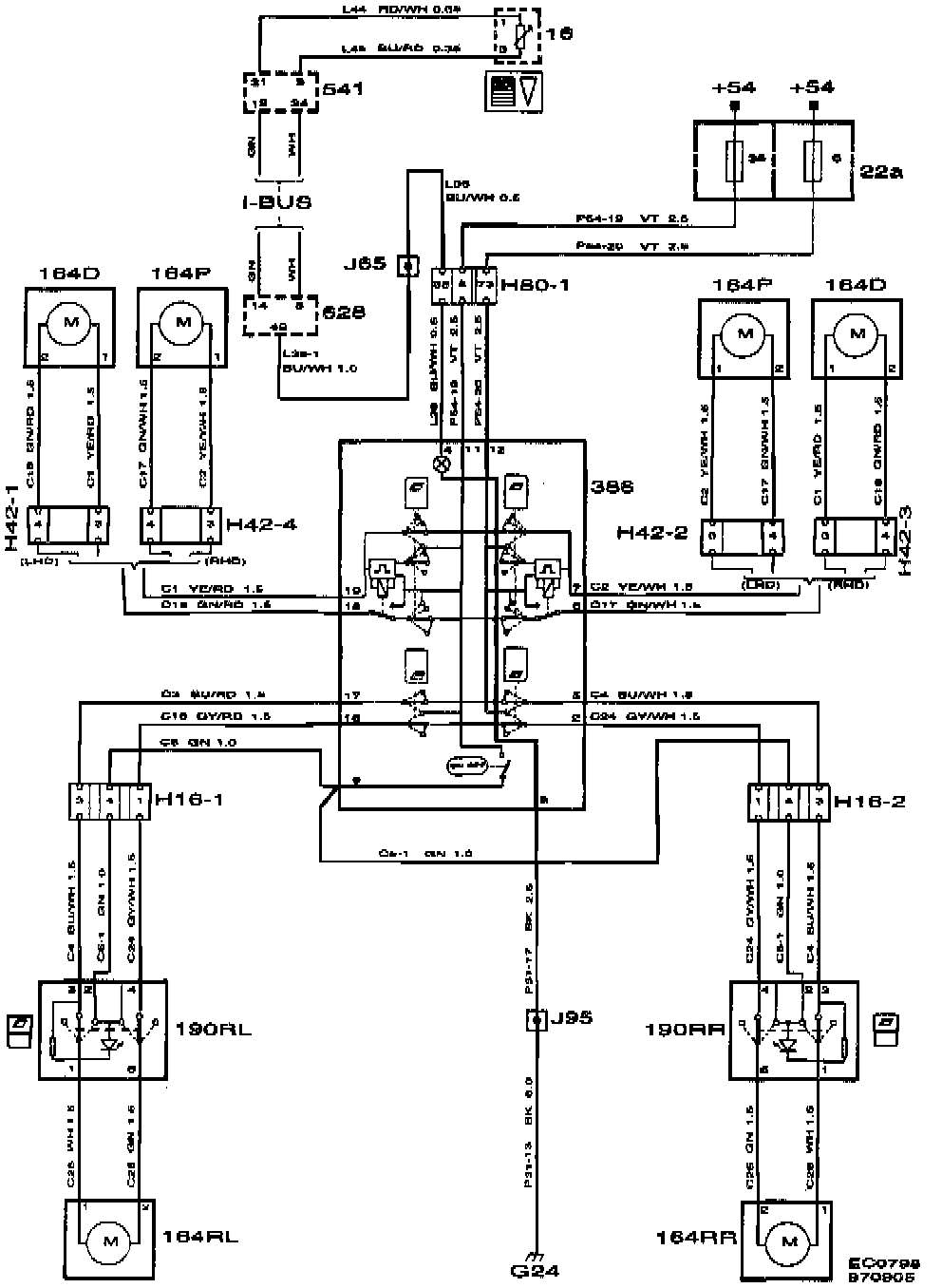

A new relay has been introduced to ensure that the headlamp wipers park in the correct position. This diagram also applies to the description of the headlamp wipers in service manual 3:1





Page 276

Fuses 6 and 36 are drawn in the wrong positions. Fuse 6 supplies the right-hand side and fuse 36 the left-hand side.
