0:2 Technical Data
0:2 Technical data - manual gearboxSummary of lubricants and sealants, page 145
The table has been changed

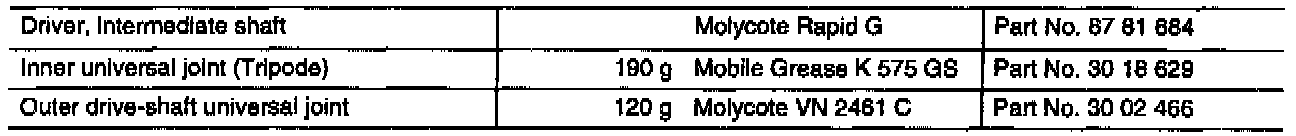

0:2 Technical data - drive shafts
Summary of lubricants and sealants, page 147
The table has been changed
0:2 Technical data - steering linkage
Tightening torques, page 186
Steering swivel member to MacPherson strut (A) should be 100 Nm (75 lbf ft) +45°.
Steering swivel member to ball joint, steering swivel member (B) should be 95 Nm (70 lbf ft).
Ball joint, steering swivel member to suspension arm (C) should be 30 Nm (22.5 lbf ft) +90°.
0:2 Technical data - power assisted steering system
Lubricants, page 187
After "Power steering fluid, type", is the text "Pentosin CHF 11S". This should read "Power steering fluid CHF 11S part No. 3032380.
0:2 Technical data - front suspension
Tightening torques, page 190
MacPherson strut top mounting bolts should be 18 Nm (13 lbf ft).
Steering swivel member to MacPherson strut should be 100 Nm (75 lbf ft) +45°".
