4:1 Manual Gearbox - Manual Gearbox, Drive Shafts
Technical data, gearbox, page 57The text under the heading "Grade of oil" should read as follows:
"Saab synthetic manual gearbox oil part No. 400 108 247."
Technical data, summary of lubricants and sealants, page 59
The table has been changed
Basic design, page 83
"For better synchromesh function, the 1st and 2nd gears have 3 baulk rings." This should read:
"For better synchromesh function, the 1st and 2nd gears have 2 baulk rings."
Adjustment/replacement, manual gearbox, page 98 Under the heading "To fit", point 36 should read as follows:
Tighten the outer ball joints to the steering swivel member.
Tightening torque: 85 Nm (63 lbf ft).
WARNING
Check that the spindle on the ball joint protrudes above the steering swivel member attachment.
If the bolts securing the link arm and ball joint were removed. these should be done up instead.
Tightening Torque: 30 Nm (22.5 lbf ft) +90°.
4:1 Manual gearbox - drive shafts

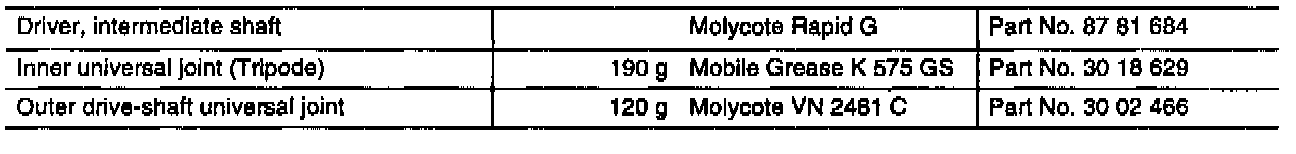

Technical data, summary of lubricants and sealants, page 157
The table has been changed
