5:1 Brakes - Brake Discs and Brake Pads, Foot Brake System
5:1 Brakes - brake discs and brake padsAdjustment/replacement, brake disc, rear wheel, page 16
Under the heading "To fit", point 4 should read as follows:
"Apply locking compound 74 96 268 to the brake caliper securing screws, fit the caliper and secure the brake line.
Tightening torque: 80 Nm (59 lbf ft)."
5:1 Brakes - handbrake system
Adjustment/replacement, Adjusting the handbrake cable, page 81
1 Apply the handbrake 1 notch.
2 Raise the car so that the rear wheels can spin freely.

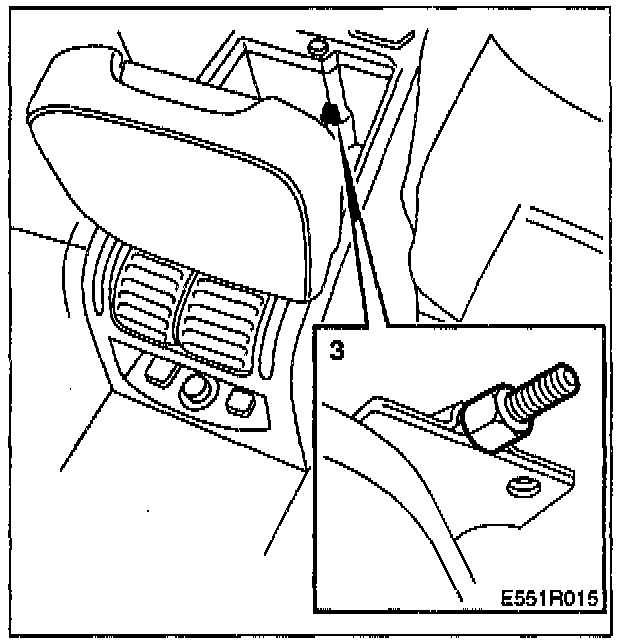

3 Tighten the adjusting nut on the handbrake lever through the hole in the front wall behind the mat in the storage compartment in the centre console until the brakes just begin to take effect.
4 Release the handbrake and apply it again.
The wheels should lock between the 1St and 4th notches.
5 Lower the car to the floor.
Adjusting the handbrake shoes, page 82
Check lever travel. If the wheels are not locked at notch 4, the handbrake should be adjusted.
1 Release the handbrake.
2 Check that the cable is not pulling the actuating levers. If necessary, slacken the cable adjusting nut.

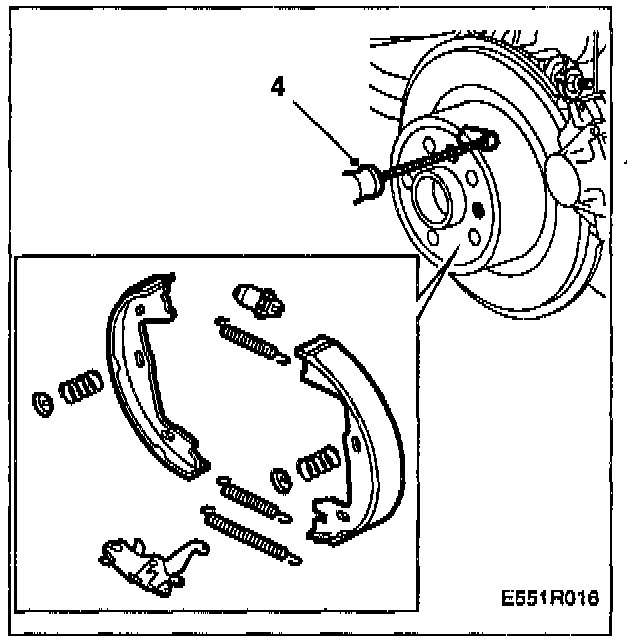

3 Using a screwdriver, unscrew the adjuster until the brake disc is blocked.
4 Then screw the adjuster back until the brake disc can be turned.
5 Repeat this procedure on the other wheel.
6 Fit the wheels and torque tighten the wheel bolts.
Tightening torque: 110 Nm (80 lbf ft)
5:1 Brakes - foot brake system
The following texts and wiring diagrams are new:
Technical description, vacuum pump, page 44

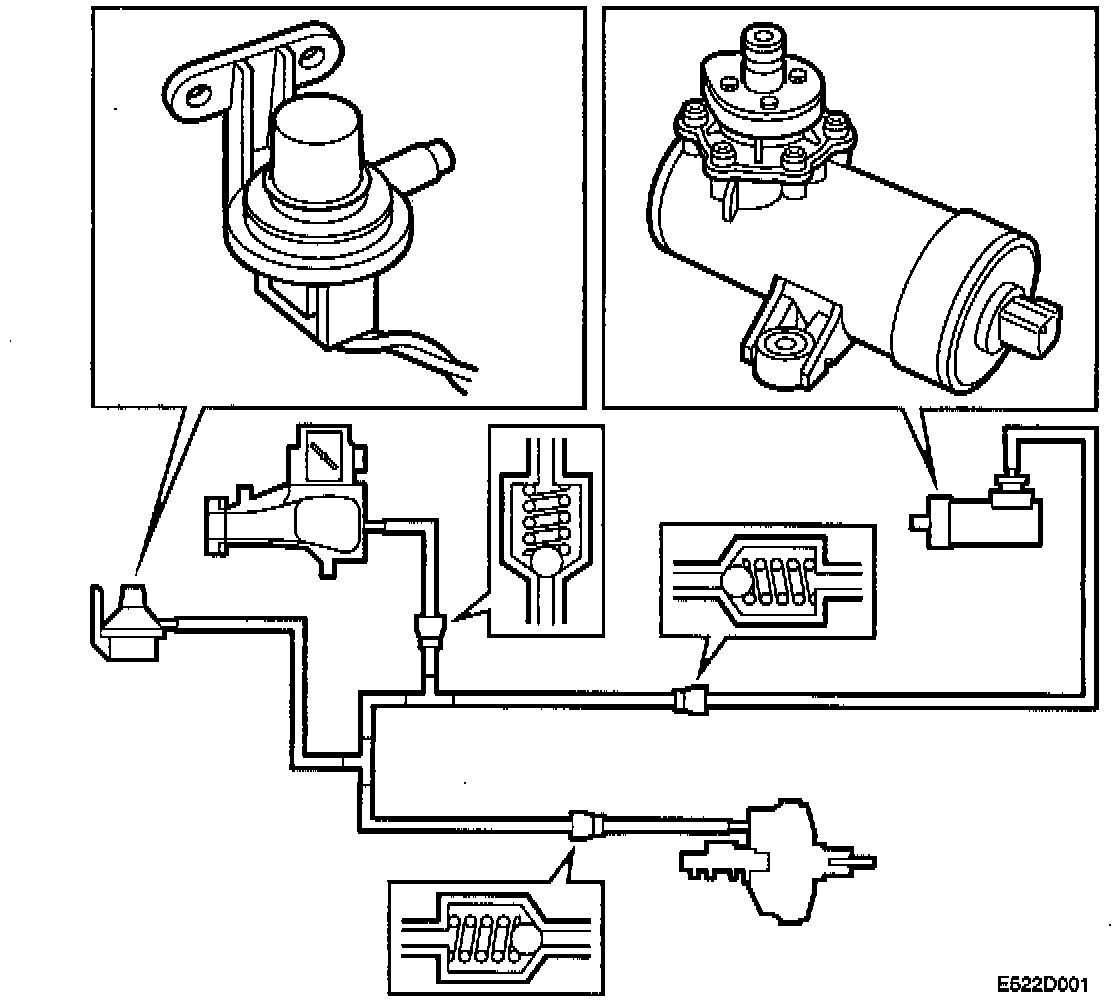

In order to further improve the braking in the Saab 9-5 2.0 and 2.3 with automatic transmission, a vacuum pump has been introduced. This pump supplies the brake servo with a vacuum in driving conditions where the engine cannot achieve this unaided.
The pump starts up at a vacuum less than 0.35 bar and switches off at 0.4 bar.
The following factors must be met for the pump to start:
^ Ignition on
^ Vacuum as above
The pump is located in front of the battery.
Fault diagnosis, fault symptom, vacuum pump, brake system
Fault diagnosis hints
1 Check fuses 11 and 16 and check power supply to these.
2 Short circuit the pressure switch and check whether the engine starts.
3 Check connectors, wiring harnesses and ground connections.

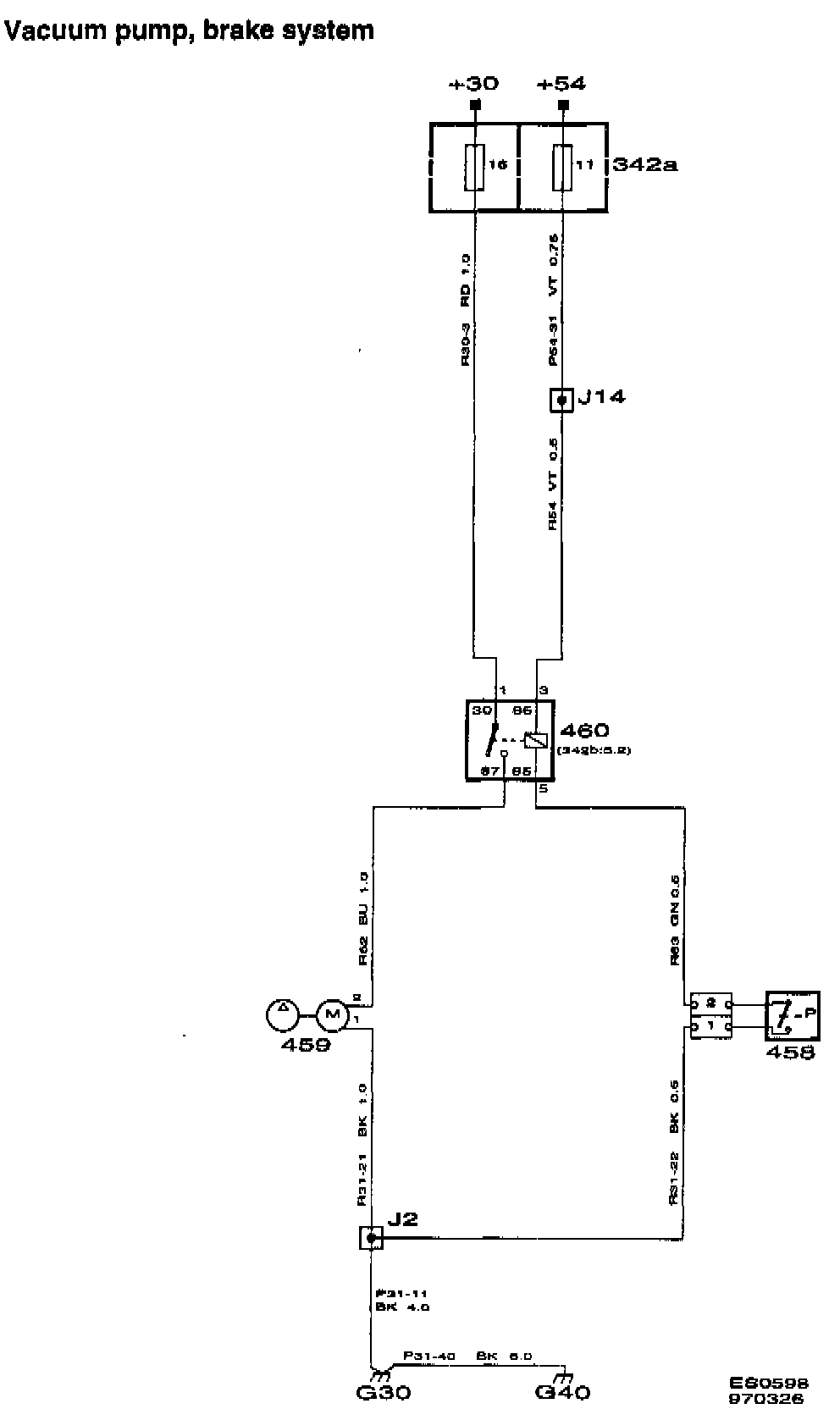

Vacuum pump, brake system
