6:1 Front, Steering Assembly - Power Steering System
6:1 Front assembly, steering assembly - power steering systemTechnical data, lubricants, page 73
After Power steering fluid, type", is the text Pentosin CHF 11S". This should read Power steering fluid CHF 11S part No. 3O 32 38O.
Technical data, tightening torques, page 75

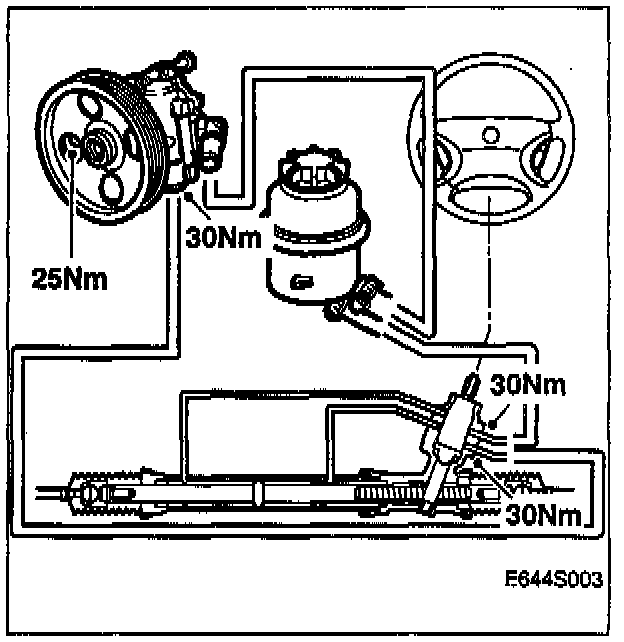

This drawing is incorrect and should be as follows:
Technical description, System overview, page 79
This drawing is incorrect and should be as shown.
Technical description, steering valve, page 82
The text:
"For a left turn, power steering fluid is pumped to the left side of the servo cylinder via the sleeve's upper radial groove. At the same time, fluid is discharged from the right-hand side of the servo cylinder via the sleeve's lower radial groove."
Should read
"For a left turn, power steering fluid is pumped to the left side of the servo cylinder via the sleeve's upper radial groove. At the same time, fluid is discharged from the right-hand side of the servo cylinder via the sleeve's lower radial groove."
