Vehicle - Service Manual Revisions: Overview
SI No. 010-1806PI No.
Date: April 1998
Distr. all
Changes to service manuals M1999
The following information should be added to the service manuals.
Note that some information shown applies to European market only.
The following text applies to all parts which require tightening of the cylinder head.
The tightening torque for the cylinder head should be:
Stage I 40 Nm (30 lbf ft)
Stage II 60 Nm (44 lbf ft)
Stage III angle tighten 90°

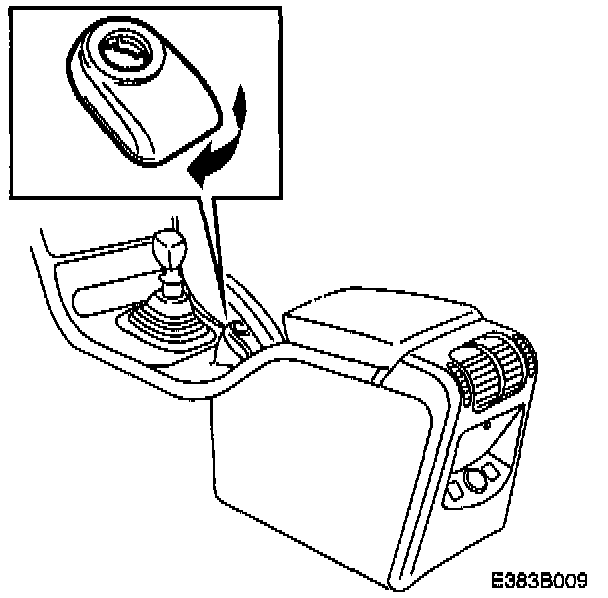

The following text applies to all parts which require removal of the immobilizer aerial unit:
To remove, turn the immobilizer aerial unit slightly clockwise and then lift.
The following applies to all parts where wheel bolts require tightening
The tightening torque for wheel bolts should be 110 Nm (80 lbf ft).
The following text must also be added:
Important
The wheel must hang freely when the wheel bolts are being tightened.
