Campaign - Luggage Compartment Water Leaks
CAMPAIGN INSTRUCTIONSMI No. 831-2218
PI No.
Date: May 2000
Distr. See separate list
9-5
Customer Satisfaction Campaign 802: Water leak in luggage compartment
Background
In connection with the introduction in production of a new screw for the trunk (boot) lid hinges, a small opening in one of the fastening holes to the water channel was sealed. This opening was used to drain water from the top of the hinge fastening to the water channel and, consequently, the water is now drained into the luggage compartment.
Cars affected
Saab 9-5 Sedan models within the following VIN Serial No. Ranges:
X3039285 - X3043680
Owner Notification
As much as possible, owners of affected vehicles will be notified by Saab Cars USA, Inc.
A VIN Status List will be supplied to you prior to any owner notification. If you do not receive a Status List, this is an indication that no affected vehicles have been sold to/by your dealership.
Please check your IRIS On-Line Recall & Service Campaign Inquiry for open campaigns.
Material
Body sealant - sourced locally
Warranty/Time Information:
Submit warranty claims using the following information:
FAILED OBJECT: 11802
FAULT/REASON: 56
LOCATION: 0
WARRANTY TYPE: 02
REPAIR/ACTION: 05
LABOR OPERATION: 11802
TIME: 0.4
Add $5.00 in sublet for sealant.
MODIFICATION INSTRUCTION
Background
In connection with the introduction in production of a new screw for the trunk (boot) lid hinges, a small opening in one of the fastening holes to the water channel was sealed. This opening was used to drain water from the top of the hinge fastening to the water channel and, consequently, the water is now drained into the luggage compartment.
Cars affected
Saab 9-5 Sedan models within the following VIN Serial No. Ranges:
X3039285 - X3043680
Owner Notification
As much as possible, owners of affected vehicles will be notified by Saab Cars USA, Inc.
A VIN Status List will be supplied to you prior to any owner notification. If you do not receive a Status List, this is an indication that no affected vehicles have been sold to/by your dealership.
Please check your IRIS On-Line Recall & Service Campaign Inquiry for open campaigns.
Material
Body sealant - sourced locally
Procedure
1 Wash clean the area to be sealed.

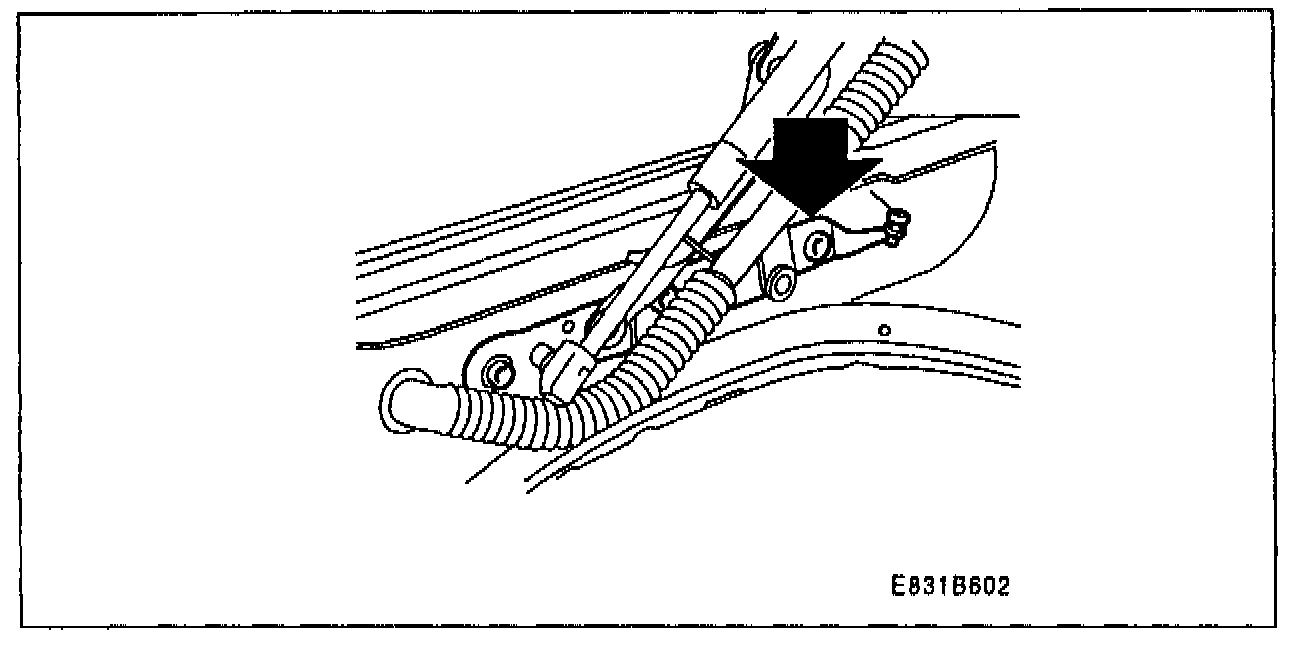

2 Seal the gap between the trunk (boot) lid hinge fastening and the body by the front screw on the left-hand side of the car. See illustration.
3 Seal the gap between the trunk (boot) lid hinge fastening and the body by the front screw on the right-hand side of the car.
4 Apply finishing paint.
Warranty/Time information
See separate information.
