Automatic Transmission/Transaxle

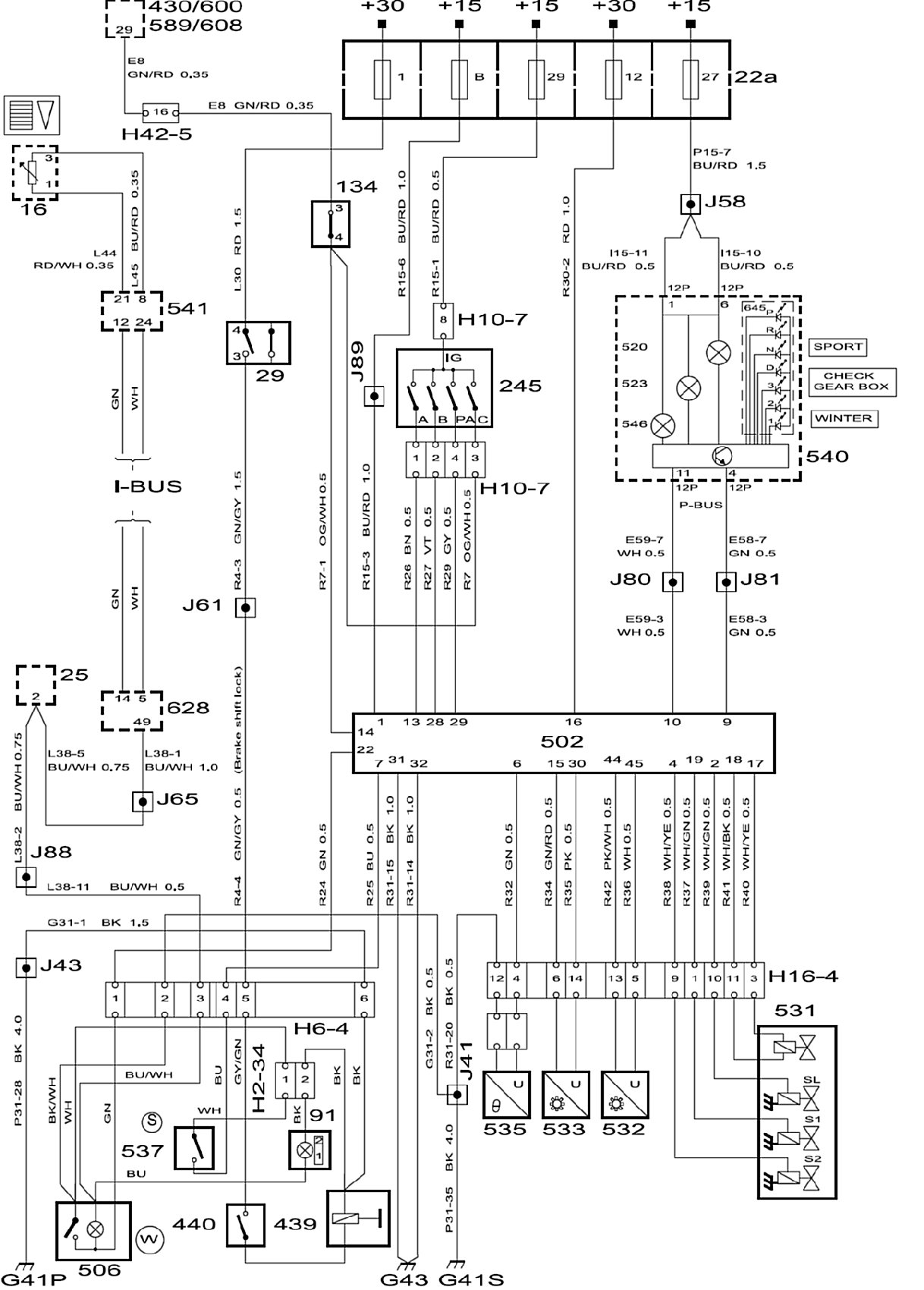

Transmission control module (TCM)






Components

16 Rheostat, instrument lighting, in light switch panel between steering wheel and driver's door.
22a Fuse board, instrument panel, on end of dashboard by drivers door.
25 Switch, hazard warning lights, by center dashboard vent.
29 Switch, brake lights, on pedal bracket.
91 Lamp, selector lever position indicator lighting, in floor console by selector lever.
134 Switch, brake, cruise control, on pedal bracket.
245 Selector lever position switch 1, automatic transmission, on automatic gearbox in engine bay.
430 Control module, Trionic 4cyl, in space (cabin side) ahead of windscreen on passenger side.
439 Solenoid, selector lever, SHIFT LOCK, in selector lever bracket.
440 Microswitch, selector lever, in selector lever bracket.
502 Transmission control module, TCM, in space (cabin side) ahead of windscreen.
506 Switch, WINTER, by selector lever.
531 Solenoid valves, TCM, on bottom of gearbox.
532 Speed sensor, input shaft, transmission, on gearbox.
533 Speed sensor, output shaft, transmission, on gearbox.
535 Temperature sensor, transmission fluid, on bottom of gearbox.
537 Switch, SPORT, on top of selector lever.
540 Main instrument unit, ahead of driver in instrument panel.
541 SID, in center of instrument panel.
589 Control module, Trionic 4-cyl (OBDII), in space (cabin side) ahead of windscreen on passenger side.
600 Control module, Trionic V6, in space (cabin side) ahead of windscreen on passenger side.
608 Control module, Trionic V6 (OBDII), in space (cabin side) ahead of windscreen on passenger side.
628 Control module, DICE
LHD:Above main relay board in dashboard
RHD:Behind main relay board in dashboard

2-pin connector
H2-34 In console for automatic

6-pin connector
H6-4 By console for automatic gear selector lever.

10-pin connectors
H10-7 Under battery tray.

16-pin connectors
H16-4 Under battery tray.

42-pin connectors
H42-5 In center of partition (engine bay side)

Crimp connections
J41 LHD: Approx. 200 mm from branching point SID towards MIU.
RHD:Approx 90 mm from branching point grounding point G41S towards MIU.
J43 LHD: Approx. 220 mm from SID branching point towards MIU.
RHD: Approx. 65 mm from branching point grounding point G41P towards ignition switch.
J58 LHD: Approx. 50 mm from branching point MIU (12-pin connector) towards data link connector.
RHD: Approx. 100 mm from branching point SID towards radio.
J61 LHD: Approx. 90 mm from branching point left-hand front floor lighting towards DICE control module.
RHD:Approx. 90 mm from branching point of grounding point G40 towards radio.
J65 LHD: Approx. 40 mm from branching point MIU (20-pin connector) towards its 12-pin connector.
RHD: Approx. 260 mm from branching point grounding point G41S towards MIU.
J80 Besides the cable tie on the TCM's connector.
J81 Besides the cable tie on the TCM's connector.
J88 LHD: Approx. 10 mm from branching point of grounding point G41S towards SID.
RHD: Approx. 160 mm from branching point of grounding point G41S towards MIU.
J89 LHD: Approx. 30 mm from branching point of grounding point G41S towards the radio connector.
RHD: Approx. 85 mm from branching point of grounding point G41S towards the radio connector

Grounding points
G41P Middle grounding screw on center of knee member (in cabin).
G41S Left-hand ground screw on center knee member (in cabin).
G43 Right-hand grounding bolt in the center of the knee member (inside the cabin).
