Speedometer Head: Service and Repair

Replacing the Trip Meter

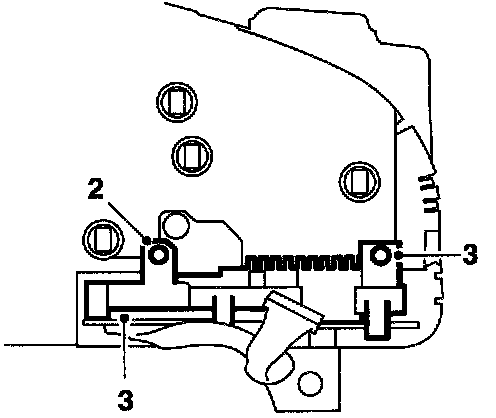

To Remove

1 Remove the electronic unit.
2 Undo the trip meter, two screws.
3 Lift out the trip meter.

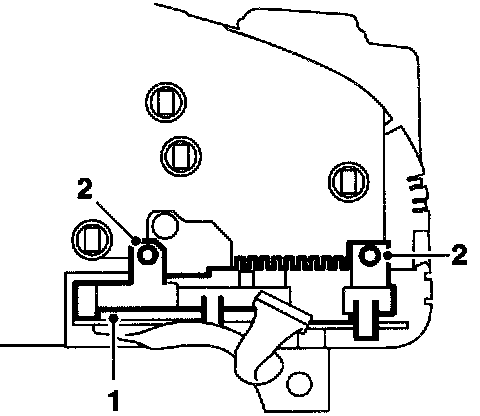

To Fit

1 Fit the trip meter, two screws.
2 Fit the electronic unit.
