Splice Locations

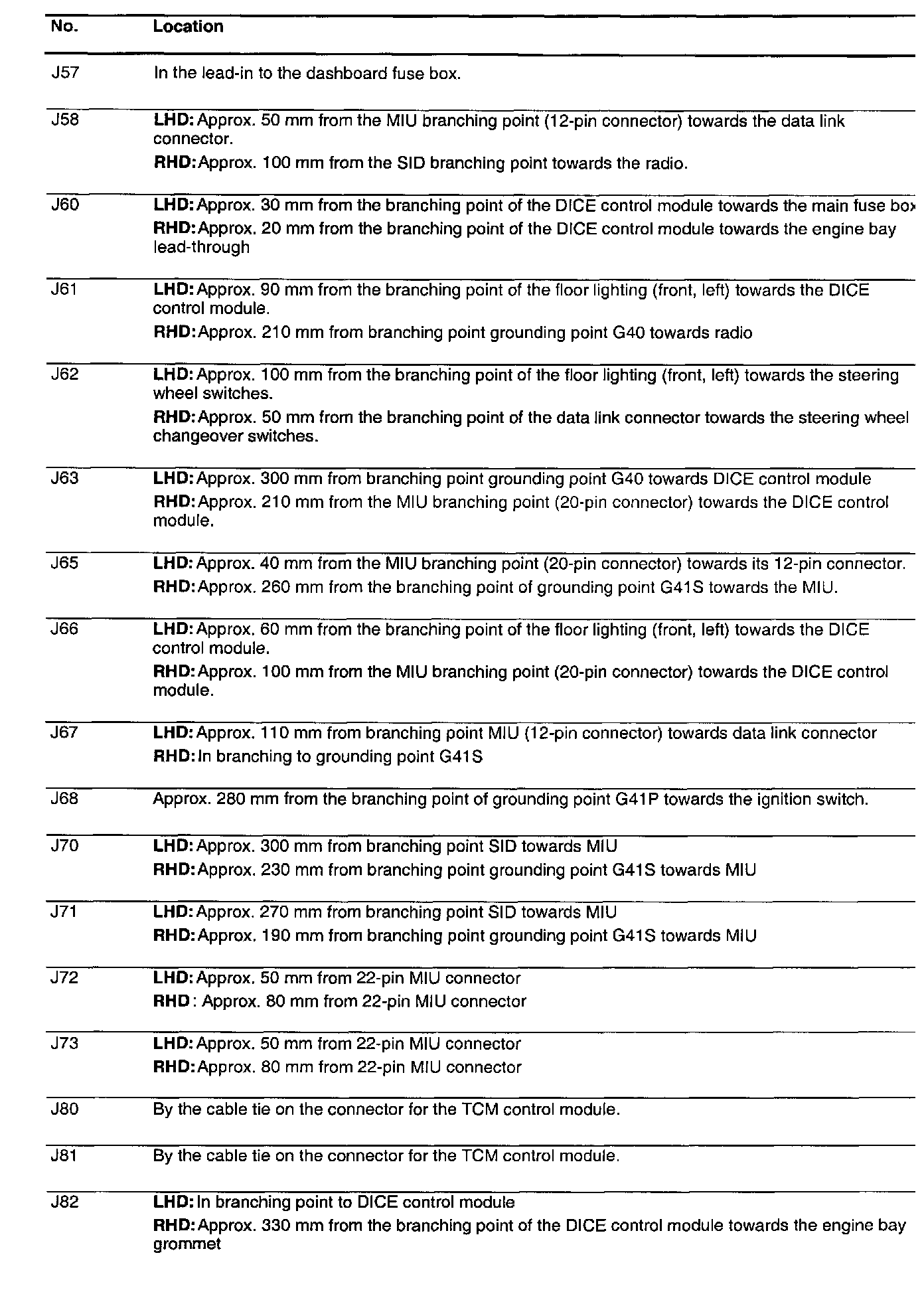

Crimp Connections, Part 1:

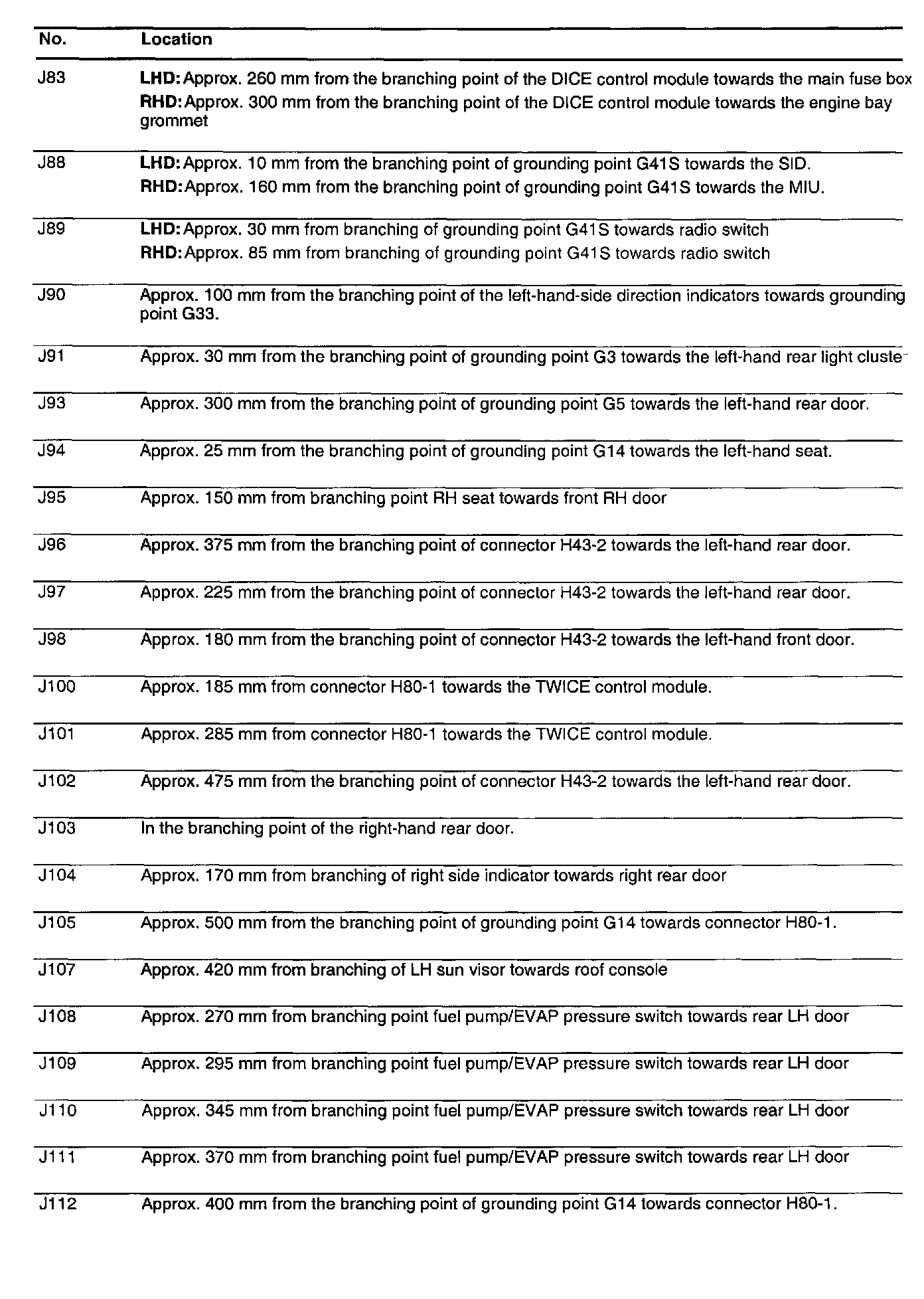

Crimp Connections, Part 2:

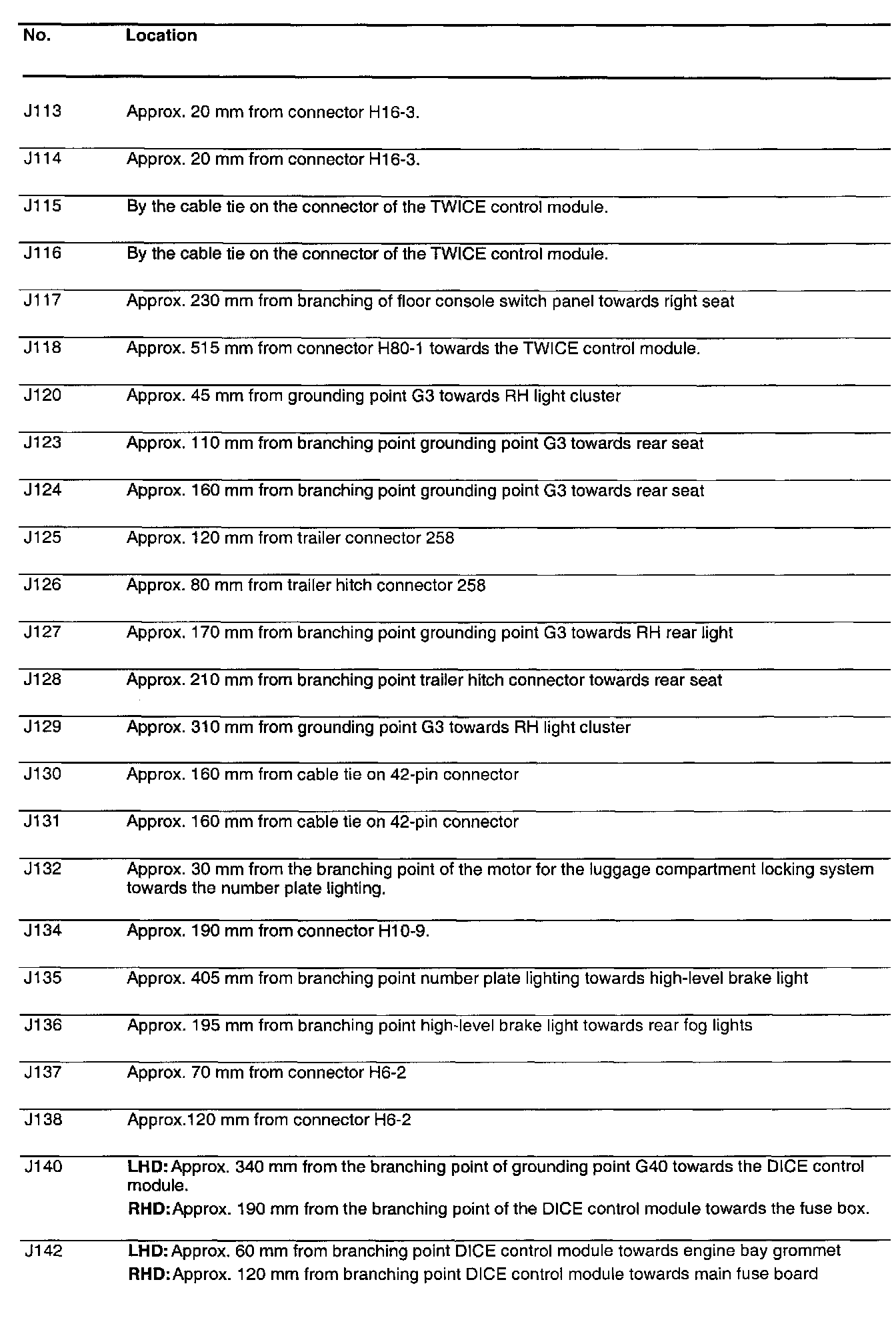

Crimp Connections, Part 3:






Crimp Connections, Part 4:






Crimp Connections, Part 5:

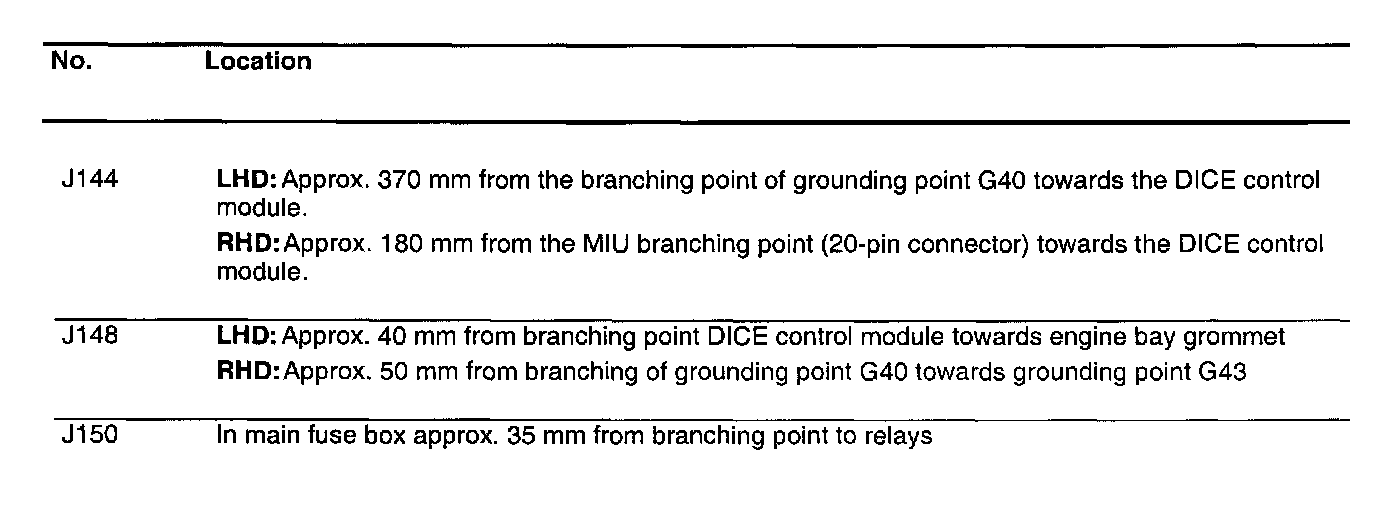

Crimp Connections, Part 6:
