Cellular Phone and Antenna - Installation: Overview
SI No. 391-1964PI No.
Date: March 1999
Distr.
9-5
Nokia hands-free mobile telephone and glass-mounted antenna installation instructions
Cars affected
Saab 9-5 M99-
Background
All U.S. specification Saab 9-5 models are pre-wired for hands-free mobile telephone operation. This system (Tel 1) includes a microphone and a 10-pin connector, which allows integration with the car's audio system.
The purpose of this SI is to provide a description of the system and its operation, recommended telephones, and Installation Instructions for those phones. It is intended to be given to an installer for use in installing these telephones In Saab 9-5 models.
READ THROUGH COMPLETE SI BEFORE BEGINNING INSTALLATION.
When a compatible mobile telephone system is properly installed, the following features are available:
1 Auto muting of the Saab's sound system for incoming and outgoing calls.
2 Using the audio system's speakers for hands-free calls.
3 Adjustment of the telephone hands-free volume with the radio controls, both on the radio and on the steering wheel.
4 Hand set background lighting is controlled by the vehicle's lighting controls. (System feature: not necessarily available with all telephones. Not used in Nokia telephones listed here.)
5 Both constant and switched power through the car's system. This allows using the car's power vs. the phone's battery power. Also charges the phone's battery even when the ignition is turned off.
This SI contains detailed directions for connecting the following telephones:
- Nokia 2100 series: Models 2160, 2170, 2180, 2190
- Nokia 5100 series: Models 5120, 5160, 5170, 5180, 5190
- Nokia 6100 series: Models 6120, 6160, 6161, 6162, 6190
- Nokia Models 9000, 252 and 282
The following mobile telephone features are required to utilize all of these listed features:
1 A GROUNDED mute signal from the telephone when the phone is in use. This circuit is necessary to signal the audio system to mute the radio volume and look for input from the telephone.
2 External positive and negative speaker outputs so the sound from the telephone can be played through the car's stereo system speakers.
3 External microphone connection.
4 Provision for unswitched (B+), switched power, and ground.
Of the many types of mobile telephones that are available, Nokia is the make that has proven to be most compatible.
Nokia may be contacted directly at 1-888-NOKIA-2U, or at their website at www.shopnokia.com to help in finding the availability in your particular area.
Materials required for installation:

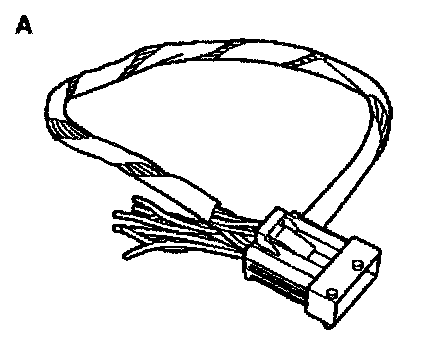

A Saab 10-pin adapter cable 49 42 058.
This adapter cable/pigtail allows connection to the 10-pin connector in the car's wiring harness.
B Saab phone mount 02 62 576.

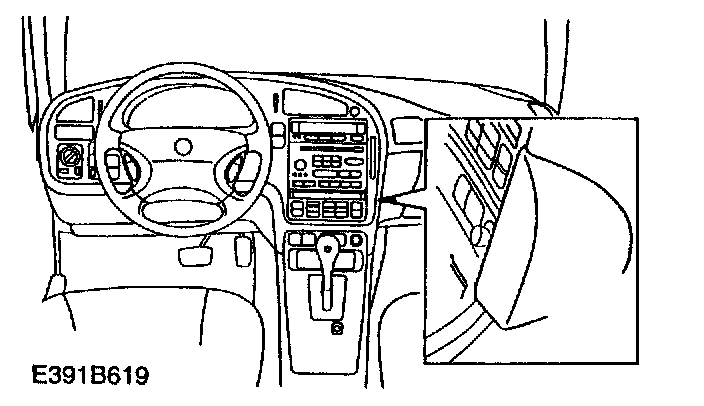

This allows the phone's cradle to be mounted on the right-hand side of the dash.

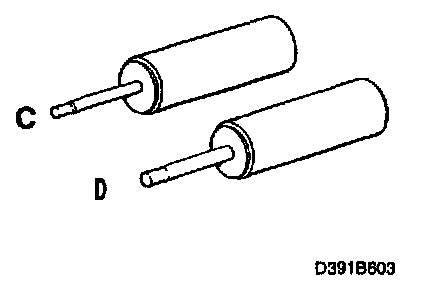

C 3.5 mm Mono jack plug (Radio Shack Cat. No. 274-286A)
D 2.5 mm Mono jack plug (Radio Shack Cat. No. 264-289C)
E 3 mm heat shrink tubing, 150 mm (6") long
F Soldering gun, solder
G T25 Torx driver
H 8 mm socket/wrench
I In addition, a car adapter from Nokia for the specific model mobile telephone being installed will be required:
^ Nokia CARK-11US for 2100 series telephones
^ Nokia CARK-91US for 5100 and 6100 series telephones
^ Nokia CARK-90US for 252 model
^ Nokia CARK-103 for 9000 series
^ Nokia CARK-105 for 282 model
NOTE:
The Nokia telephone Installation kit may come with an additional handset to accommodate semiprivate calls. Saab Cars USA, Inc. cannot recommend a location for this handset. It is best to ask the customer if, and where, they want it mounted. The handset does not have to be installed for proper telephone operation.
