Special Tools - Summary Listing
SI No. 101-1798PI No.
Date March 1998
Distr. US/CA
9-5
Summary of special tools for Saab 9-5
Tools for basic repairs
Strap and Wedge
Spark plug sleeve and Pressure test plug
Tool for relieving belt tensioner, Removing tool, fuel pipe
quick-release coupling, Puller, windscreen wiper arm

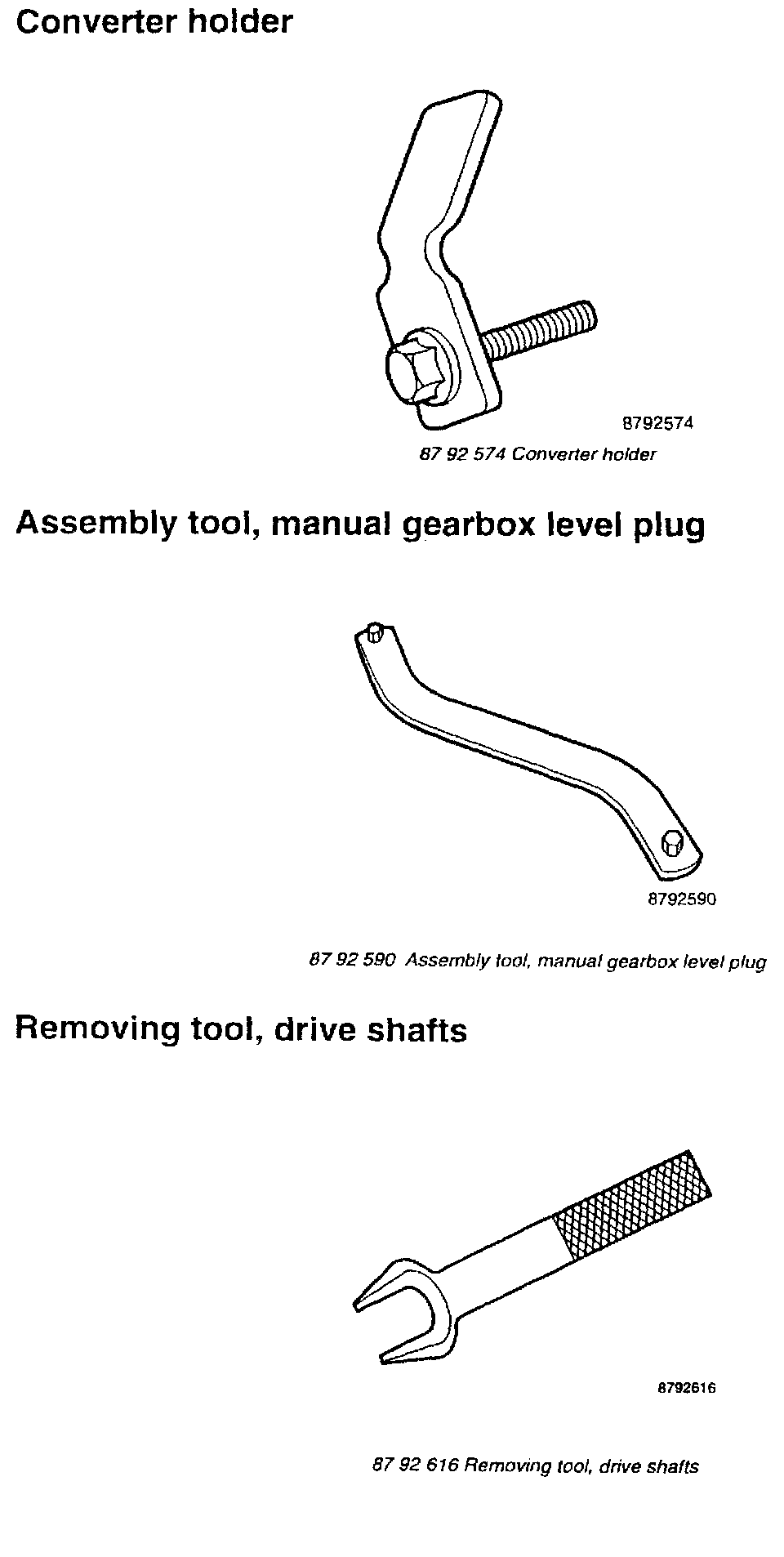

Converter holder, Assembly tool, manual gearbox level plug,
Removing tool, drive shafts

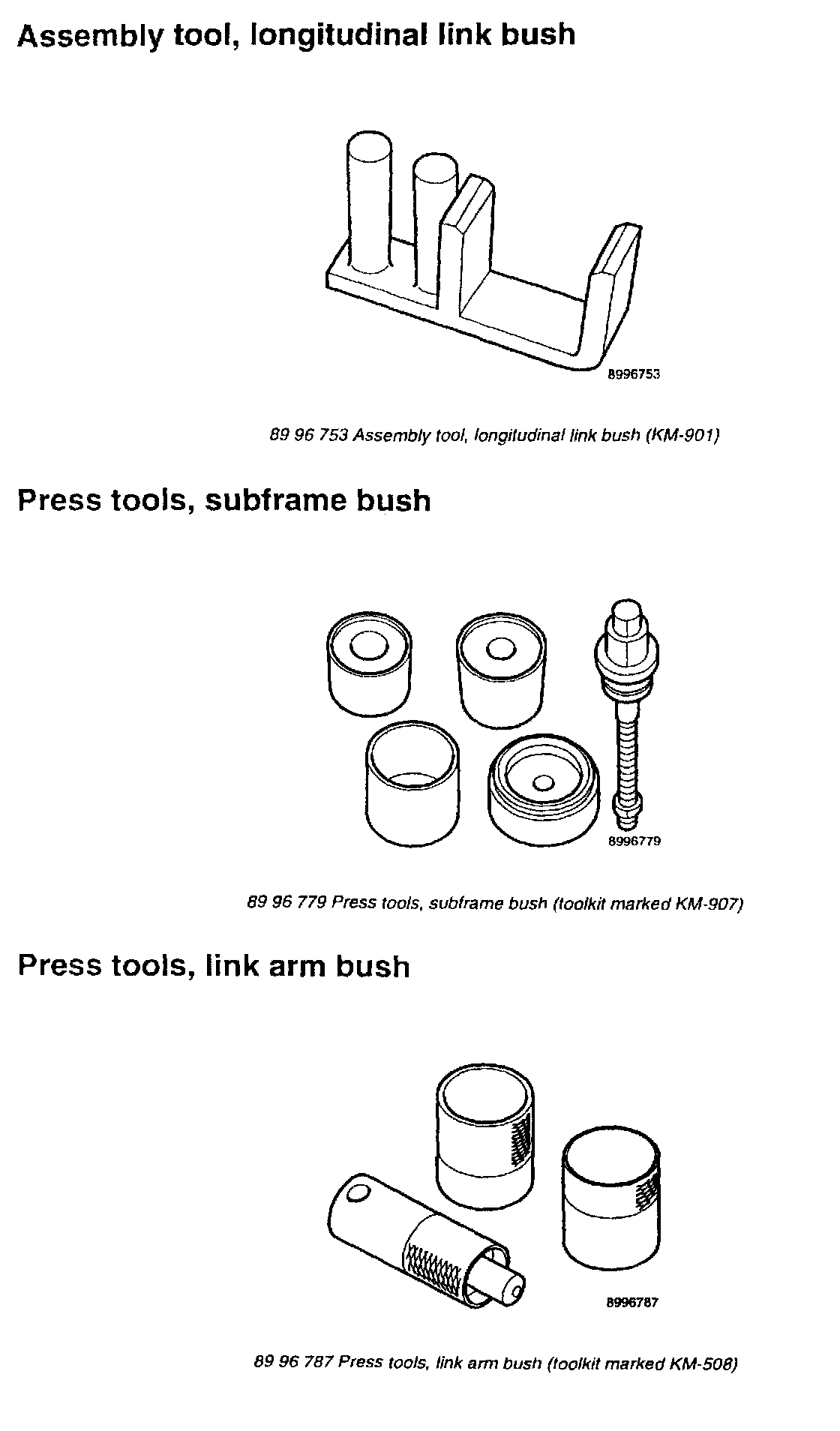

Assembly tool, longitudinal link bush, Press tools, subframe bush,
Press tools, link arm bush

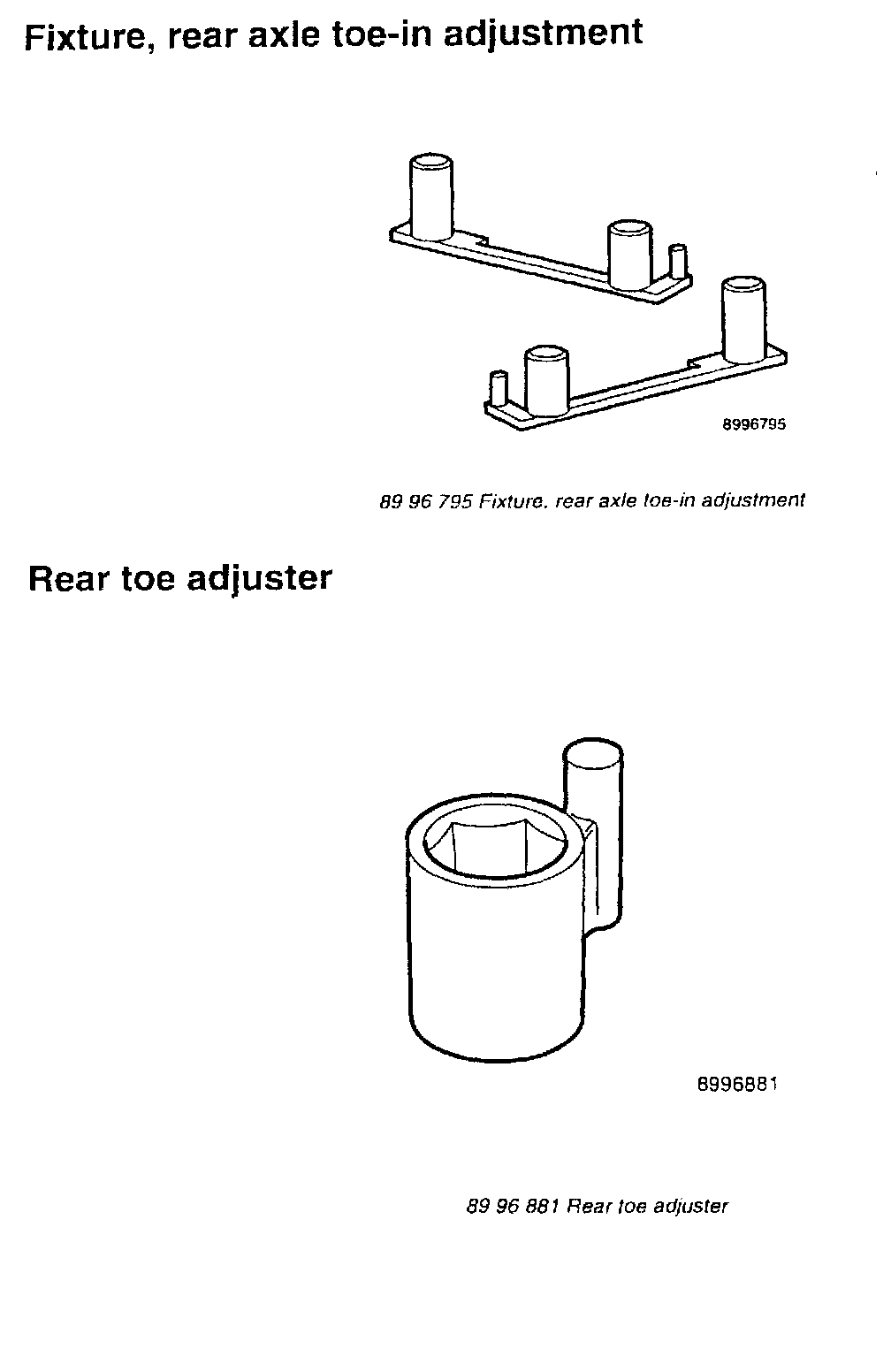

Fixture, rear axle toe-in adjustment, Rear toe adjuster
Tools for overhauls
Intermediate support, Basic fixture, Jig

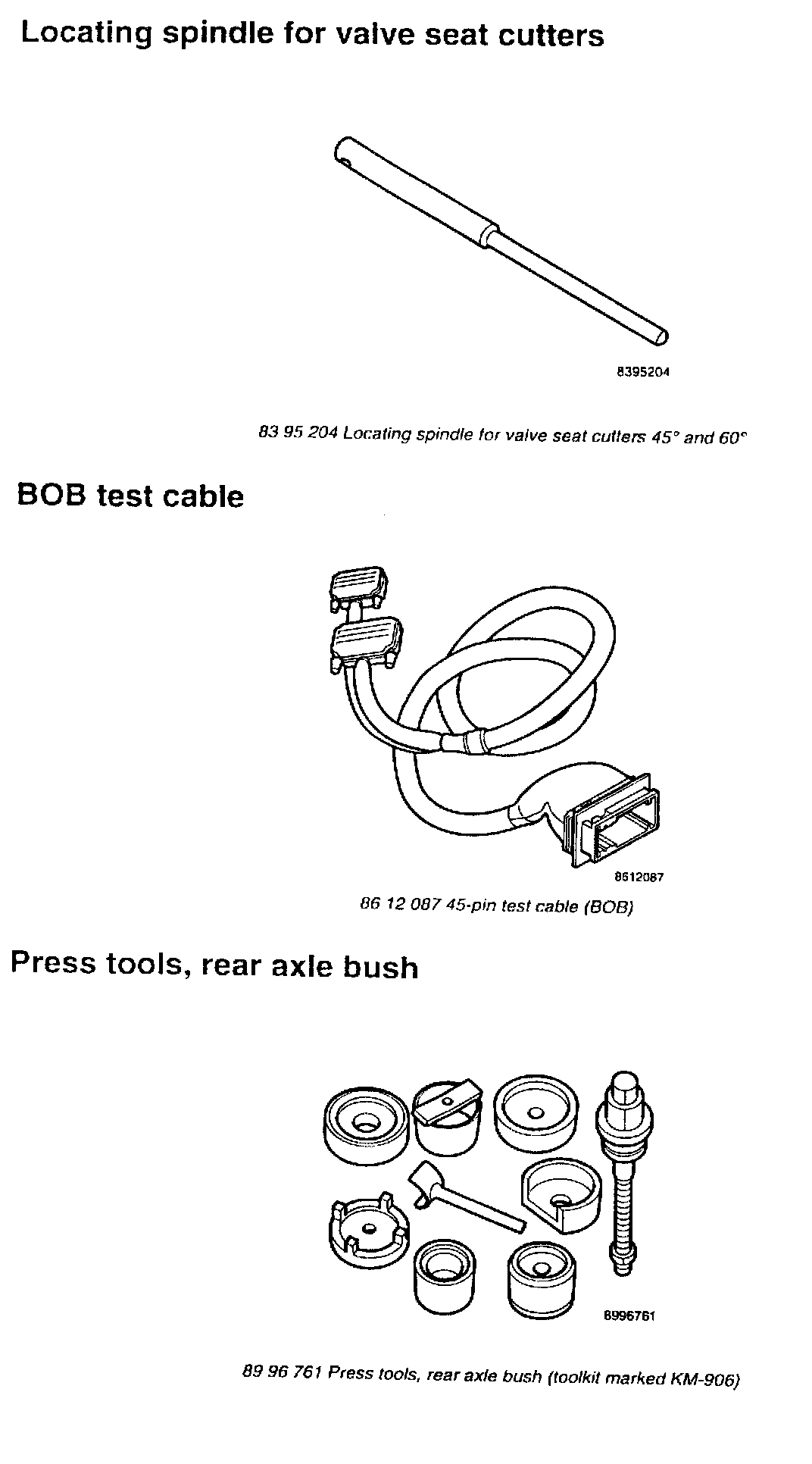

Locating spindle for valve seat cutters, BOB test cable,
Press tools, rear axle bush
Miscellaneous Tools

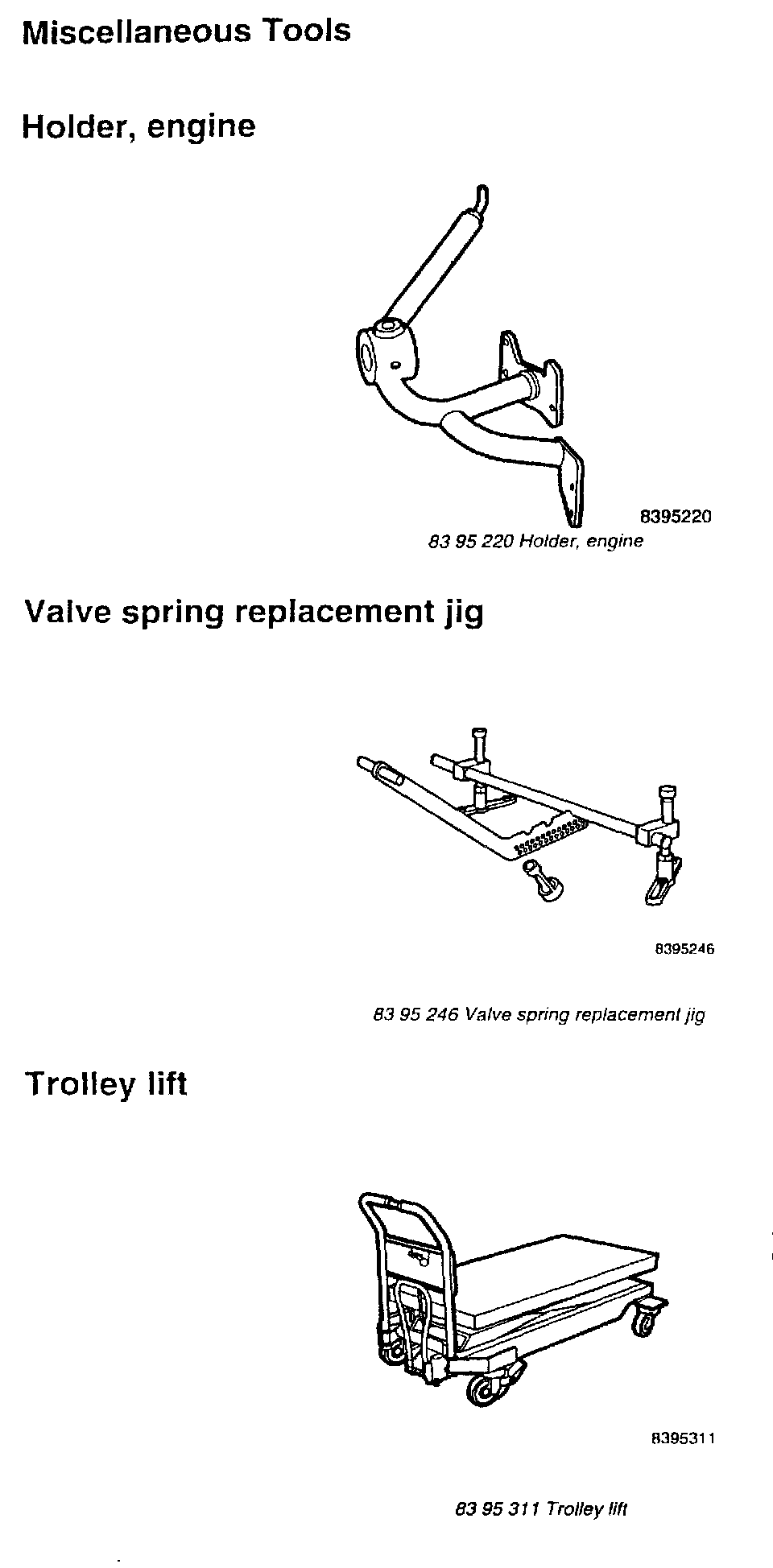

Holder, engine, Valve spring replacement jig, Trolley lift

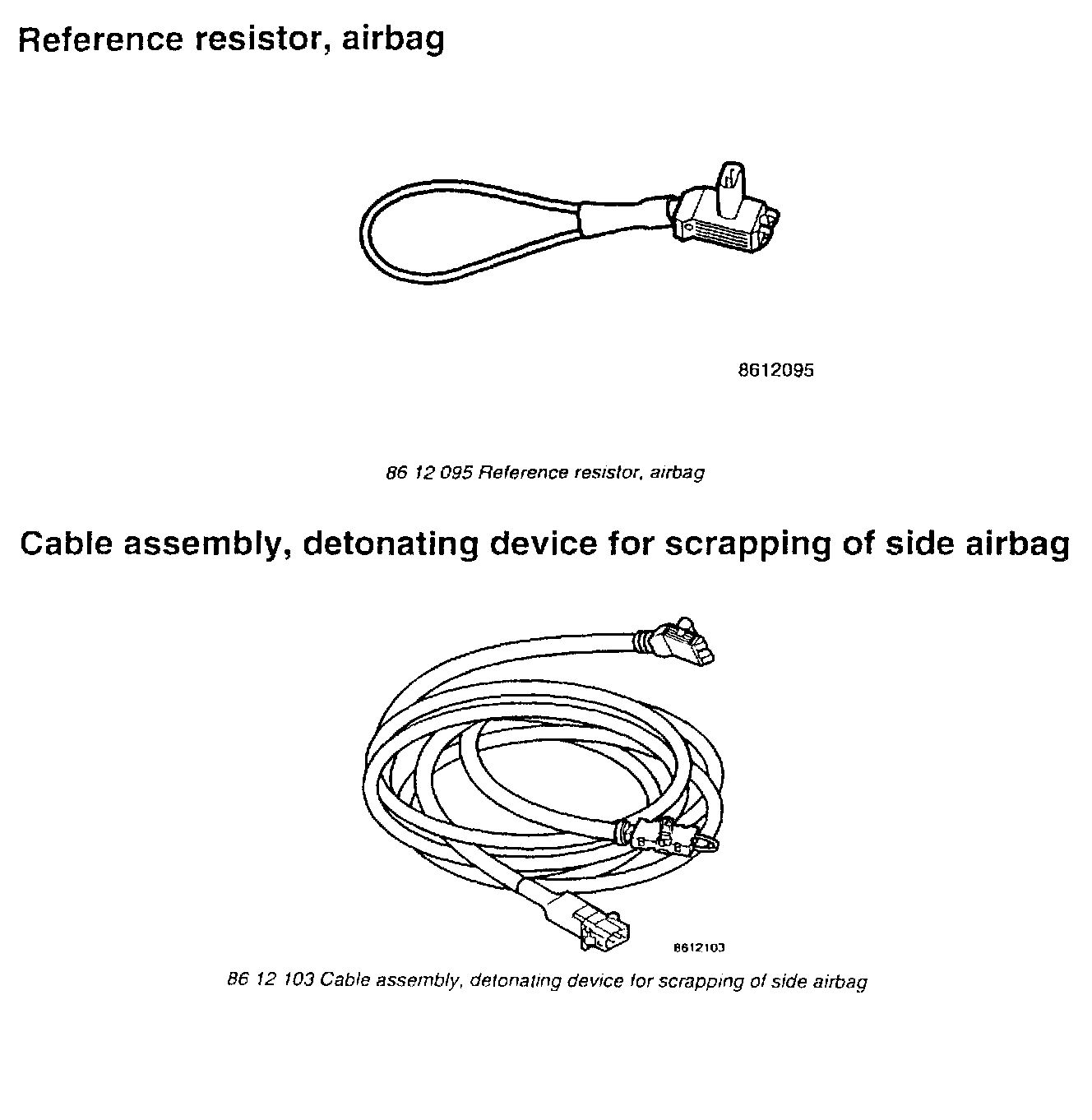

Reference resistor, airbag, Cable assembly, detonating device
for scrapping of side airbag

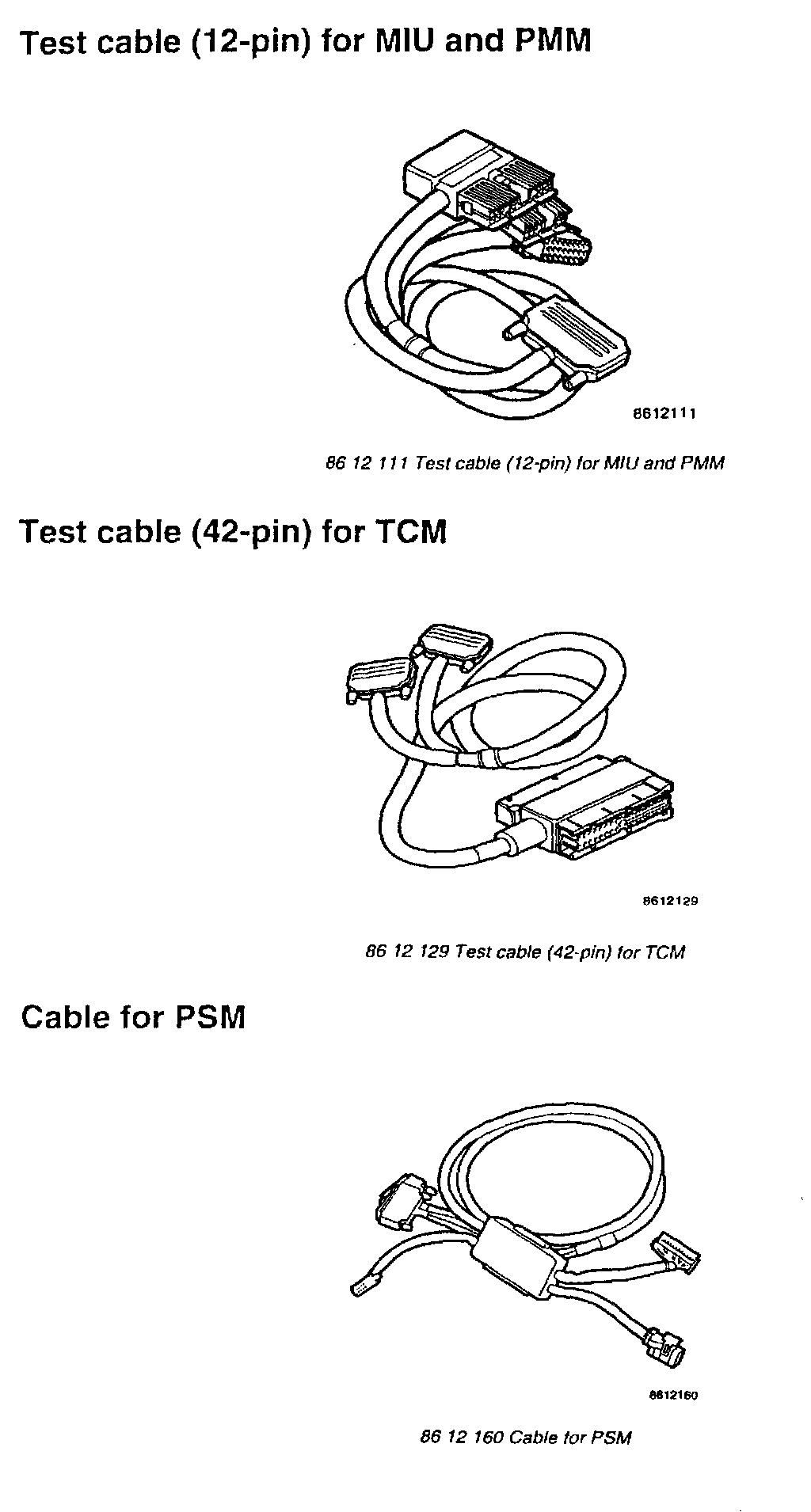

Test cable (12-pin) for MIU and PMM, Test cable (42-pin) for TCM
Cable for PSM
Circlip pliers, oil pump 4-cyl. engine, Socket wrench 27 mm (cam
chain tensioner etc.), Angle gauge 1/2"
This Service Information contains the special tools that have added for the Saab 9-5. Their function is described in the respective service manuals.
NOTE:
Kent-Moore will be shipping all of these tools to each Saab dealer. Not all tools will be available at the same time so shipments will be at different times. A Technical Service Broadcast will be sent advising what is included in each shipment prior to the shipment taking place.
