Automatic Transmission/Transaxle: Tools and Equipment

Sleeve, Drive Shaft Seal
Tool Number 83 90 122





Sliding Hammer
Tool Number 83 90 270





Lifting Beam
Tool Number 83 93 850





Holder V6
Tool Number 83 95 287





Puller, Basic Tool, Drive Shaft Seal
Tool Number 87 91 683





Converter Holder
Tool Number 87 92 574





Trolley Lift
Tool Number 83 94 793
83 94 801 Parent Fixture
83 95 170 Adjusting Feet
83 95 195 Mounting Fixture
83 95 188 Fixture





Flushing Equipment
Tool Number 87 91 824





Test Cable Assembly For Breakout Box (BOB)
Tool Number 86 12 475





Jumper Cable Assembly
Tool Number 86 11 345





Test Cable Assembly For Connector Pins (male)
Tool Number 86 11 352





Test Cable Assembly For Connector Sockets (female)
Tool Number 86 11 410





Test Lamp
Tool Number 86 11 857





Sleeve, Drive Shaft Bearing
Tool Number 87 91 311





Puller, Drive Shaft Seal
Tool Number 87 92 350





Puller, Torque Converter Seal
Tool Number 87 92 384





Adjusting Tool For Position Of Gear Selector Position Sensor
Tool Number 87 92 467

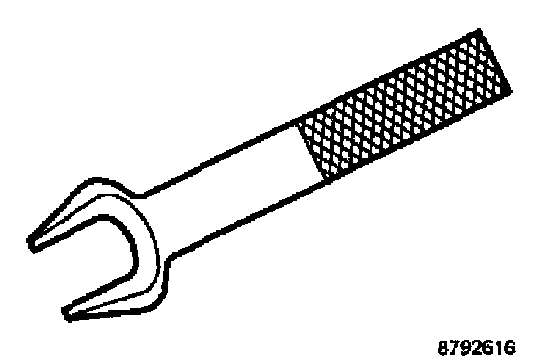

Removing Tool, Drive Shafts
Tool Number 87 92 616





Lifting Tool MKM-886
Tool Number 87 92 608





Protective Collar
Tool Number 87 95 162





Sleeve
Tool Number 87 90 148





Strap, Radiator Core
Tool Number 87 95 212





Lifting Cable
Tool Number 87 92 442





Pressure Gauge
Tool Number 87 91 600





Adapter Set
Tool Number 87 92 301





Tool, fuel Line Separation
Tool Number 83 95 261
