Make-Up Mirror, Changing the Bulb

Make-up mirror, changing the bulb

To remove

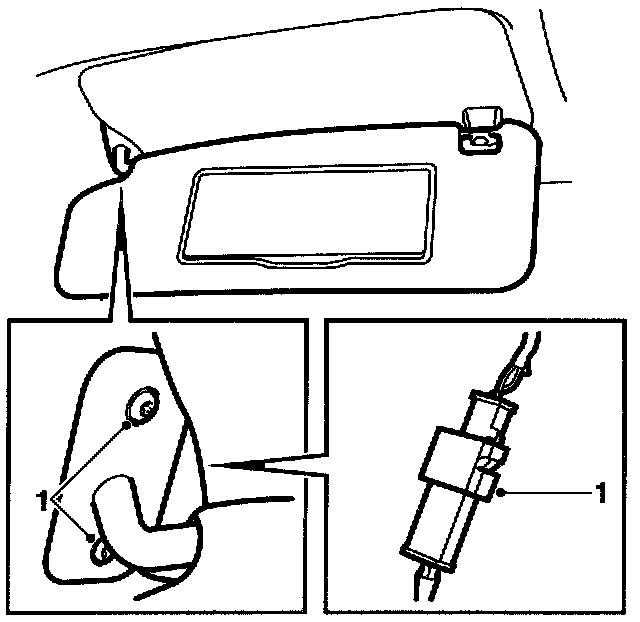

1 Remove the sun visor, 2 screws.
Mirror light:
Unplug the connector for the light.

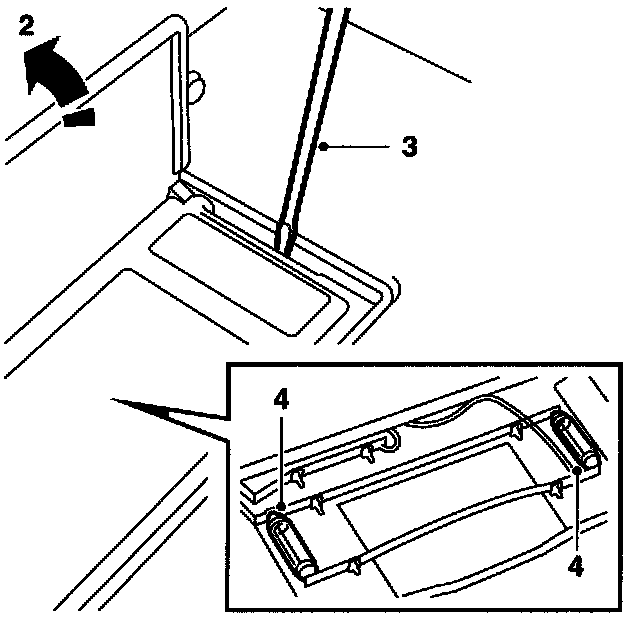

2 Open the mirror cover.
3 Insert a screwdriver between the mirror frame and the frame in the sun visor.
Carefully lever out the mirror frame so that the plastic teeth disengage from the openings in the sun visor frame.
4 Replace the bulbs.

To fit
Fit in reverse order.
