Lumbar Support Adjustment

Lumbar support adjustment

To remove





1 Remove the backrest cover, refer to "Upholstery, Rear Seat Replacement". Service and Repair
There is no need to remove the head restraints or any connectors for the backrest adjustment.

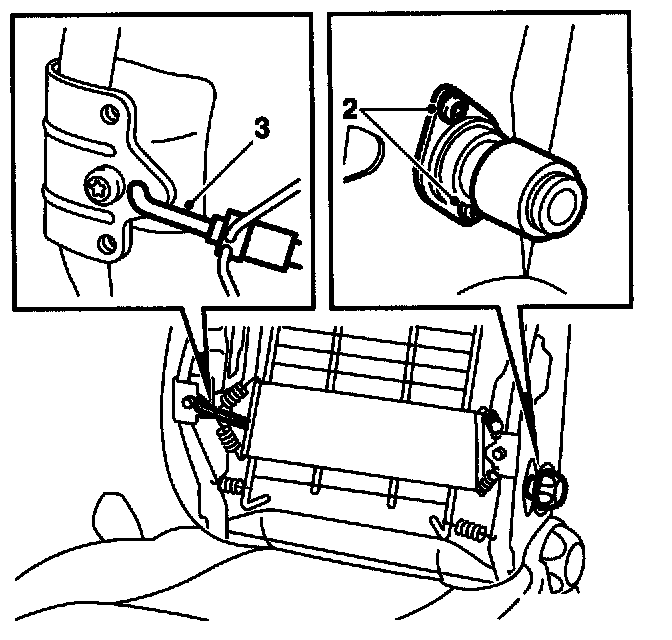

2 Remove the lumbar support mechanism, 2 screws.
3 Detach the hook holding the wire on the opposite side. Undo the clip holding the wire.
4 Lift out the lumbar support mechanism.

To fit
Fit in reverse order.
