Electrically Adjustable Door Mirrors With Memory, LHD (Rev. 1)




Rev. 1: From Y3009267:

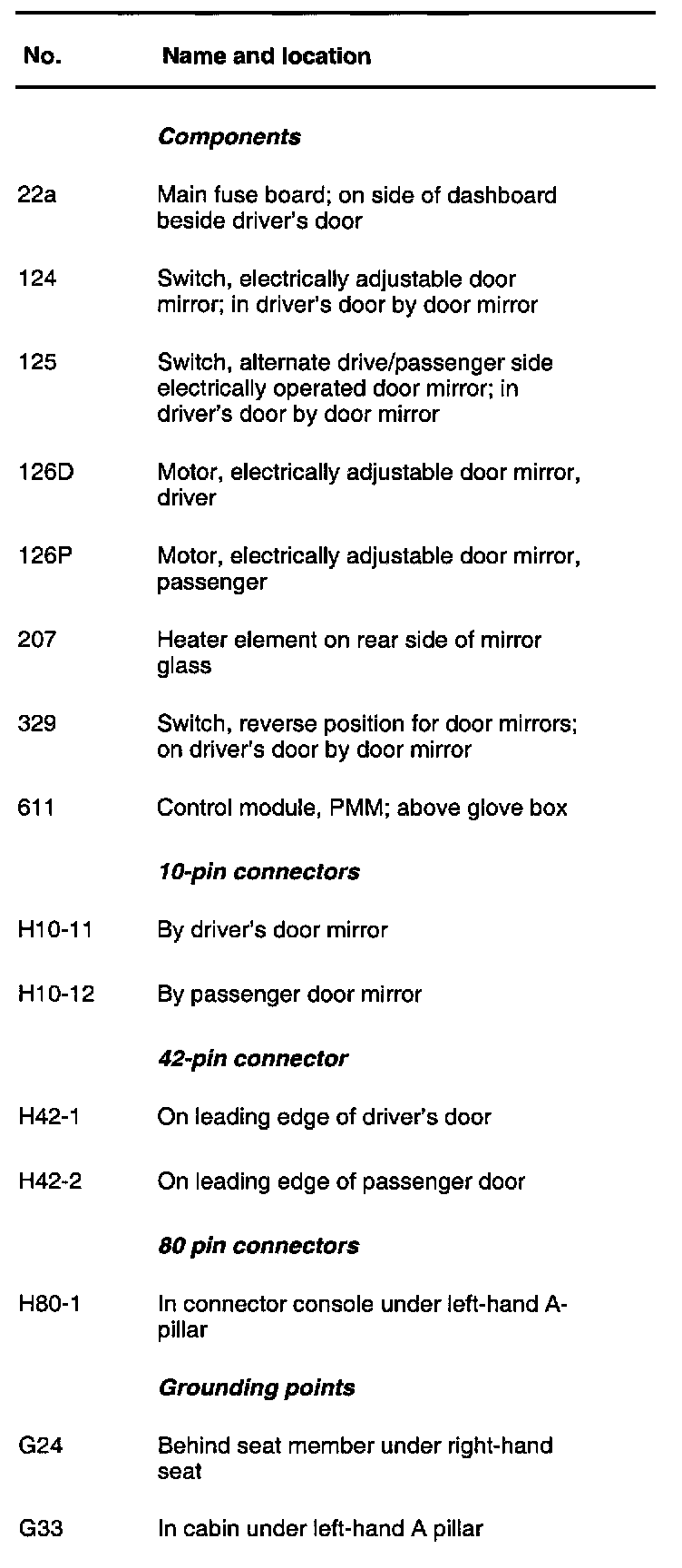

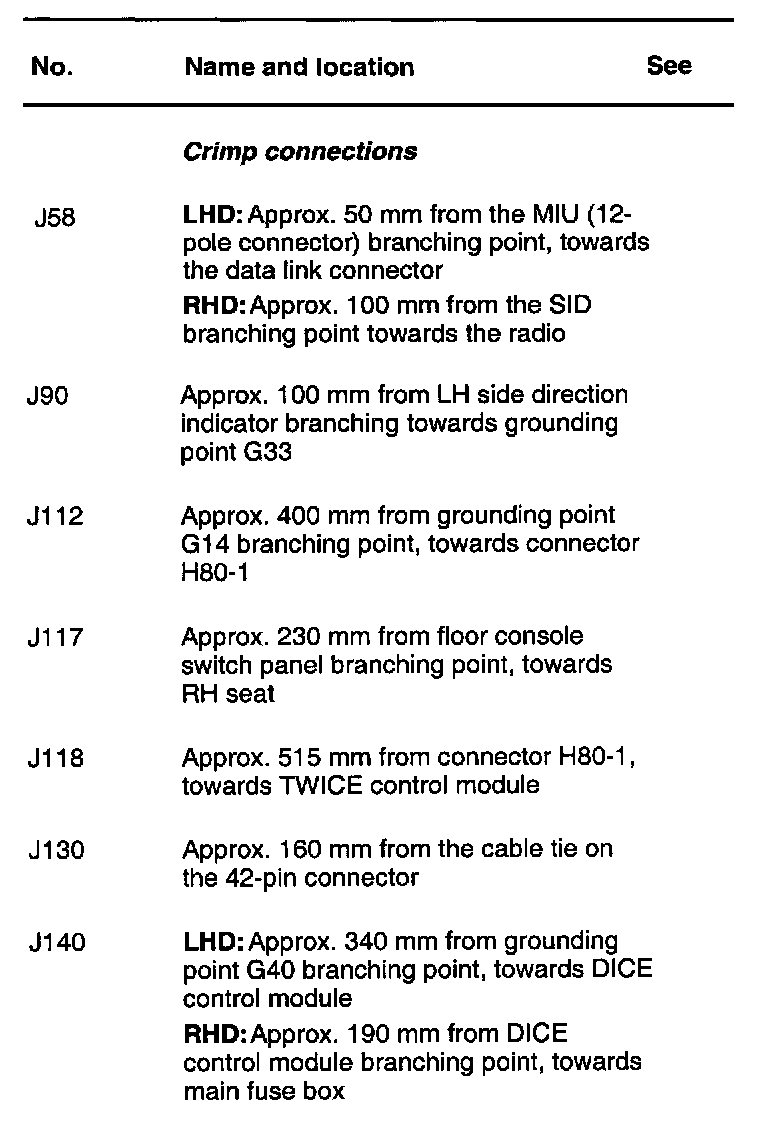

List Of Components
