Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2000
>>
9-5 Aero (9600) L4-2.3L Turbo (B235) HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>

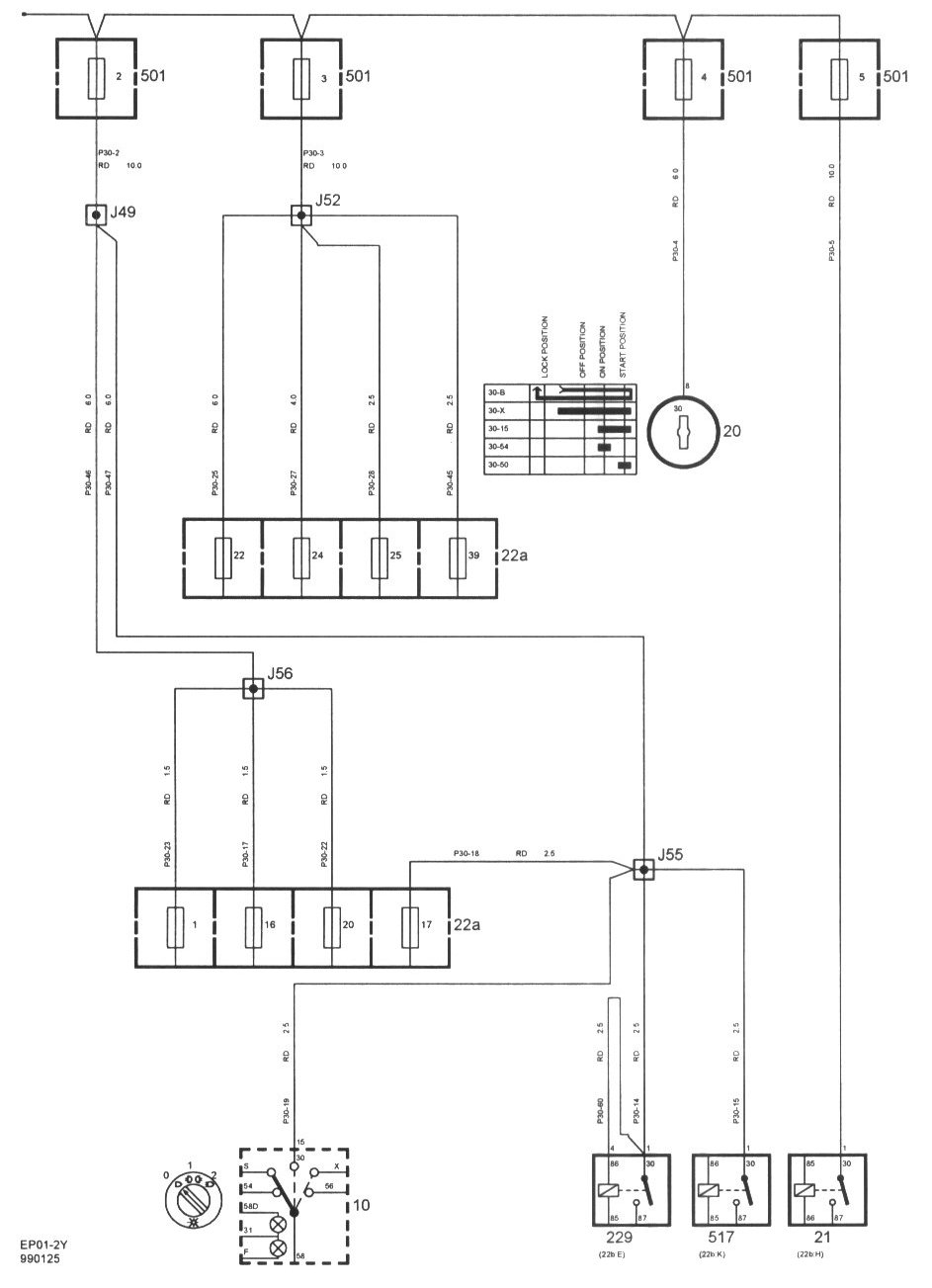

Power Supply +30

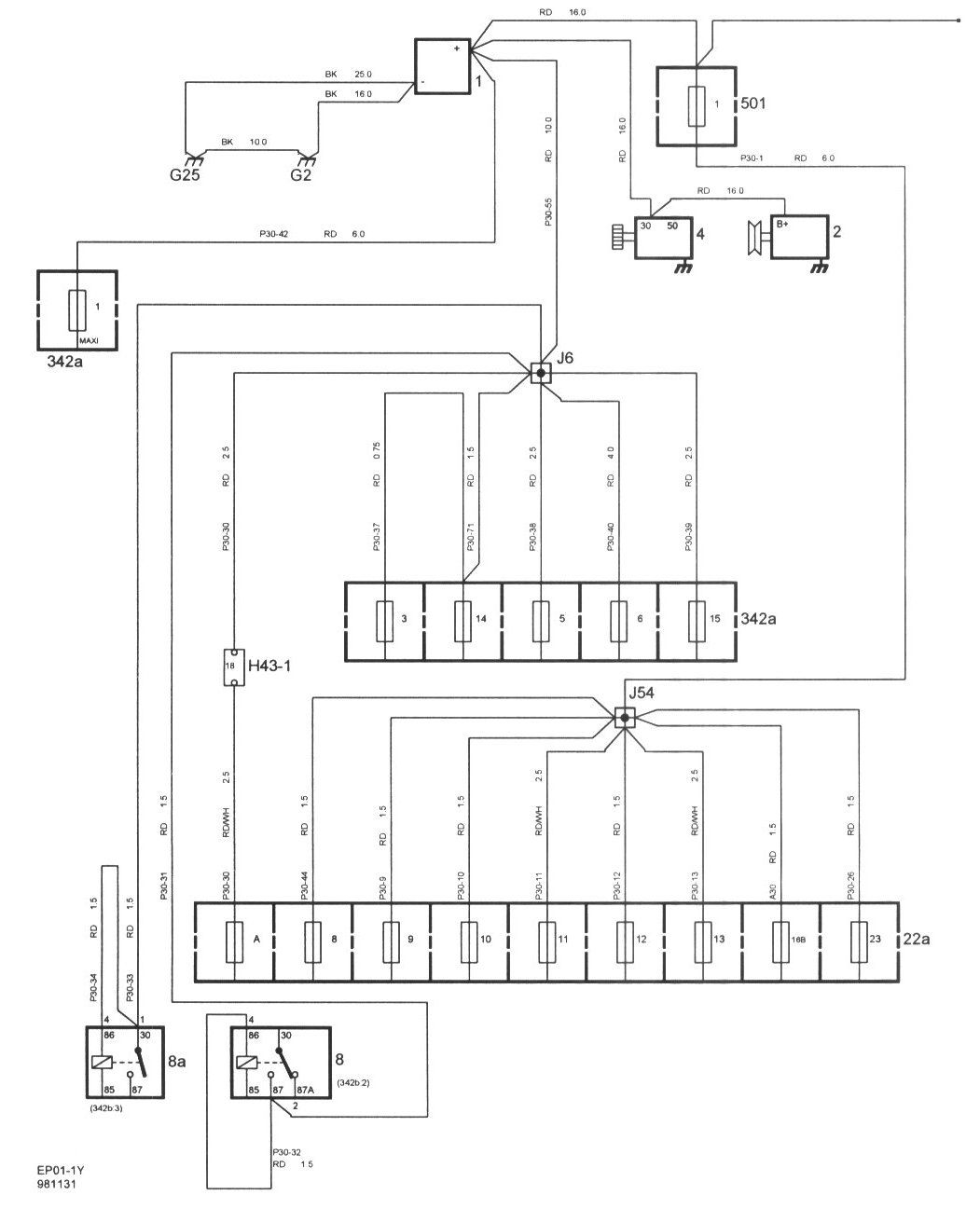

Power Supply +30

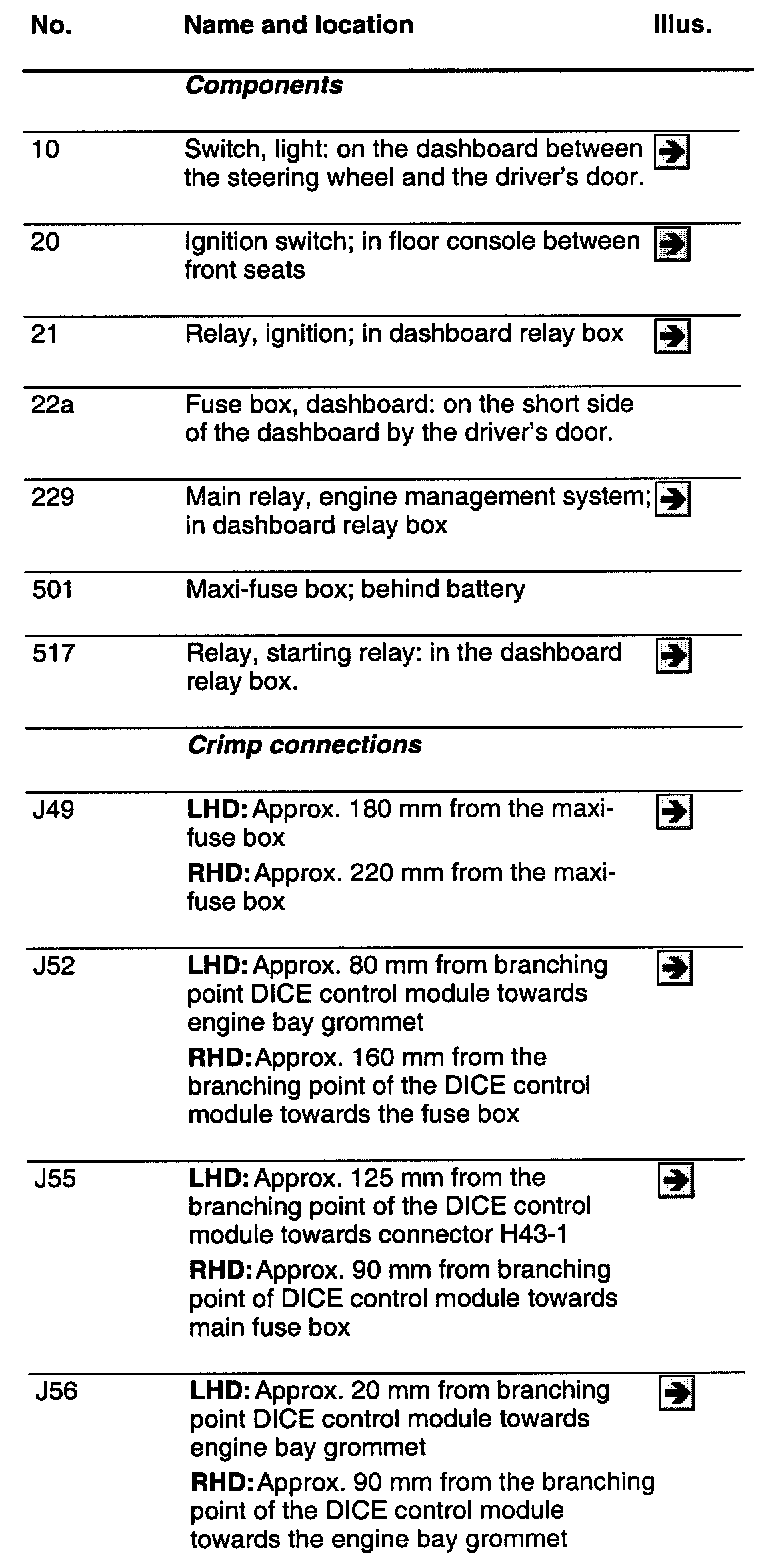

List Of Components:

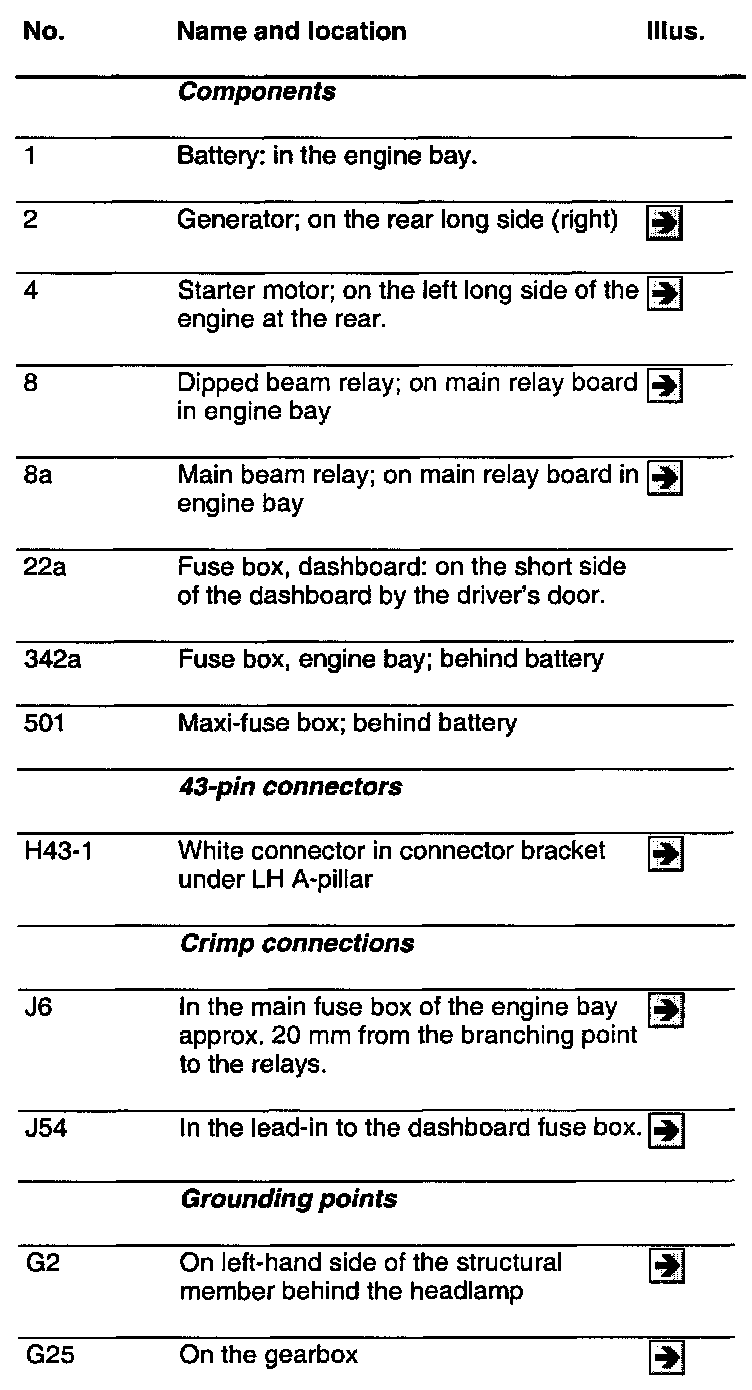

List Of Components:
