Saab
>>
2000
>>
9-5 Aero (9600) L4-2.3L Turbo (B235) HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Integrated Main Unit (5D)
Integrated Main Unit (5D)

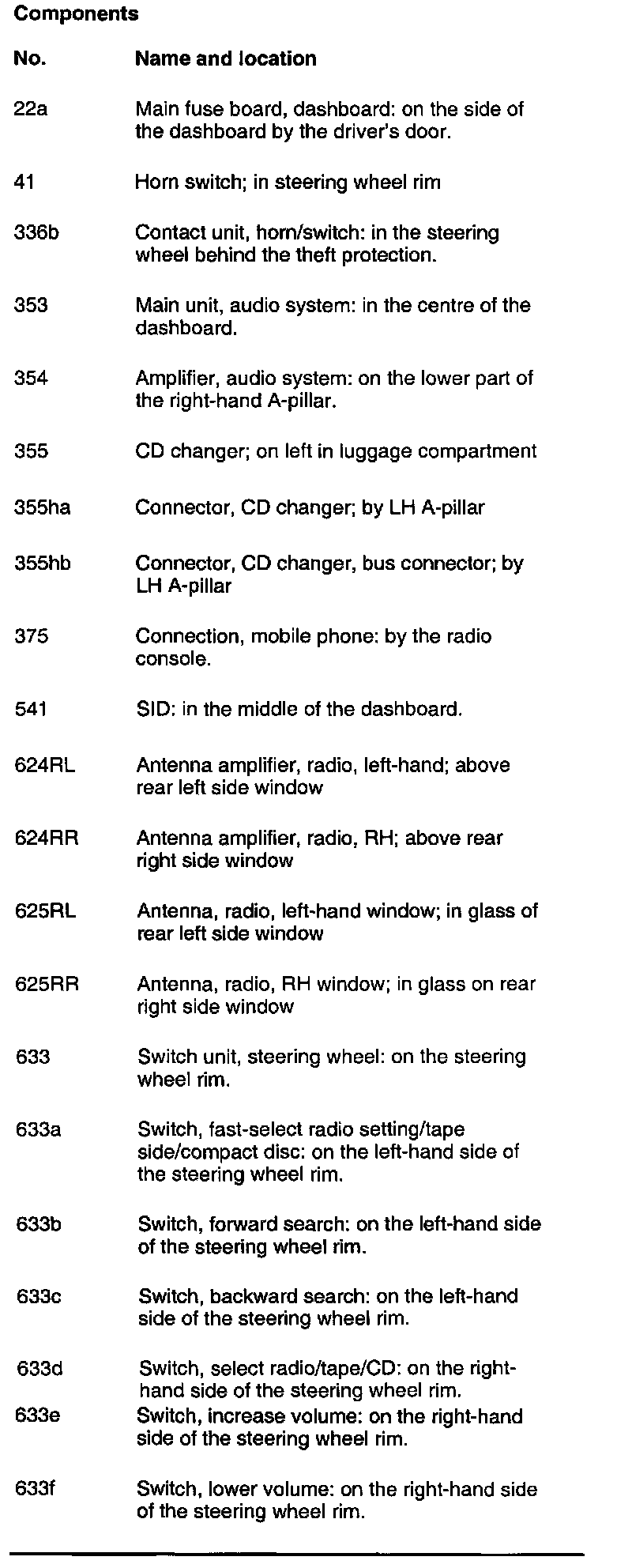

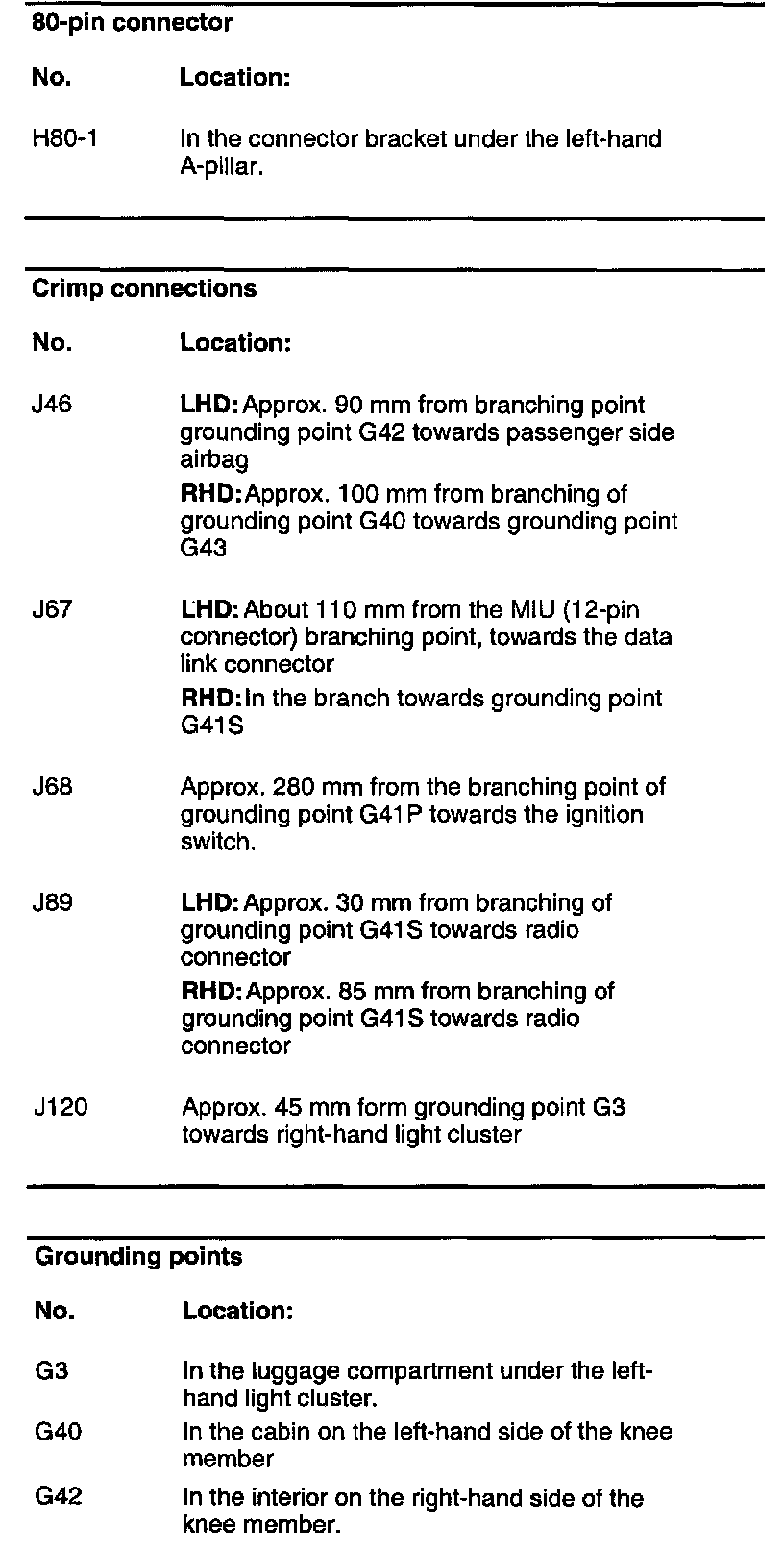

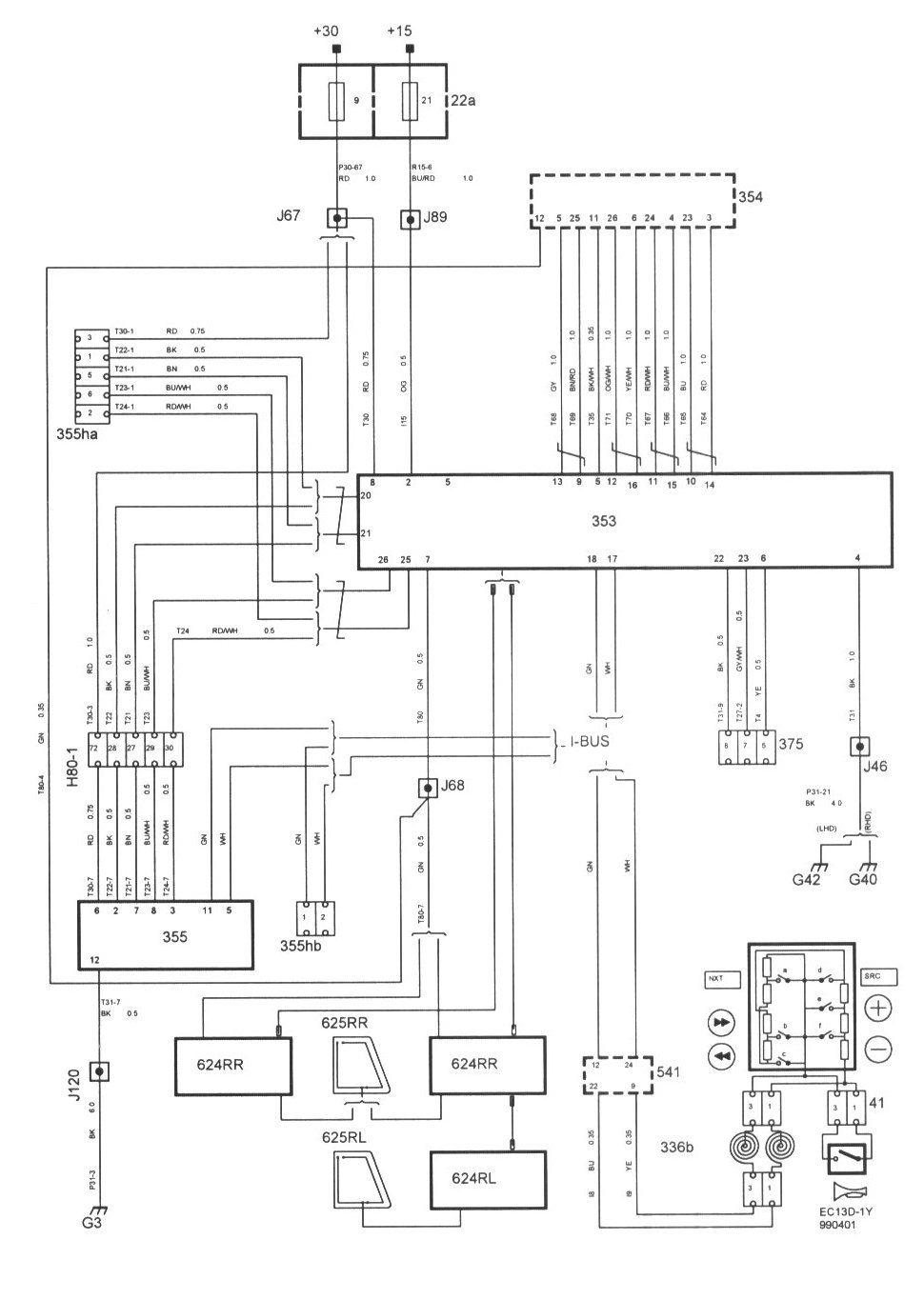

Integrated Main Unit (5D):
