Home >> Saab >> 2000 >> 9-5 Aero (9600) L4-2.3L Turbo (B235) HO >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Supply +54

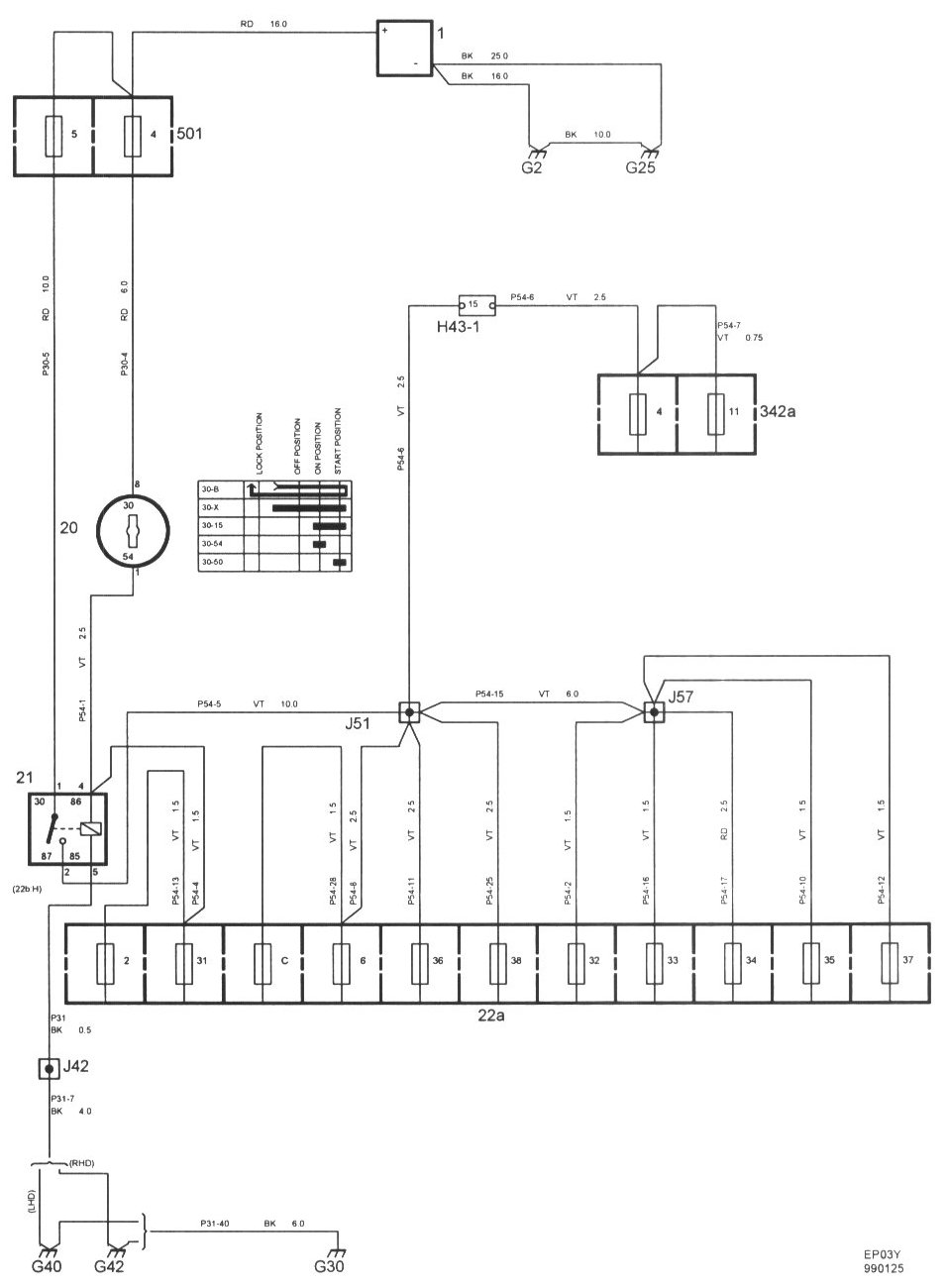

Power Supply +54









List Of Components:
