Grounding Point G14
Grounding Point G14
Location:
On the seat member under the left-hand seat.

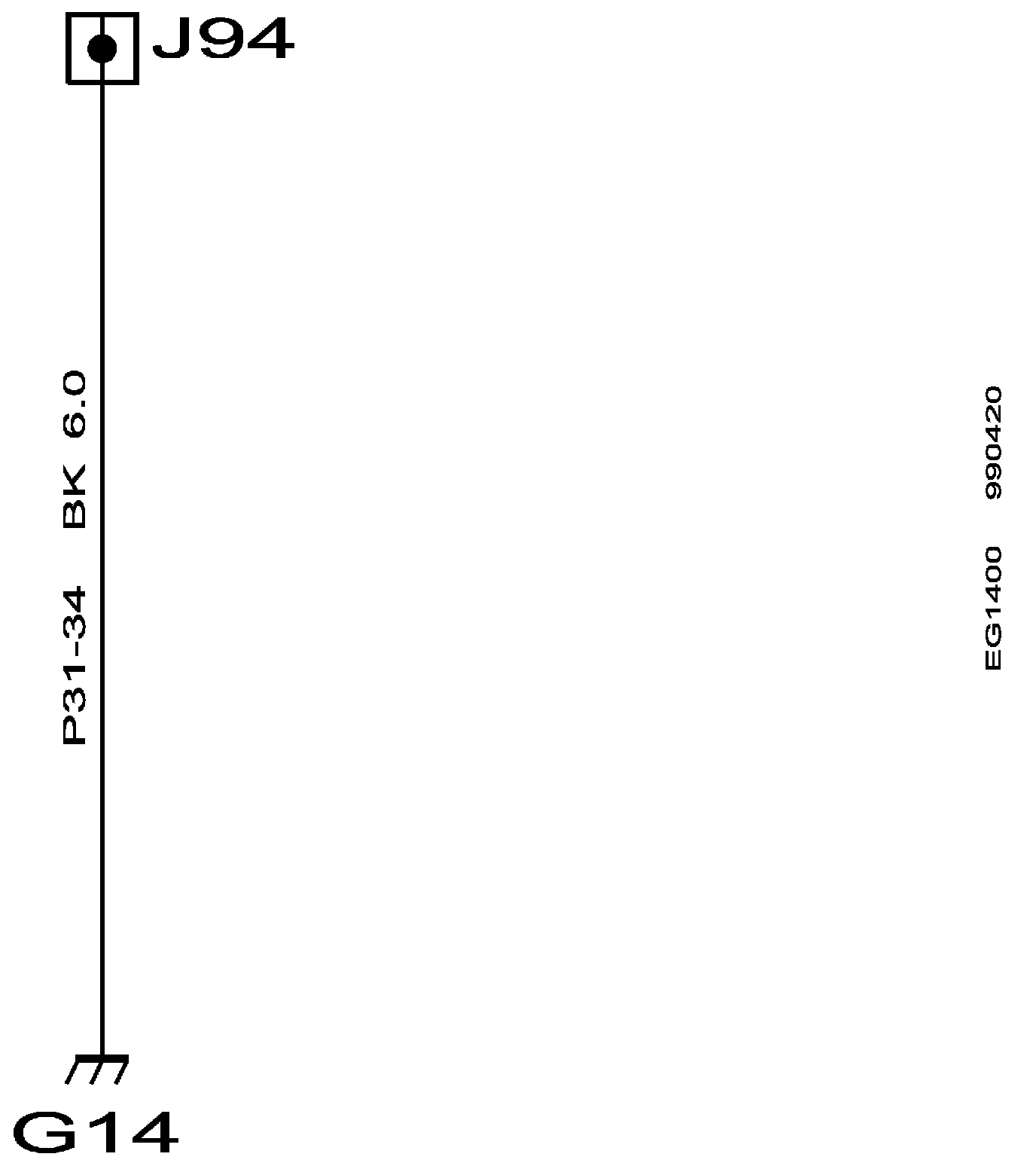

Grounding Point G14:

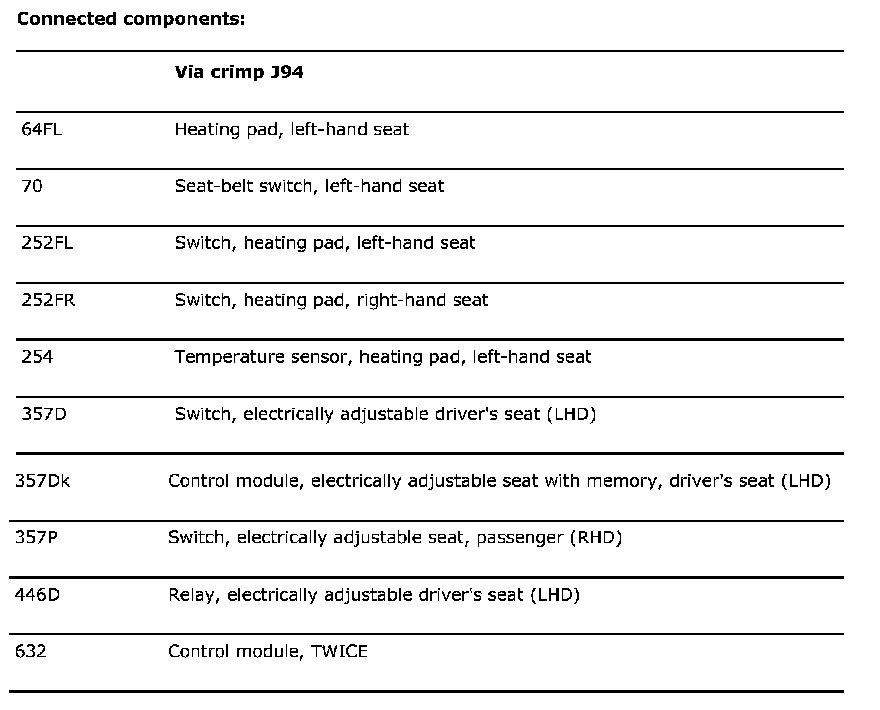

Connected Components:
