Saab
>>
2000
>>
9-5 Aero (9600) L4-2.3L Turbo (B235) HO
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Ground Locations
>>
Grounding Point G44 (4D Only)
Grounding Point G44 (4D Only)

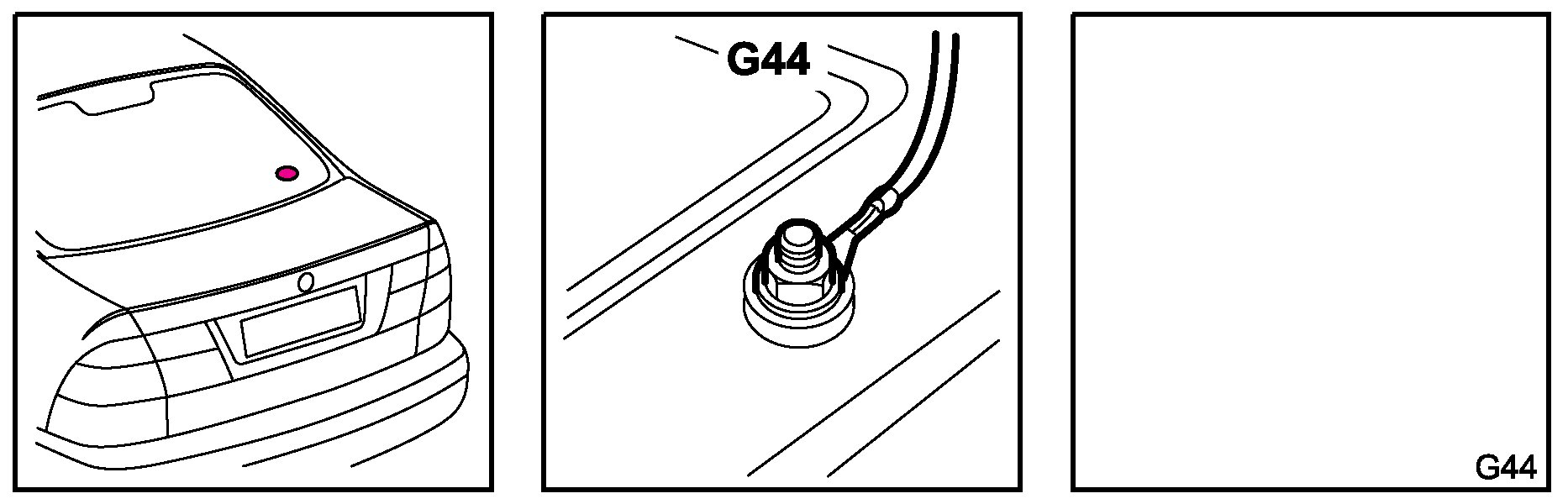

Location
: Above the parcel shelf by the right-hand speaker.

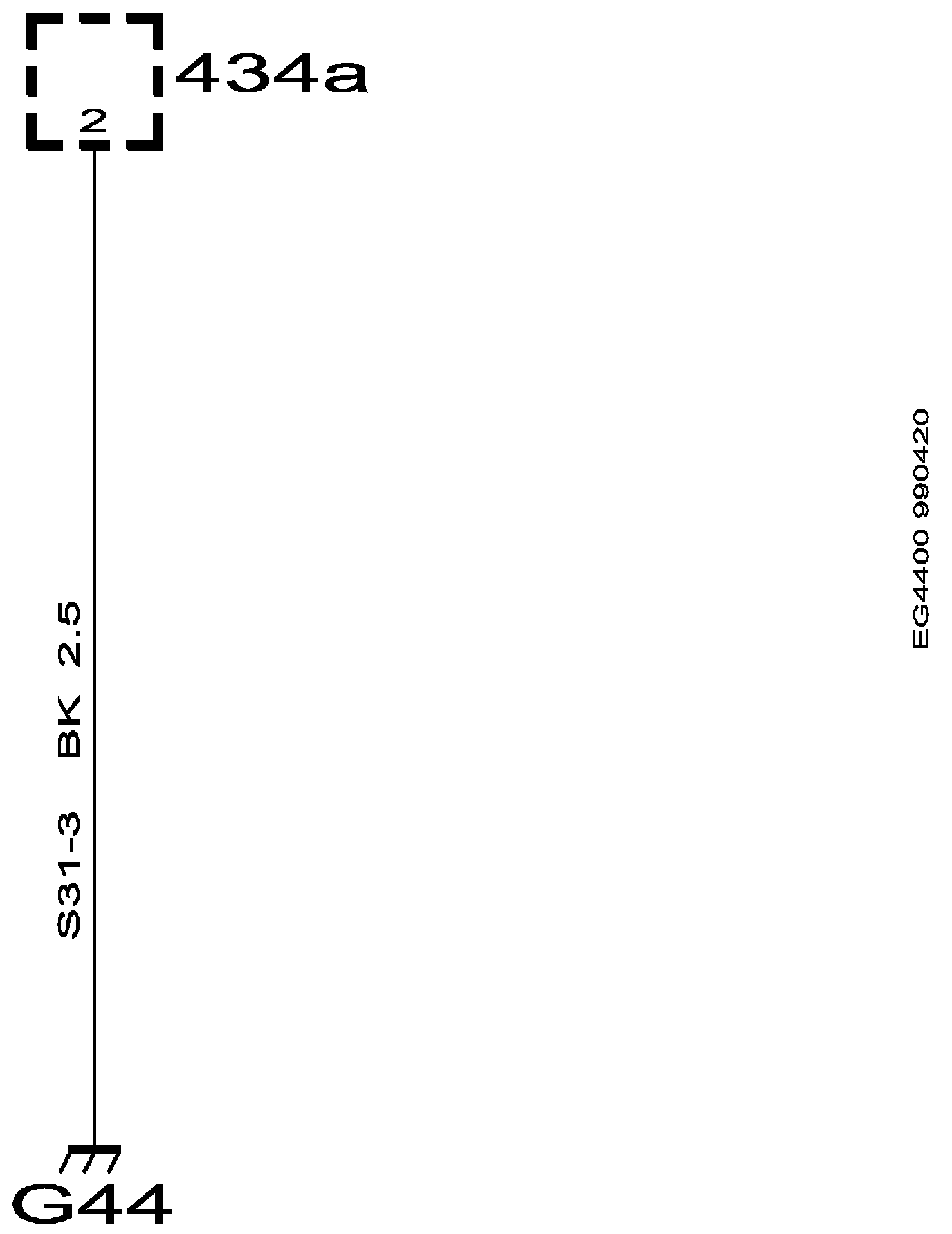

Grounding Point G44 (4D Only):

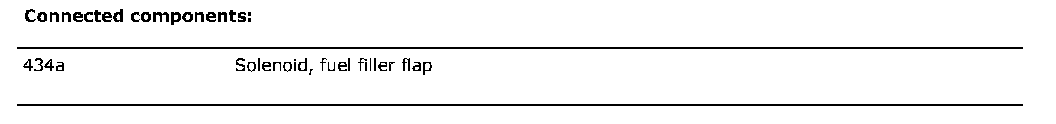

Connected Components:
