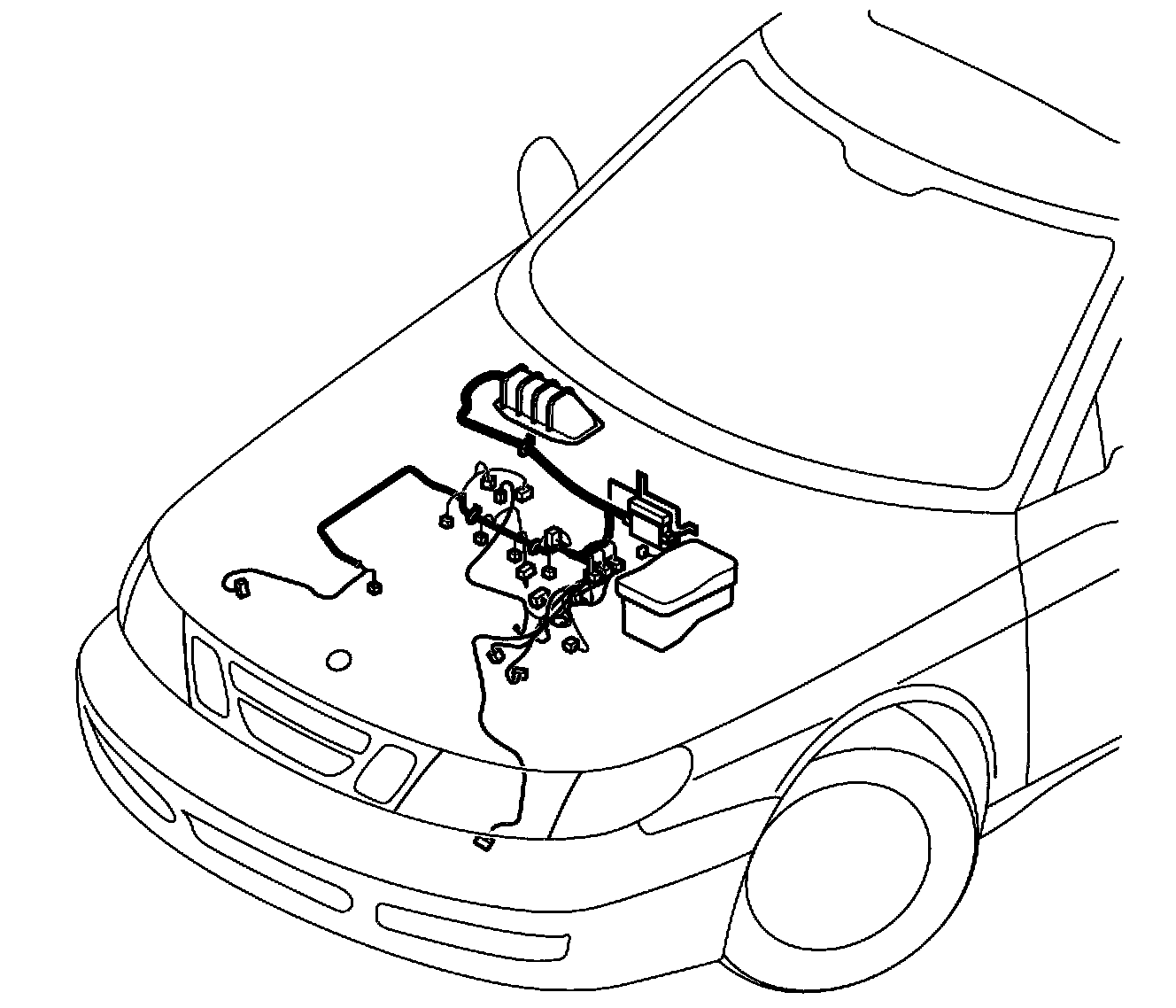

Power Train Wiring Harness

Power train wiring harness, associated components:

SMS Component name
44 Pressure switch, engine oil
136a Heated oxygen sensor
179a Control valve, charge air
202 Coolant temperature sensor
205 Mass air flow sensor
206a Injector, cylinder 1
206b Injector, cylinder 2
206c Injector, cylinder 3
206d Injector, cylinder 4
345 Crankshaft position sensor
346 Ignition discharge module
407 Intake air temperature sensor
430 Control module, Saab Trionic
431 Manifold absolute pressure sensor
603 Pressure sensor, charge air
604 Actuator unit, throttle body
605 Solenoid valve, turbo by-pass
606 Solenoid valve, crankcase ventilation
607 Solenoid, limp-home
H70-1 Connector
