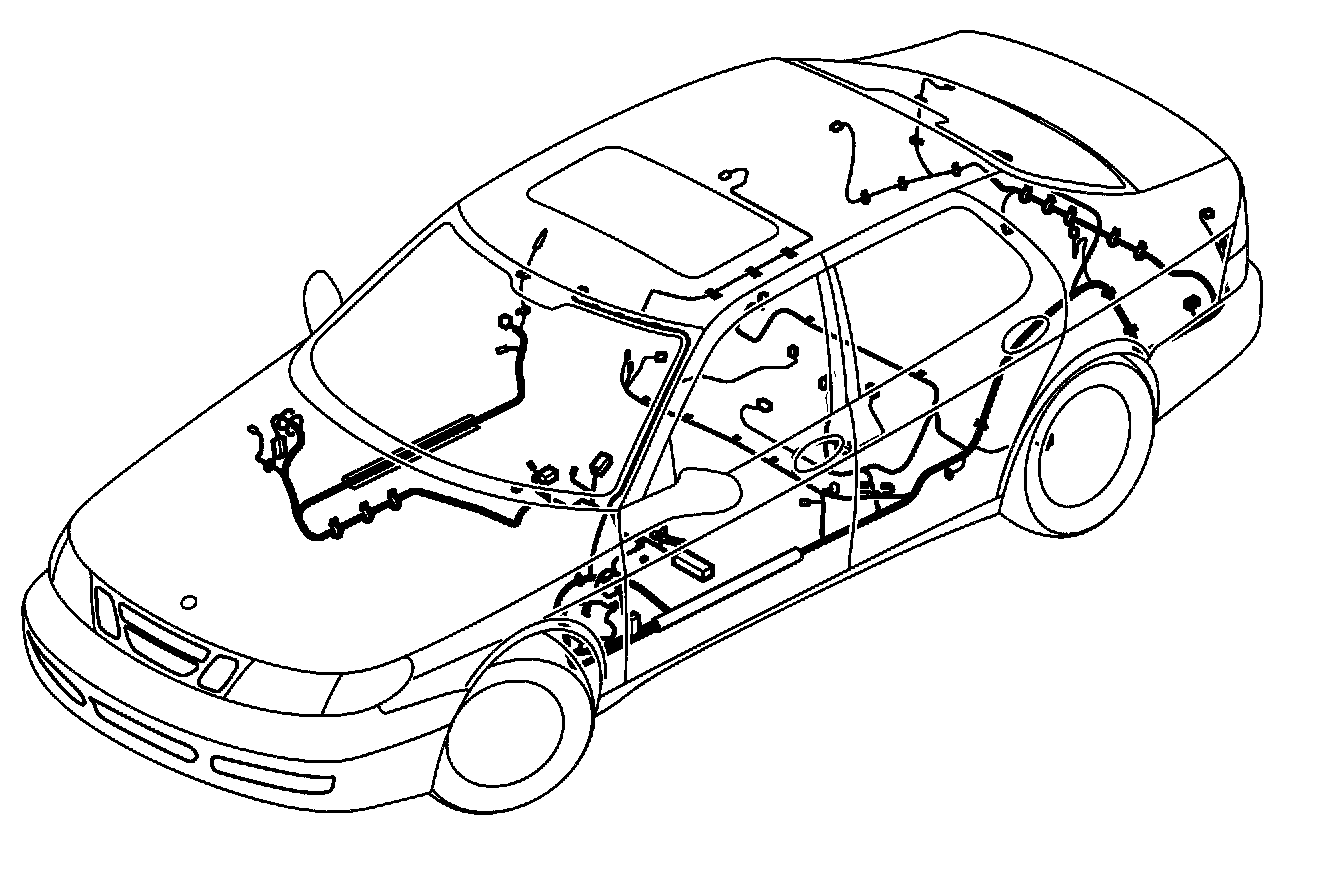

Rear Wiring Harness

Rear wiring harness, associated components:

SMS Component name
Front roof console
14RL Lamp, rear light, LH
14RR Lamp, rear light, RH
46 Level sensor, fuel
54D Door switch, driver's side
54P Door switch, passenger's side
54RL Door switch, rear, LH
55 Lamp, luggage compartment lighting
89LH Lamp, side direction indicators, LH
89RH Lamp, side direction indicators, RH
181 Switch, electrically operated sunroof
182 Motor, electrically operated sunroof
236D Seat-belt tensioner, driver
236P Seat-belt tensioner, passenger
258 Connector, trailer lighting
266RL Loudspeaker, parcel shelf, LH
298RL Wheel speed sensor, LH rear
298RR Wheel speed sensor, RH rear
355 CD changer
359LH Lamp, vanity mirror light, LH
386 Switch unit, electric window lifts
434a Solenoid, central locking system, filler cap
456 Antenna, remote control, central locking system
457 Angle sensor
463 Antenna unit, immobilizer
512RL Heating pad, rear seat, LH
512RR Heating pad, rear seat, RH
514a Switch, simultaneous central locking
611 Control module PMM
613RL Lamp, floor lighting, rear LH
613RR Lamp, floor lighting, rear RH
632 Control module, TWICE
H10-1 Connector
H10-2 Connector
H16-1 Connector
H16-2 Connector
H16-3 Connector
H29-1 Connector
H29-2 Connector
H42-1/4 Connector
H42-2/3 Connector
H43-2 Connector
H80-1 Connector
