Refrigerant Pressure Sensor / Switch: Specifications

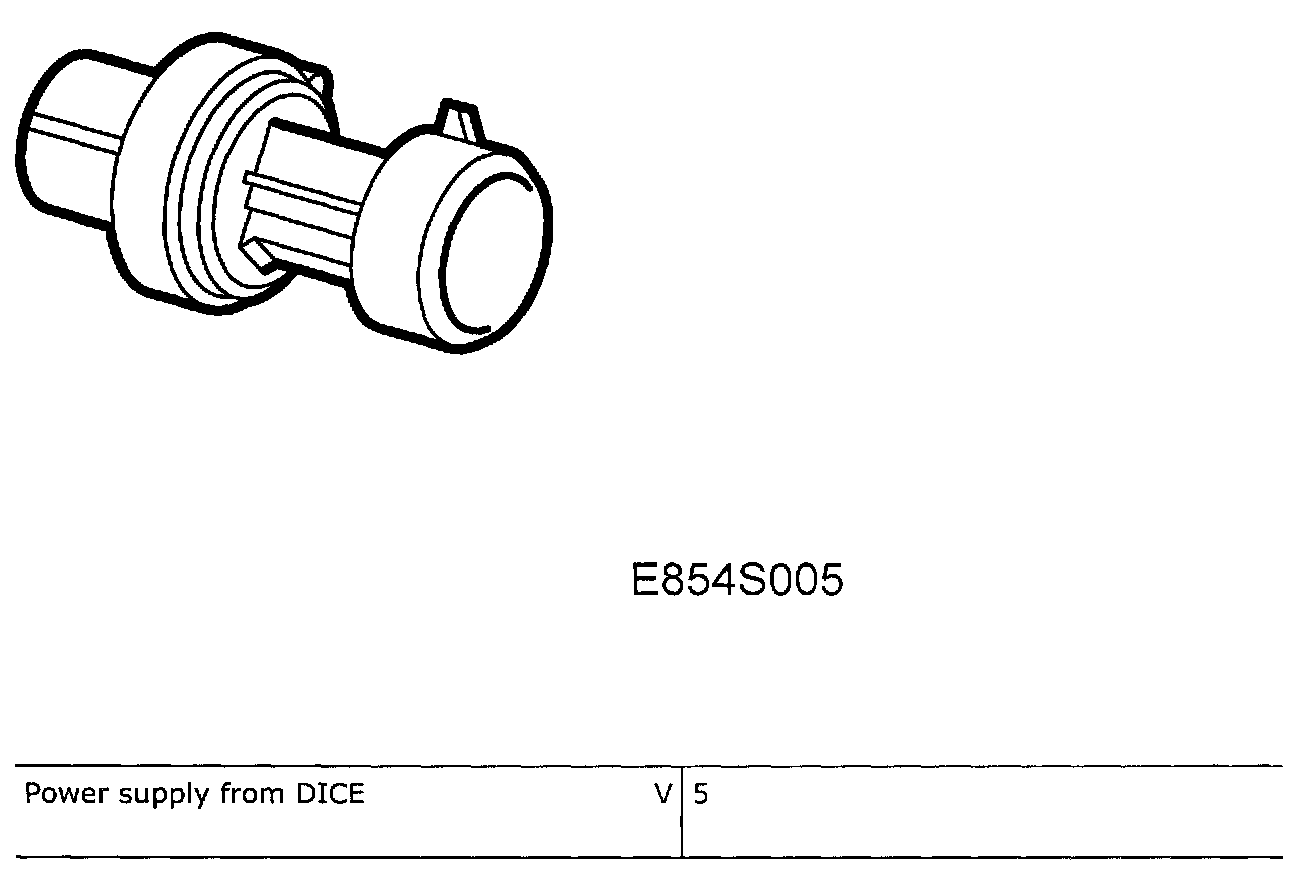

Pressure Sensor (620)

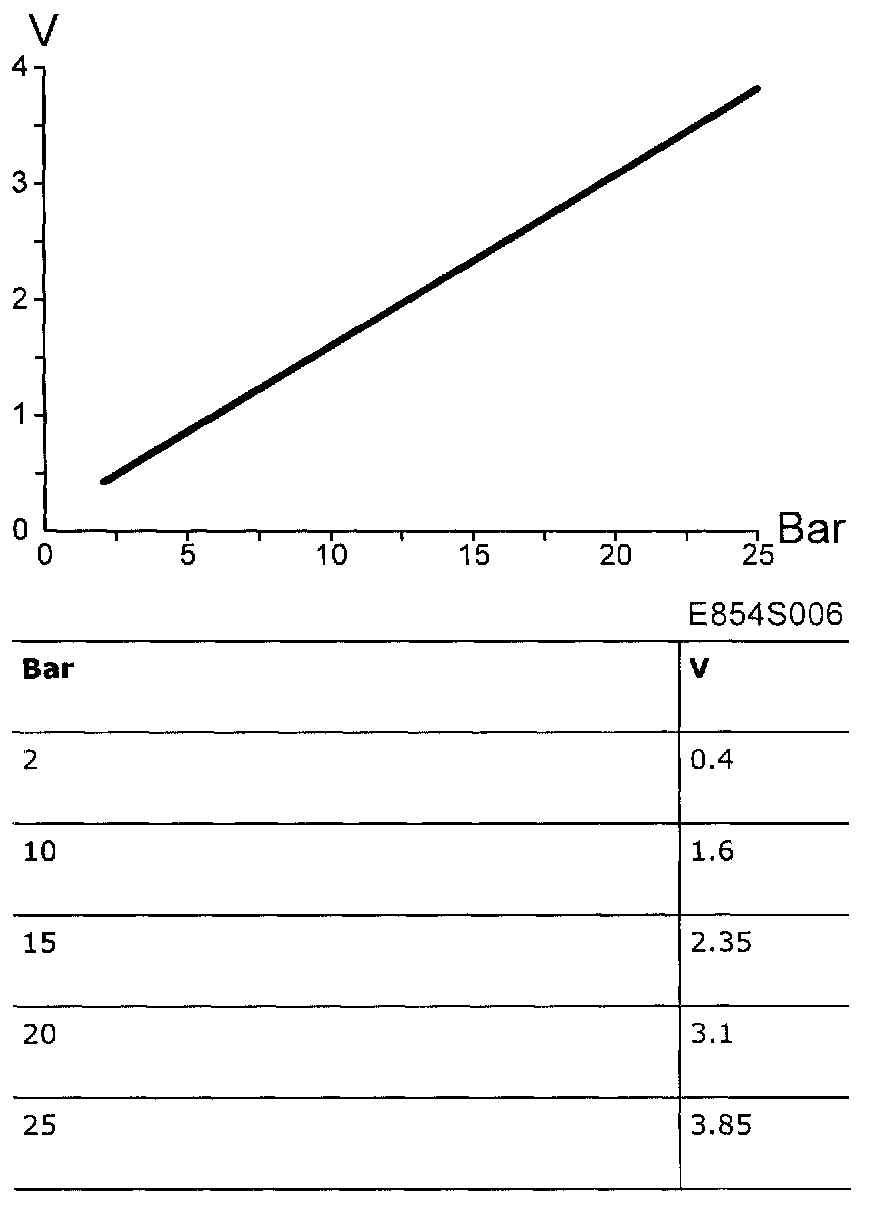

Voltage tolerance is 3 % at stated pressures.
