Transaxle

Extension Piece 3/8" 500mm
Tool Number 82 93 102





Locking Pin, Gear Position Adjustment
Tool Number 87 92 335





Locating Studs
Tool Number 83 92 128





Lifting Beam
Tool Number 83 94 850





Strap
Tool Number 83 95 212

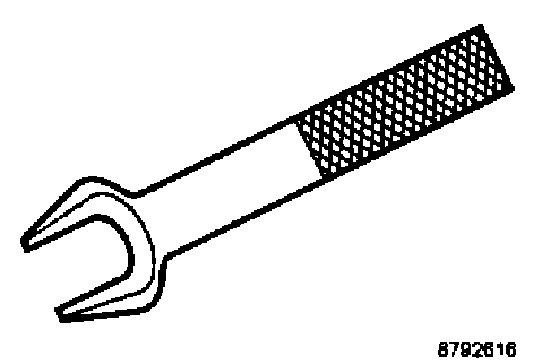

Removing Tool, Drive Shaft
Tool Number 87 92 616





Lifting Tool MKM 886
Tool Number 97 92 608





Protective Collar
Tool Number 83 95 162





Holder, Transmission
Tool Number 87 92 228





Puller, Differential Bearing, 5th Gear Hub
Tool Number 87 92 343





Puller, Wheel Hub
Tool Number 89 96 084





Puller
Tool Number 87 92 566





Sleeve
Tool Number 87 91 410





Attaching Eye, Puller
Tool Number 87 92 129





Puller, 150 mm
Tool Number 87 91 287





Arm, 150 mm
Tool Number 87 91 303





Sleeve, 4th Pinion
Tool Number 83 90 114





Assembly Fixture, 1st-2nd Hub
Tool Number 87 92 103





Arm, 300 mm
Tool Number 87 91 295





Support, Removal Of Pinion Shaft
Tool Number 87 91 188





Ring, Rear Pinion Bearing
Tool Number 87 91 972





Puller, Pinion
Tool Number 87 91 261





Sleeve
Tool Number 87 92 202





Sleeve, Bearing Race
Tool Number 87 91 204





Assembly Ring, Bearing, Input Shaft
Tool Number 87 90 867

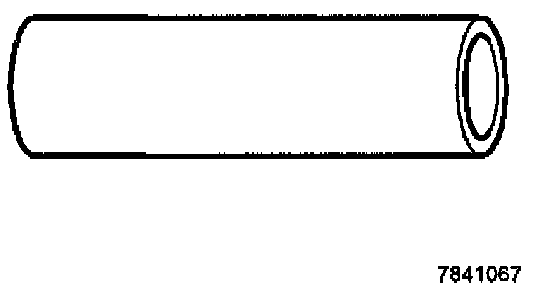

Sleeve, Bearing, Inner Driver
Tool Number 78 41 067





Driver
Tool Number 87 91 428





Support
Tool Number 87 92 517





Assembly Fixture
Tool Number 87 92 582





Kit, Dial Gauge
Tool Number 87 92 194





Mounting, Dial Gauge
Tool Number 87 90 727





Ground Bearing Race
Tool Number 87 92 137





Weight, Differential Bearing
Tool Number 87 92 095





Driver
Tool Number 87 92 053





Millimeter Wheel, 27 mm
Tool Number 87 92 061





Puller Ring, 22 Teeth
Tool Number 87 92 160





Puller Ring, 21 Teeth
Tool Number 87 92 004





Fixture
Tool Number 87 90 636





Puller, Input Shaft
Tool Number 87 92 152





Basic Tool
Tool Number 87 91 642





Puller Ring
Tool Number 87 91 121





Sleeve, Differential Bearing
Tool Number 87 90 487





Drift, Bearing Race, Input Shaft
Tool Number 83 90 312





Sleeve, Drive Shaft Bearing
Tool Number 87 91 311





Drift, Selector Rod Bush
Tool Number 87 91 220





Drift
Tool Number 83 90 122





Drift, Differential Bearing Seal
Tool Number 87 90 800





Assembly Tool, Selector Shaft Seal
Tool Number 87 90 685





Clamp
Tool Number 87 91 709





Drift, Selector Rod Bush
Tool Number 87 91 238





Assembly Tool
Tool Number 87 92 590





Puller, Drive Shaft Seal
Tool Number 87 92 350





Puller
Tool Number 87 91 683





Sleeve
Tool Number 83 90 148





Support
Tool Number 87 91 659





Press Sleeve
Tool Number 87 92 475





Support, Differential Bearing
Tool Number 87 92 210





Torque Wrench
Tool Number 87 92 483





Parent Fixture
Tool Number





Locking Pin, Gear Position Adjustment Long
Tool Number 87 92 632





Removal Tool
Tool Number 87 92 640





Fitting Tool, Drive Shaft Seal
Tool Number 87 92 657





Support
Tool Number 87 92 236





Floor Stand
Tool Number 78 74 878





Sliding Hammer
Tool Number 83 90 270





Parent Fixture
Tool Number 83 94 801





Press Sleeve
Tool Number 87 90 859





Mounting
Tool Number 87 92 087
