Main Components, Front Wipers

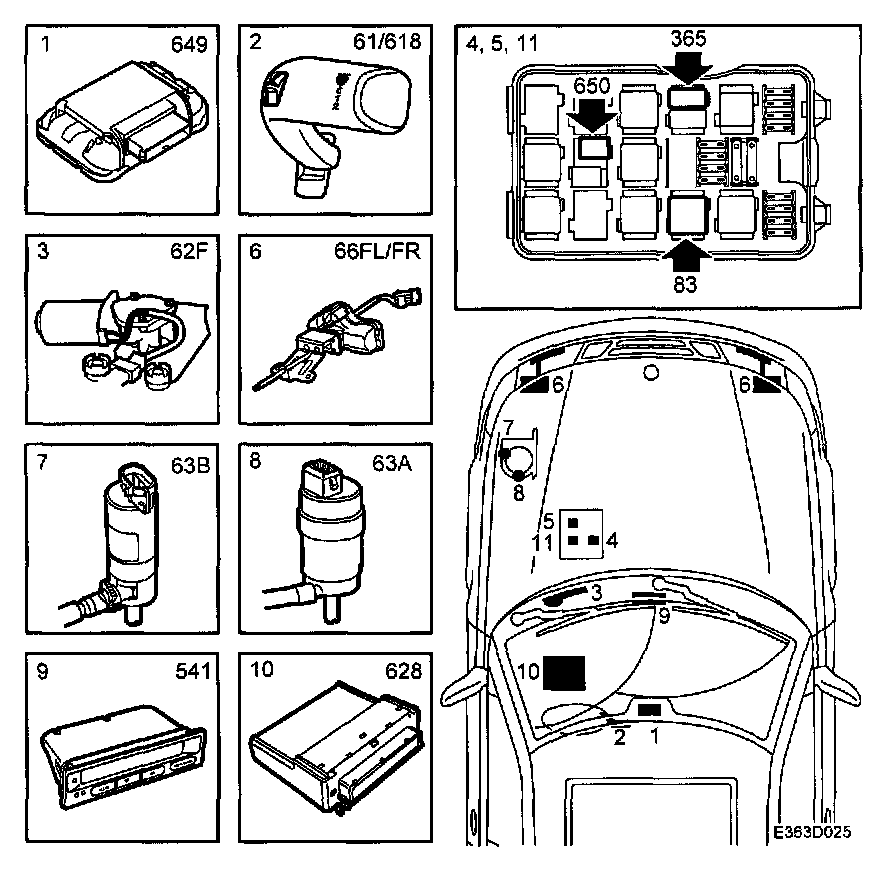

Main components, front wipers





1. Rain sensor (649)
2. Windscreen wiper switch (61, 618)
3. Windscreen wiper motor (62F)
4. Rain sensor relay (650)
5. Relay, intermittent wiper (83)
6. Headlamp wiper motor (66FL/66FR)
7. Washer fluid motor (63b)
8. Washer fluid motor (63a)
9. SID (541)
10. DICE (628)
11. Headlamp wiper relay (365)
