Panel Lighting

Replacing the front panel







1 Remove the main unit.

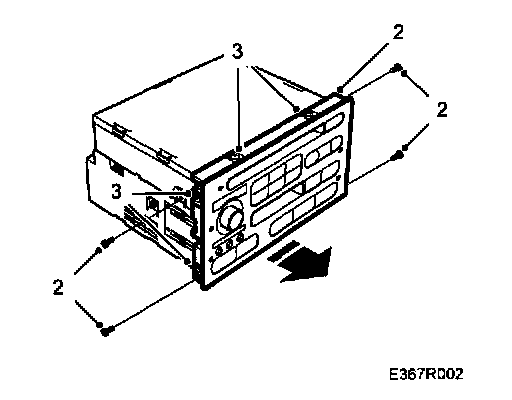

2 Remove the tour screws in the front panel.







3 Undo the six locking tabs which hold the front panel in place.

NOTE: When refitting, ensure that the connector under the front panel is correctly positioned.

To fit
Fit the front panel on the main unit and slide in the main unit.
