Height Adjustment, Manual Seat



Height adjustment, manual seat

To remove





1 Take the front seat out of the car, refer to "Front Seat Replacement". [1][2]Procedures
2 Remove the height adjustment lever and backrest adjustment knob.

Note: When removing the knob, note that the backrest rake spindle may be removed with the knob.

3 Raise the seat as far as possible and remove the height adjustment lever.

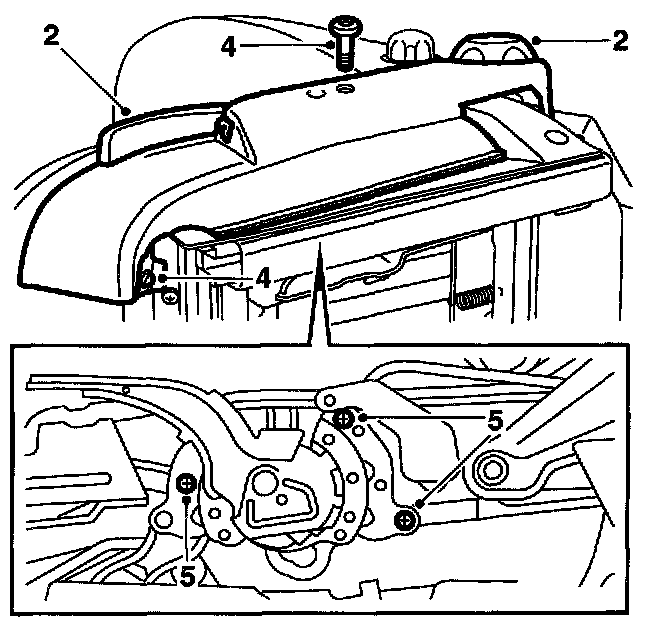

4 Remove the upper seat cowl, 2 covers and 3 screws. Lift the cowl at the back and pull forward.
5 Remove the height adjustment mechanism, 3 screws.

To fit
Fit in reverse order.

Note: For ease of fitting, the seat can be pressed down when the height adjustment mechanism is inserted.
