Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2000
>>
9-5 Aero Wagon (9600) L4-2.3L Turbo (B235) HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
Supplementary Restraint System, LHD
Supplementary Restraint System, LHD

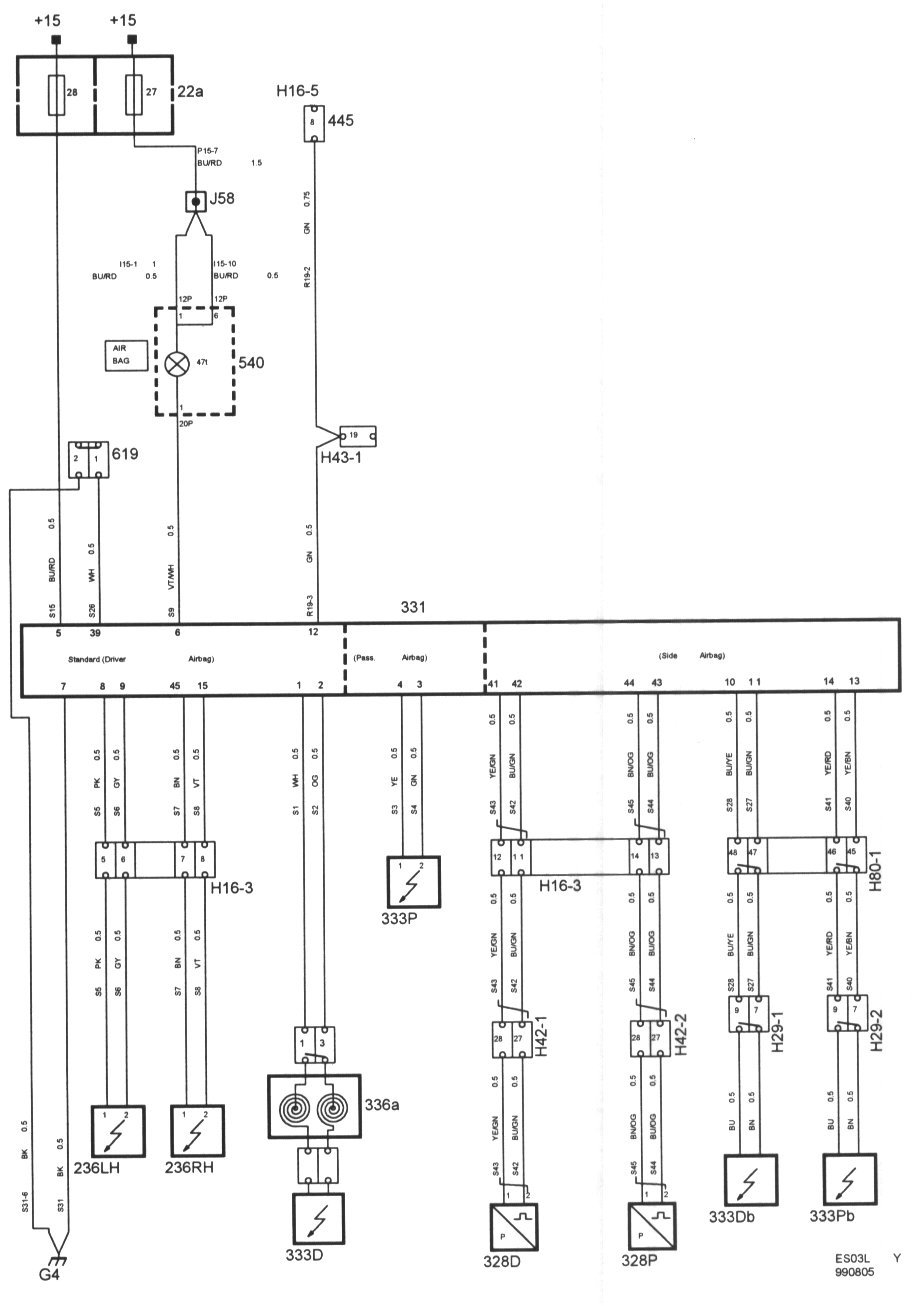

Wiring Diagram:

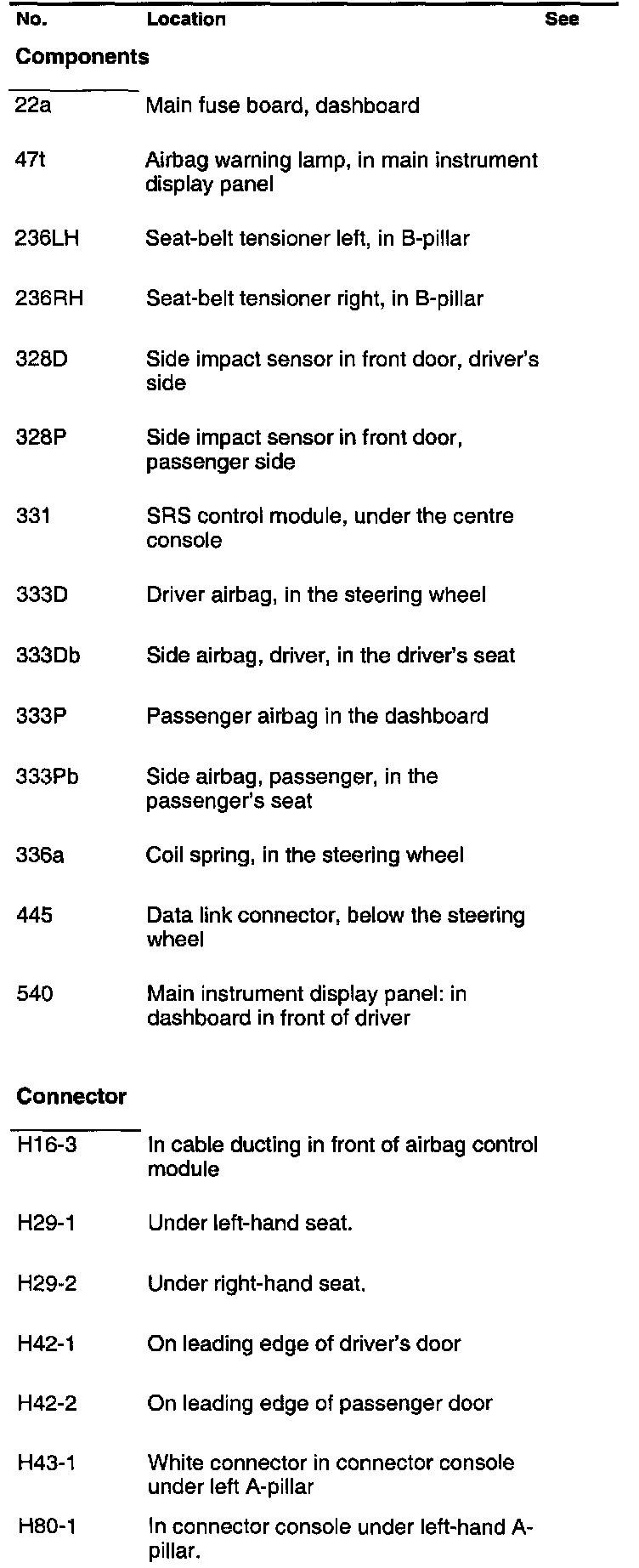

Component List, Part 1:

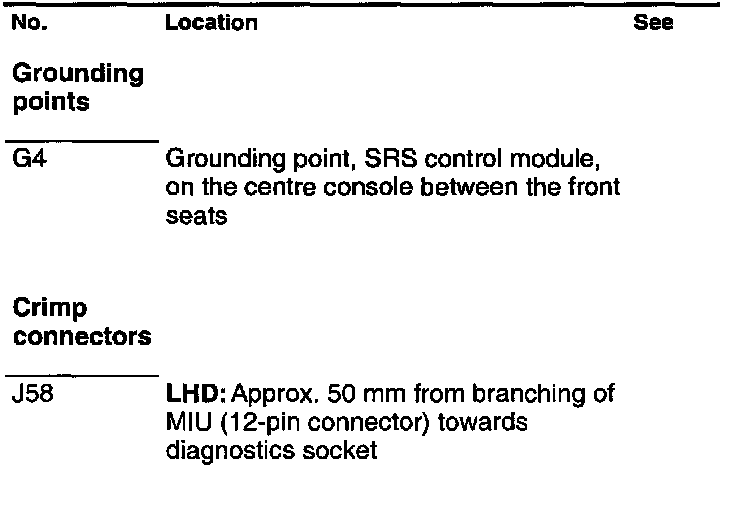

Component List, Part 2:
