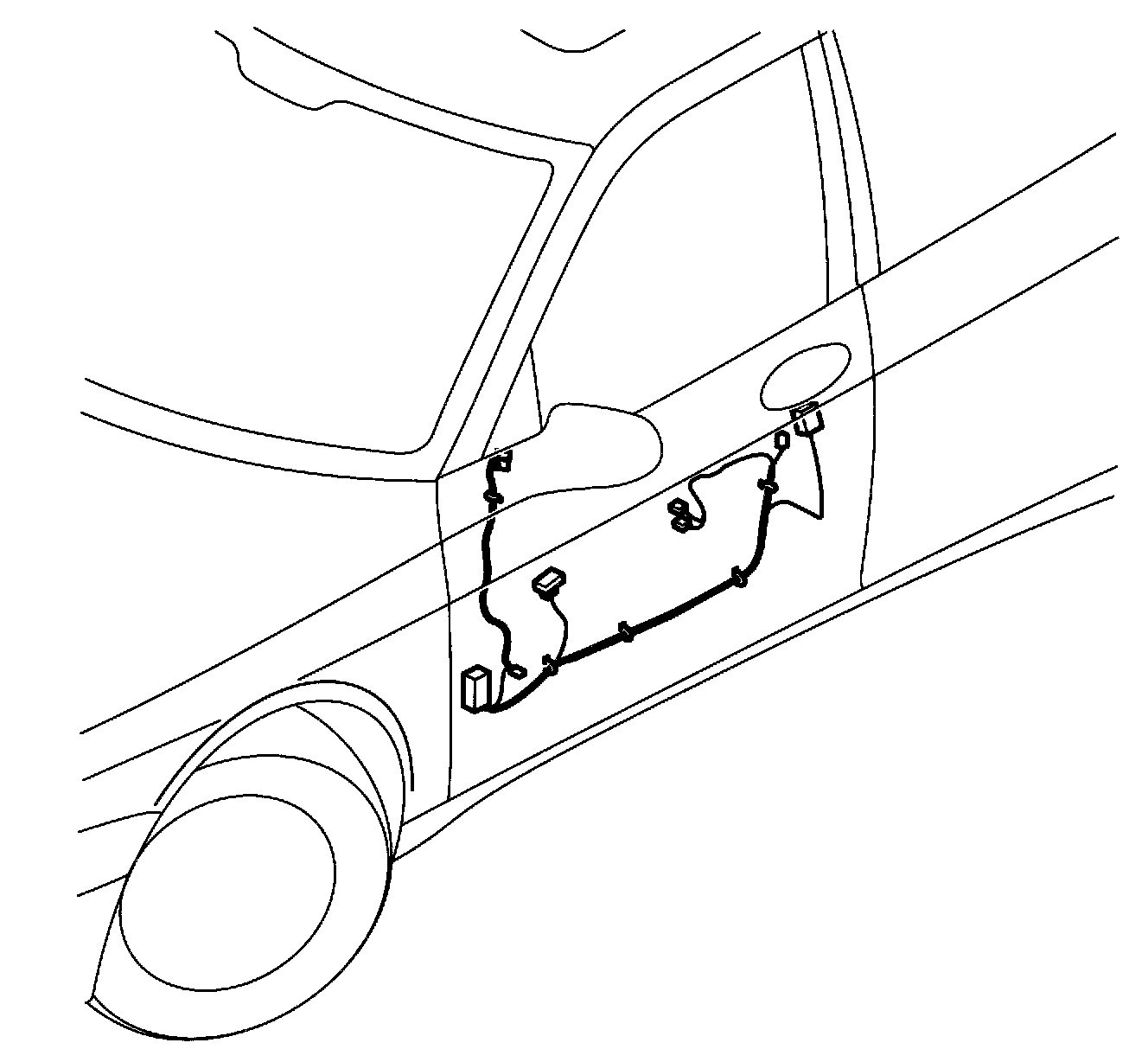

Driver's Door Wiring Harness

Driver's door wiring harness, associated components:

SMS Component name
124 Switch, electrically adjustable door mirror
126D Motor, electrically adjustable door mirror, driver
146D Motor, electric window lift, driver
184D Motor, central locking, driver
209D Lamp, courtesy light, driver
266D Loudspeaker, front door, driver
328D Impact sensor, driver's door
388 Switch, boot lid
623 Switch, filler cap lock
H42-1/3 Connector
