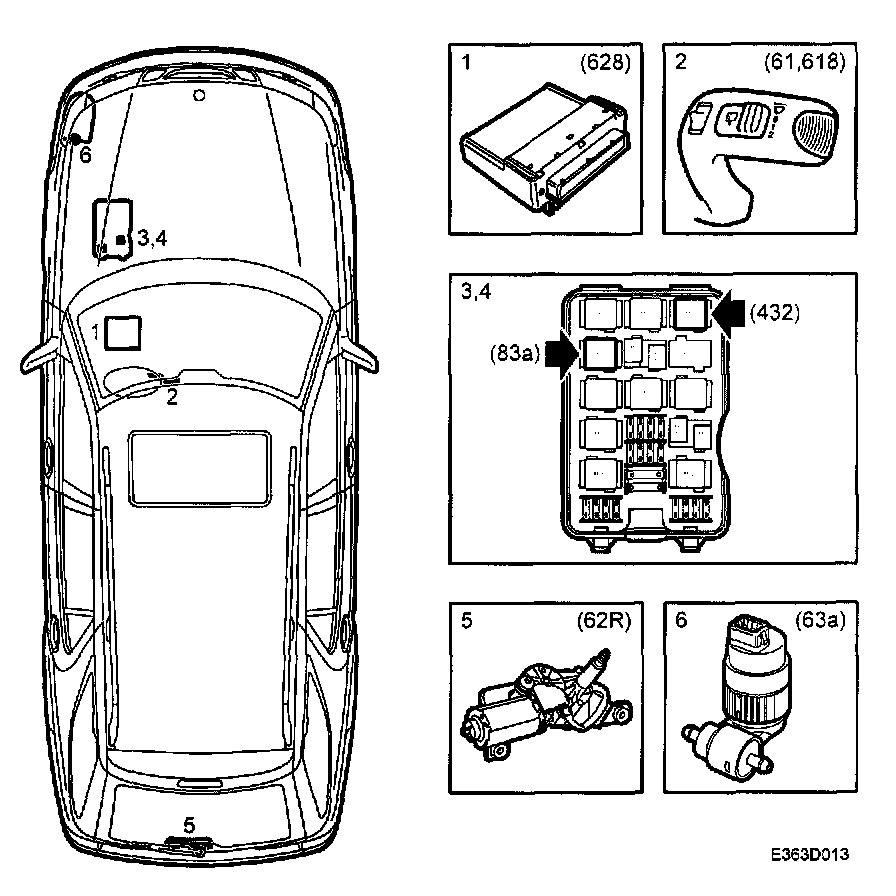

Main Components, Rear Window Wiper

Main components, rear window wiper, (5D)





1. DICE (628)
2. Windscreen wiper switch (61, 618)
3. Relay, intermittent wiper (83)
4. Washer fluid pump relay (432)
5. Rear window wiper motor (62R)
6. Washer fluid motor (63a)
