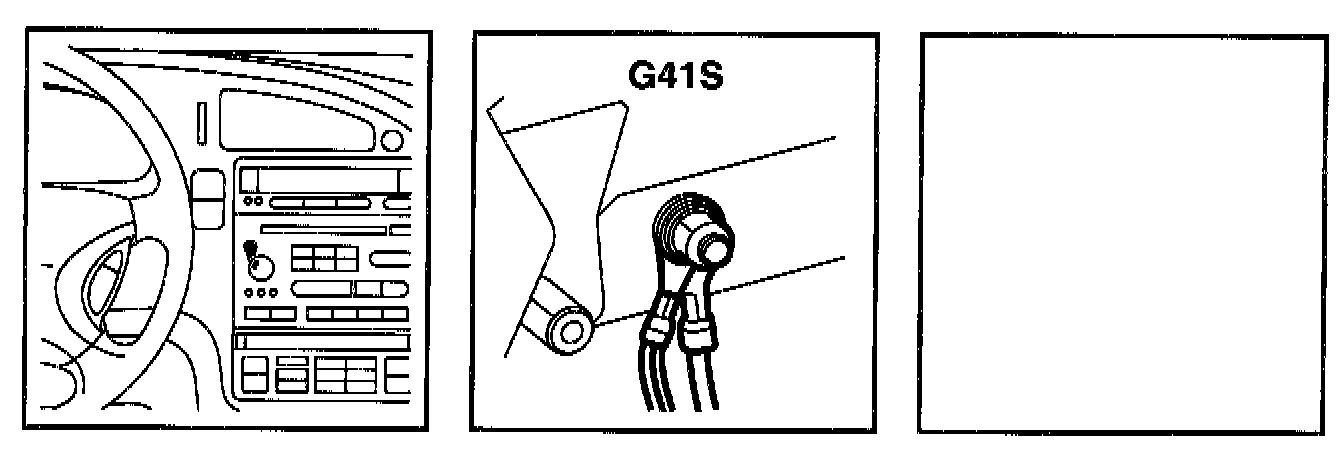

Ground Point G41S

The following components are connected to grounding point G41S LH ground screw on centre of knee member (in compartment):

540 Main instrument unit

Via crimp J41

91 Lamp, selector lever position indicator (to Rev-1)
386 Switch unit, electric window lifts/electrically operated sunroof (from Rev.1)
439 Solenoid, selector lever, SHIFT LOCK (to rev-1)
445 Data link connector, 16-pin, CARB
506 WINTER switch
535 Transmission fluid temperature sensor
541 SID
